| Brand | Safire |
| Type | Polyester cabinet with switch and power supply included |
| Security | Double key lock |
| Power supply input | Entrada <100VDC (voltaje suministrado por placa solar no incluida, panel de 60V recomendado o 2 paneles de 30V DC en serie) |
| Enchufe | x2, Europeo tipo F |
| SPD transitorias | xSPD 2P, AC380V, 20KA |
| Disyuntor | Disyuntor MCB, 1P, DC220V, 16A, tipo C + 1P,DC220V, 16A, tipo C |
| Salida DC | 3x 12V DC, Máx. 240W (entre las 3 salidas) |
| Ventilador | 1x 12V DC |
| Luz | DC 12VLed interno para mantenimiento en nocturno. Se enciende cuando se abre la puerta |
| Sensor de puerta | Sí |
| Switch Ethernet | xSwitch 8*10/100/1000M PoE (2*puertos 90W, 6*puertos 30W) + 2*1000 SFP, L2 administrado |
| Entrada de alarma | 3 entradas, contacto seco*Entrada 1 usada por defecto para el contacto de puerta |
| Puerto de red modulo inteligente | 1 x 10/100Base-TX |
| Botón de reset | > Pulsación larga de 5 s: restore factory settings |
| Converter | DC converter 48 V to DC 12 V |
| Charge controller | Maximum input voltage 100 V, battery support DC12 V/24 V/48 20 V, charging current [%VAR%] A |
| LCD screen | Yesze: 2,5 inch LCD display |
| Fiber fusion tray | 4 x SC (connector) |
| Working temperature | -20?~70? |
| Storing temperature | -40?~85? |
| Humidity | 0~90% no condensation |
| External dimensions | 800 (H) x 600 (W) x 300 (D) mm |
| Material | SMC (fiberglass-reinforced polyester resin) |
| Colour | White |
| Net Weight | 22Kg |
| Management software | Si |
| Consumption | Self-consumption < 20W, output < PoE180W max. |
| Extended PoE | Included |
| Ports | Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compliant with IEEE8025.3af/at); Ports 3-8: 10/100/1000Base-T, 30 W, PoE RJ45 (IEEE802.3af/at) [%VAR%] |
| SFP | Ports 9~10, SFP slots 1000Base-X |
| Switching Capacity | 20Gbps |
| Bandwidth | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Protection | Overvoltage: 6 kV, standard: IEC61000-4-5ESD: 6 kV: contacto/8 kV: air, standard: IEC61000-4-2 |
| System configuration | Date and timeUser administrationSecurity management (http, SNMP, telnet, SSH)Configuration files (export/import)FirmwareSystem (restart, default) |
| Port configuration | StatePort speedTraffic controlStorm control (broadcast, interval, unicast, multicast)Port protectionMAC LearningTrunk portsMirror PortsDHCPIGMP snoopingVLANLACPLLDPLoopback detectionMAC VLANVLAN mappi |
| MAC | MAC LinkAuto linkMAC filterBridge |
| VLAN | Working mode (access, trunk, hybrid)Default VLANMember tagued |
| SNMP configuration | SNMP community (community name, read, write)TRAP (SNMP version V1, V2C, V3) |
| ACL configuration | Standard IP (Groups, source IP, wildcard, mathematical data packets)Extended IP (Groups, Source IP, Source wildcard, Destination IP, Destination wildcard, Protocol, Source port)IP MACMAC ARPACL Refere |
| QoS configuration | QoS ApplicationQoS AgendaIP AddressARPHost static route |
| AAA configuration | Tacacs+RadiusAuthentication 802.1X |
| STP configuration | MSTPSTP port |
| IGMP Snooping Configuration | Available |
| GMRP configuration | GMRP GlobalGMRP PortsGMRP Registration |
| EAPS configuration | EAPS |
| RMON configuration | StatisticsHistoryAlarmEvents |
| Cluster management | NDPNTDPCluster |
| Log information | LogSyslog |
| POE power control | TypeAdmin statusTotal energyPOE PolicyPD Query |
| DHCP | DHCP Snooping |
| ERPS configuration | ERPSERPS ring 1~21 |
| LACP | lACP active links |
| Line | Vty |
| LLDP | GlobalHold multiplierTimer |
| Loop detection | Detection timeProtocolResponse packagesResponse time |
| MVR | GroupsVLAN |
| OAM | Frame with errorPeriodSeconds |
| Redundant port | ForcedPrimary port |
| UDLD | EnableSchedule |
| VLAN protocol | ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdis |
| CFM | CCEnableLinktraceMAMDRule-mipService-instance |

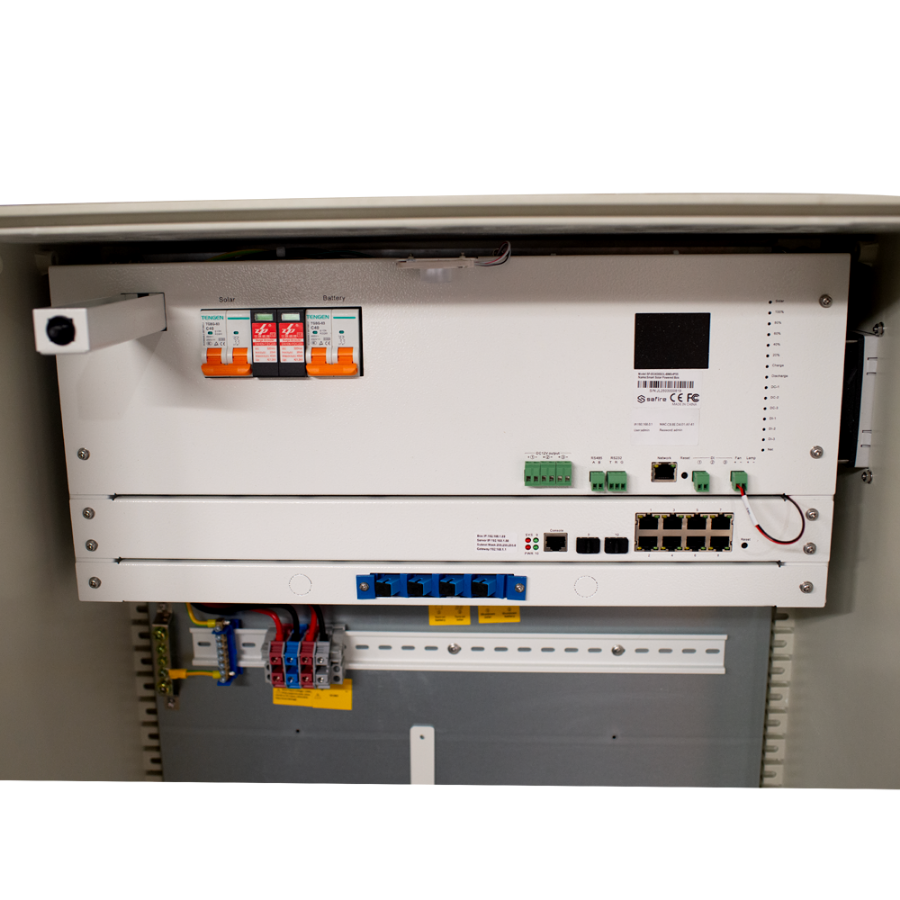

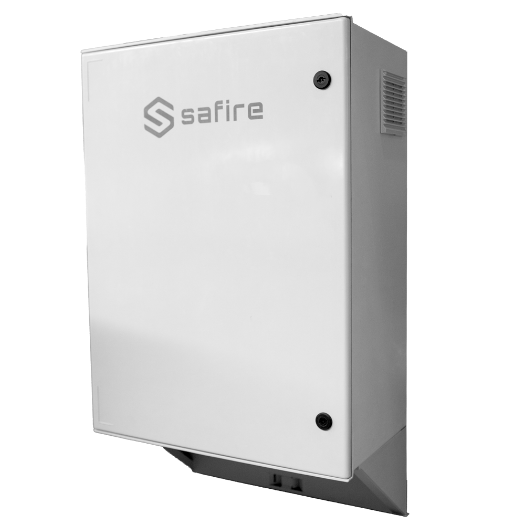

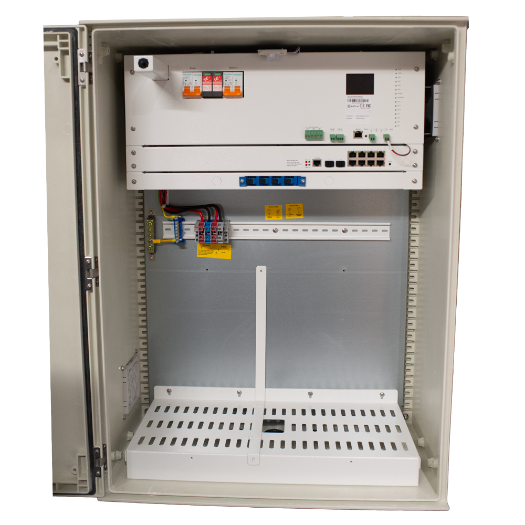

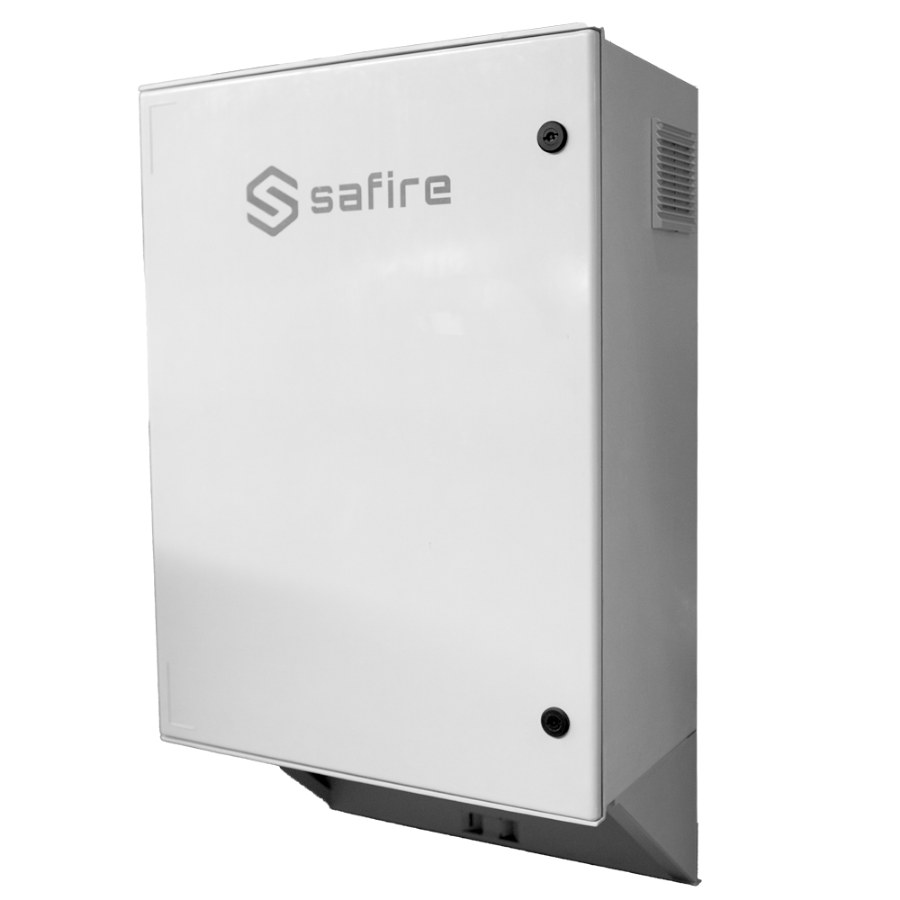

Intelligent cabinet for installations where there is no mains connection and light. Solar version with fast charging 17 ampere hour connected to recommended Lithium battery (48V 100A) recommended for poles, intelligent module integrated with main electrical protections (MCB and SDP), POE switch L2 with 2 HIGH POE sockets with SAFIRE logo. Additional application for carton weight. Solar panel 60V NOT INCLUDED.
