| Brand | Safire |
| Type | Polyester cabinet with switch and power supply included |
| Security | Double key lock |
| Power supply input | AC 100~240V, 50/60Hz |
| Fiber fusion tray | Yes |
| Plug | Yes, European type F |
| AC output | 1x AC output remotely controlled via software.The management software supports voltage and current value control |
| DC output | 3x 12V DC, Max. 240W (between the 3 outputs) |
| Fan | 1x 12V DC |
| Light | DC 12VInternal Led for night maintenance. Lights up when the door is opened |
| Door sensor | Yes |
| Contactor | AC 2P16A, installed on din rail |
| Surge protection | AC protection, 385 V AC @ 20 KA 2P, -40 ~ 70 ?Rated discharge current 20 KA (8/20 µS), Maximum discharge current 40 KA (8/20 µ S) Restricted voltage ? 1,8 KV, with remote alarm function in software |
| Ethernet Switch | 1~8 10/100/1000M Base-T RJ459~10 1000M SFP |
| Serial port | RS485 / RS232 |
| Alarm input | 3 inputs, dry contact*Input 1 used by default for the door contact |
| Management software | Yes |
| Management controller | Reset button1x RJ45 10/100M Baste-TX8 status LED indicators |
| Material | SMC (fiberglass-reinforced polyester resin) |
| UPS | Yes (Backup battery installation of 12V) |
| Working temperature | -20?~70? |
| Storing temperature | -40?~85? |
| Humidity | 0~90% no condensation |
| External dimensions | 600 (H) x 500 (W) x 230 (D) mm |
| Colour | White |
| Net Weight | 15Kg |

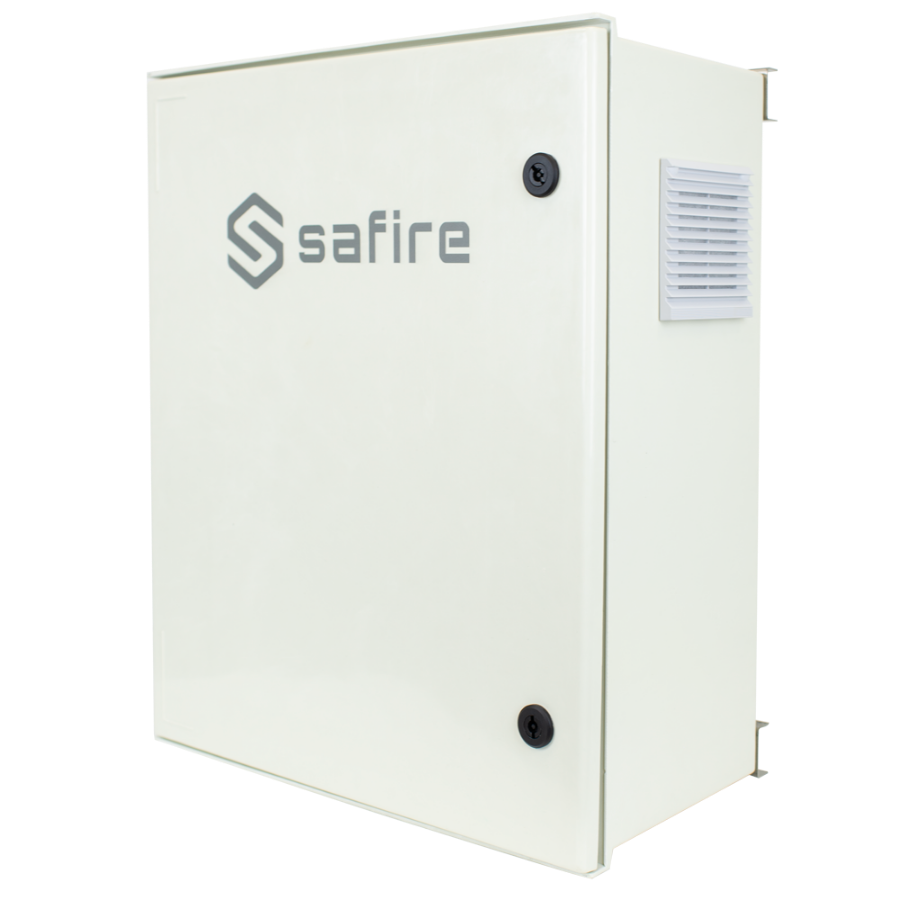

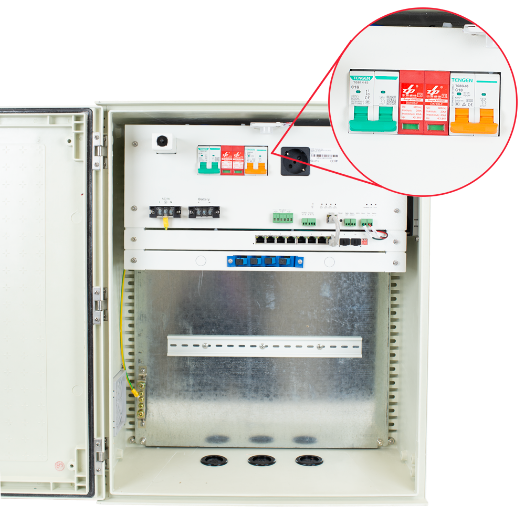

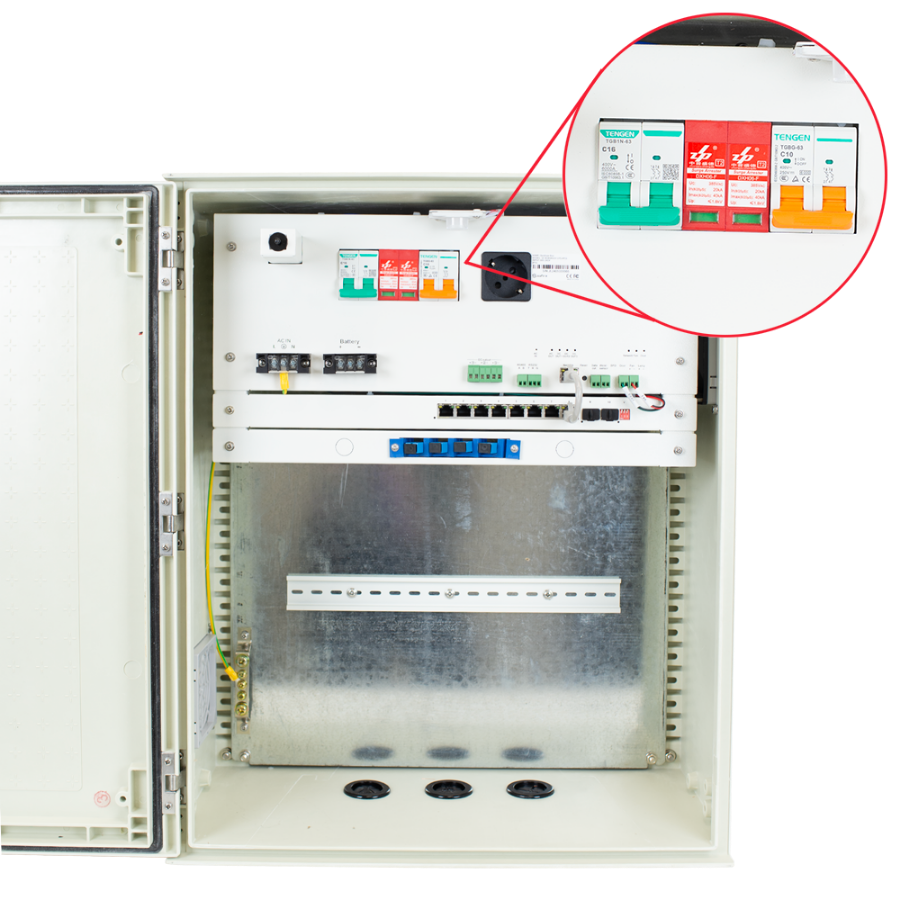

Intelligent switch cabinet with the possibility of connecting an AGM backup battery of 12 volts. Free monitoring software, 8 port switch, 3 12V 3 amps per port and fiber patch panel. Door sensor with automatic LED internal illumination and double locking. DIN rail for attachment of additional devices
