| Brand | Safire |
| Model | SF-AC105-MF |
| Capacity | Up to 10.000 cards |
| Identification modes | Card |
| Proximity card | MF 13.56 MHz |
| Inputs/outputs | NO/NC relay and push button |
| Communication | Wiegand 26 |
| Special functions | Anti-passbackOperation as a stand-alone terminal or as a readerMonostable or bistable relay operation |
| Power | DC 12 V |
| Consumption in idle mode | ? 30 mA |
| Degree of protection | Suitable for exterior IP68 |
| Temp. operation | -45 oC ~ +60 oC |
| Dimensions | 56 (W) x 115 (H) x 22 (D) mm |
| Weight | 450 g |

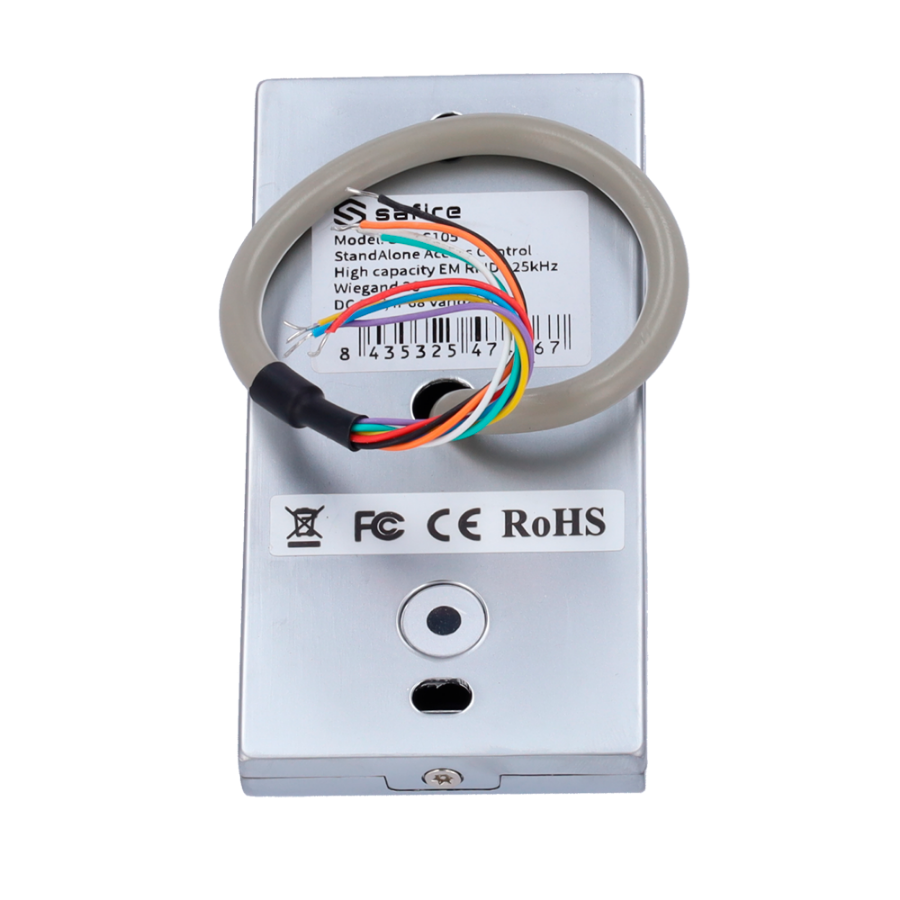

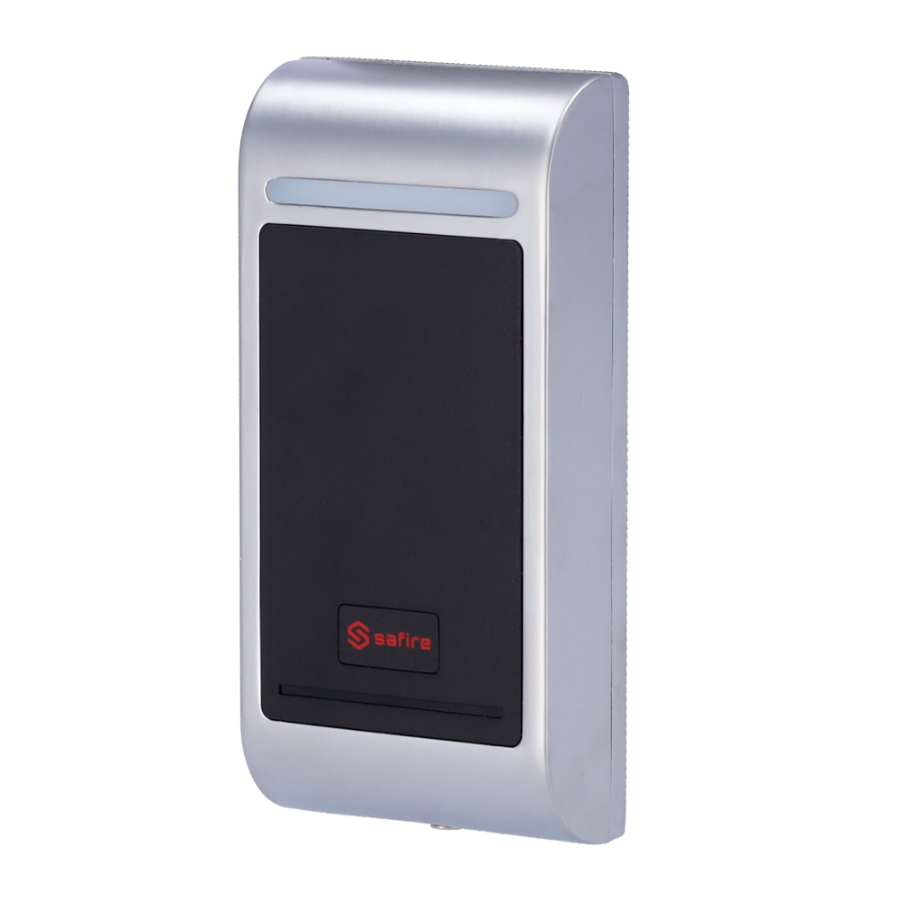

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.
This equipment allows identification through cards or key fobs with MF technology of 13.56 MHz.
Advanced configurable functions: anti-pass-back technology (does not allow a person to pass through if he/she is already inside).
Its exterior grade IP68 allows it to be installed outdoors.
The configuration of users, credentials, as well as special functions, relay opening times or reader reading time, can be configured locally from the equipment itself.
