| Brand | Safire |
| Model | SF-AC104 |
| Capacity | Up to 2.000 cards/passwords |
| Identification modes | Card, PIN and combinations |
| Proximity card | RFID EM 125 kHz |
| Outputs | NO/NC relay and push button |
| Communication | Wiegand 26 |
| Special functions | Operation as a stand-alone terminal or as a readerMonostable or bistable relay operation |
| Power | DC 12 V |
| Consumption in idle mode | ? 30 mA |
| Degree of protection | Interior |
| Temp. operation | -40 oC ~ +60 oC |
| Dimensions | 73 (W) x 96 (H) x 20 (D) mm |
| Weight | 200 g |

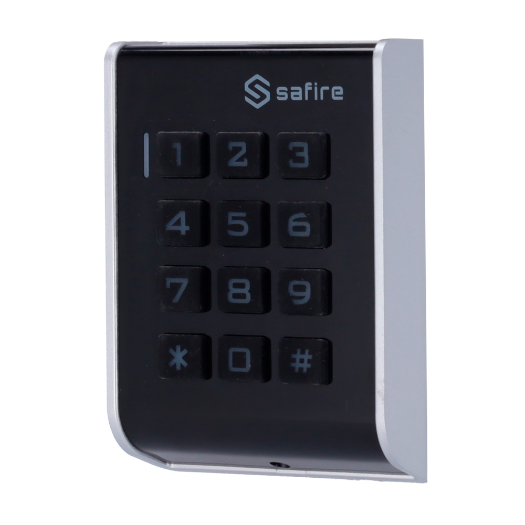

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.

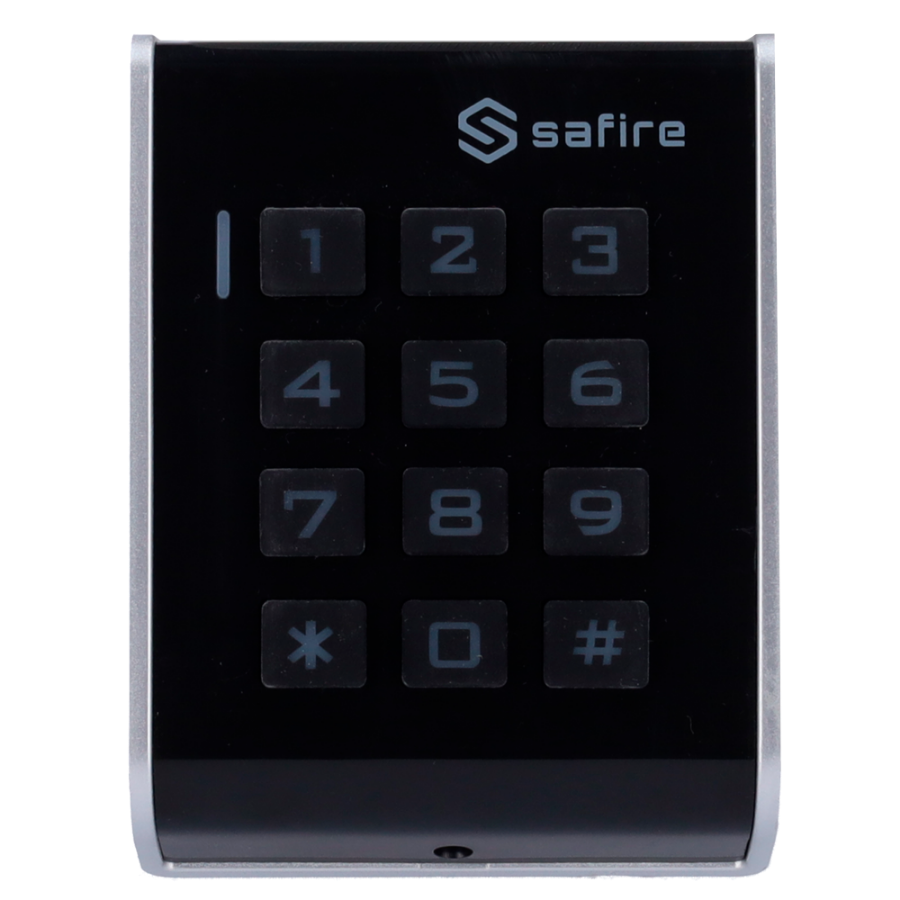

This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, as well as a keypad for numeric codes.
The configuration of users, credentials, as well as special functions, relay opening times or reader reading time, can be configured locally from the equipment itself.
