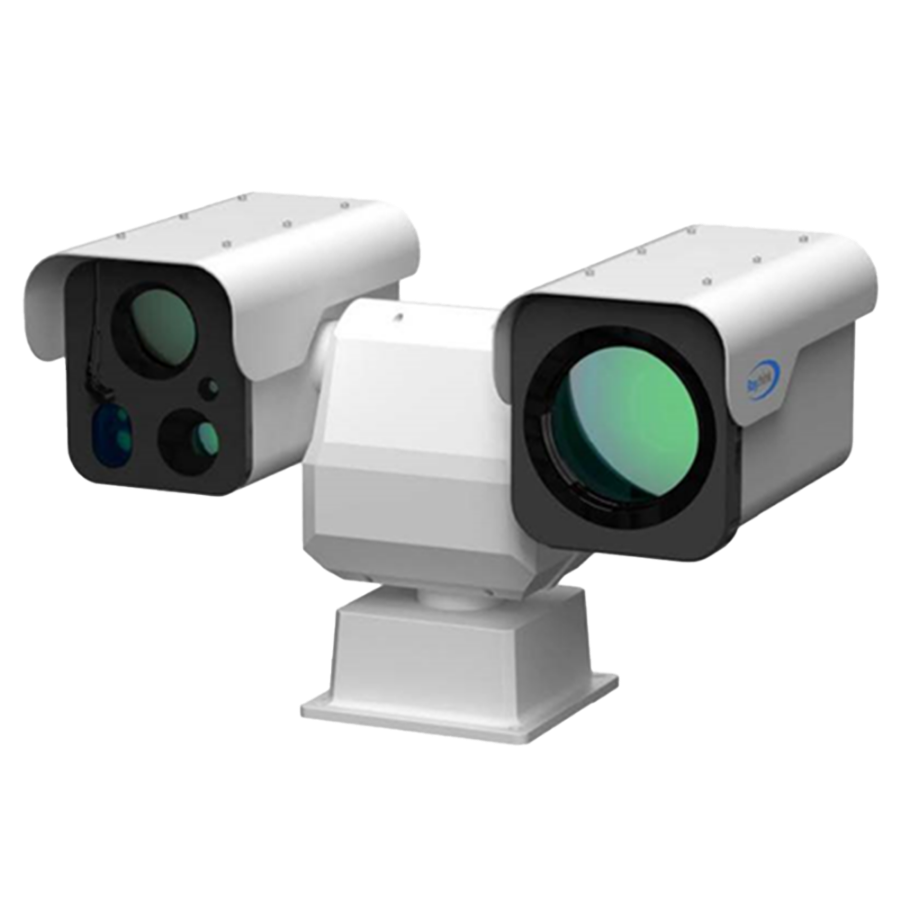

| Brand | Raythink |
| Range | PC5 |
| Thermal sensor | 1280x1024 VOx uncooled 12µm |
| Spectral range | LWIR 8 ~ 14µm ~ [%VAR%] |
| Thermal sensitivity | ?40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.8" CMOS 4Mpx |
| Main Stream rate | 2688×1520, 1920×1080, 1280×720 (25ips) visible1280×1024, 1280×720, 1024×768 (25ips) thermal |
| Extra Stream rate | 1920×1080, 1280×720, 704×576, 352×288 (25ips) visible640×512, 384×288 (25ips) thermal |
| Compression | H.265 / H.264 / MJPEG |
| Laser illuminator | Laser spectral range: 808nmScope of illumination: 800m. (1500m. optional) |
| Laser distance meter | Laser spectral range: 905nm (1535nm optional)Measuring distance: 2km. (3km., 6km. optional) |
| Lens | Motorized Autofocus 30~150mm (therm.) 5X / Motorized Autofocus 10~550mm (vis.) 55X |
| Angle | Horizontal: 28.7o~5.9o (term.) / H: 58o~1.2o (vis.) |
| Pan/Tilt Range | Horizontal: 0°~360° (without end), Vertical: -90°~+90° |
| Manual speed | Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s |
| Detection ranges | Human detection (1.8x0.5 m): 6.3KmDetection of vehículo(4x1.4 m): 19.2KmHuman Recognition (1.8x0.5 m): 1.6KmVehicle recognition (4x1.4 m): 4.8KmPerson ID (1.8x0.5 m): 0.8KmVehicle identification (4x1 |
| Intelligent functions | Fire detectionIntrusion detection: line crossing, area entrySynchronized zoom |
| Audio | 1 Input / 1 Output |
| Alarm | 1 input / 1 output |
| Internal memory | Micro SD card up to 512GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power | 48VDC / 300W |
| Temp. operation | -40oC~+70oC |
| Degree of protection | Weatherproof IP66TVS 6000V lightning protection |
| Dimensions | 623.6mm x 398.5mm x 350mm (width x height x depth) |
| Weight | 30Kg. |
