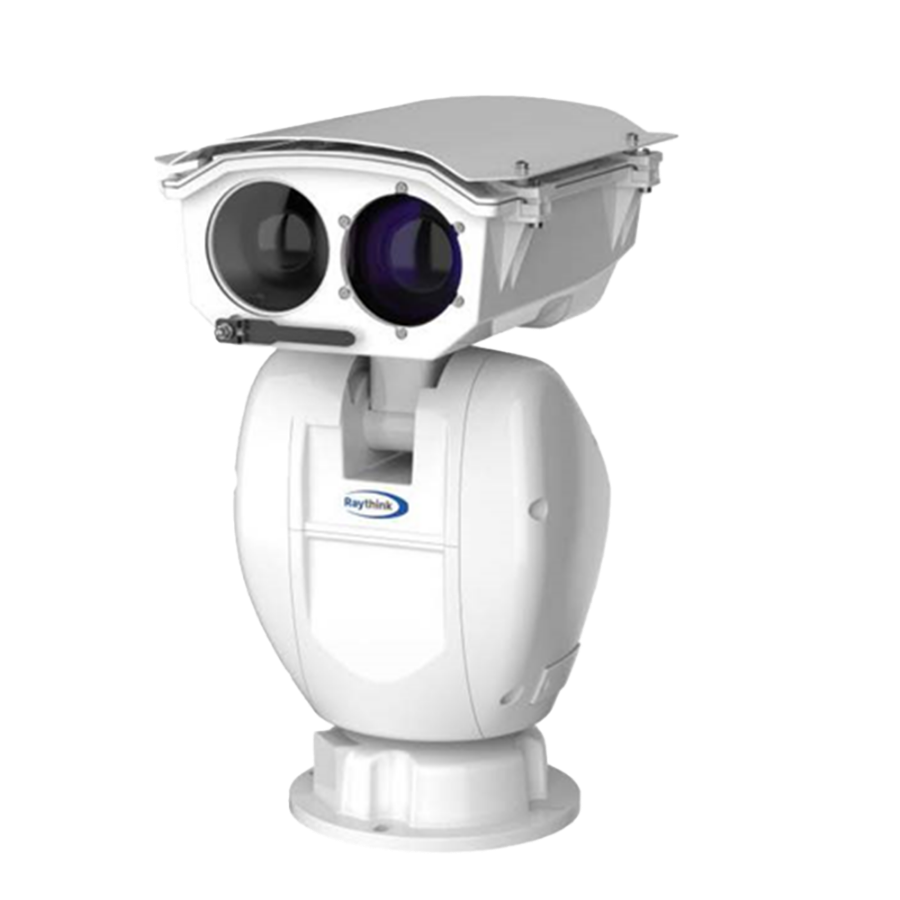

| Brand | Raythink |
| Range | PC4 |
| Thermal sensor | 1280x1024 VOx uncooled 12µm |
| Spectral range | LWIR 8 ~ 14µm ~ [%VAR%] |
| Thermal sensitivity | ?40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.8" CMOS 4Mpx |
| Main Stream rate | 2688×1520, 1920×1080, 1280×720 (25ips) visible1280×1024, 1280×720, 1024×768 (25ips) thermal |
| Extra Stream rate | 1920×1080, 1280×720, 704×576, 352×288 (25ips) visible640×512, 384×288 (25ips) thermal |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 75mm (term.) / Motorized Autofocus 6~300mm (opt.) 50X |
| Viewing angle | Horizontal: 5,9o (term.) / H: 66o~1.4o (opt.) |
| Pan/Tilt Range | Horizontal: 0°~360° (without end), Vertical: -90°~+40° |
| Manual speed | Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s |
| Detection ranges | Human detection (1.8x0.5 m): 3.1KmDetection of vehículo(4x1.4 m): 9.6KmHuman Recognition (1.8x0.5 m): 0.8KmVehicle recognition (4x1.4 m): 2.4KmPerson ID (1.8x0.5 m): 0.4KmVehicle identification (4x1. |
| Intelligent functions | Fire detectionIntrusion detection: line crossing, area entry |
| Audio | 1 Input / 1 Output |
| Alarm | 7 inputs / 2 outputs |
| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power | 24VDC / 75W |
| Temp. operation | -40oC~+70oC |
| Degree of protection | Weatherproof IP66TVS 6000V lightning protection |
| Dimensions | 250mm x 472mm x 360mm (width x height x depth) |
| Weight | 14Kg. |
