| Video resolution (HDMI) | 4K@604K@59.944K@504K@304K@29.974K@251080p@601080p@59.941080p@501080p@30108p@29.971080i@601080i@59.941080i@50720p@60720p@59.94 |
| Sensor | 1/2.8" CMOS8.46MP |
| Scanning mode | Progressive |
| Lens | 12X Optical zoomf3.47mm ~ 41.65mmF1.84 ~ F3.72 |
| Digital zoom | 16x |
| Minimal illumination | 0.5Lux @ (F1.8, AGC ON) |
| Trigger | 1/30s ~ 1/10000s |
| White balance | AutomaticInteriorEXTERIOROne touchManual |
| Backlight compensation | Yes |
| Digital Noise Networkucer | 3D |
| Video S/N ratio | ?55dB |
| Viewing angle | - Horizontal: 80.8o ~ 7.5o- Vertical: 49.9o ~ 4.3o |
| Swivel range | - Horizontal: ±170o- Vertical: -30o ~ +90o |
| Rotational speed | - Horizontal: 1.7o ~ 100o/s- Vertical: 1.7o ~ 69.9o/s |
| Image rotation | Horizontal and vertical |
| Image freezing | Yes |
| Presets | 255 (accuracy of 0.1o)) |

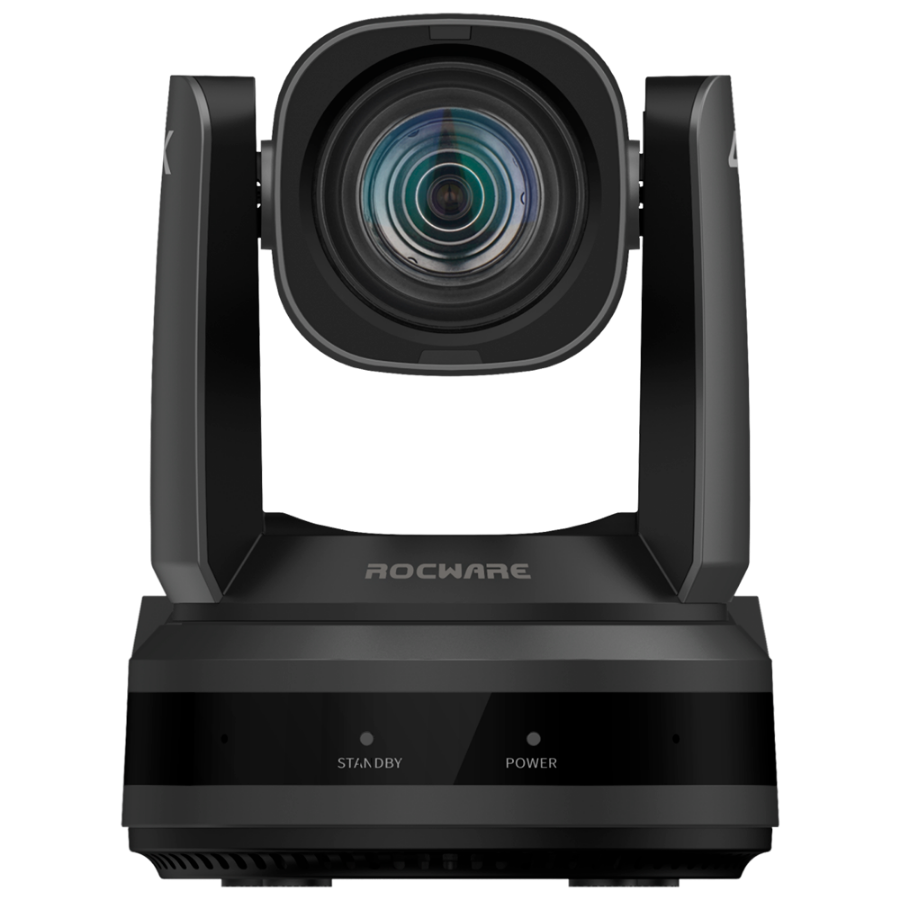

| LED indicators | - Tally- Standby- Power supply |
| Video compression | H.264 / MJEPG |
| Video stream | MainSecondary |
| Main video stream resolution | 3840x21601920x10801280x7201024x576... |
| Secondary video stream resolution | 720x480320x240... |
| Video Bit Rate | CBR, VBR- Principal: 32Kbps ~ 51200Kbps- Secondary: 32Kbps ~ 20480Kbps |
| Frequency | 50Hz: 1fps ~ 50fps60Hz: 1fps ~ 60fps |
| Audio Compression | AAC |
| Audio bit rate | 96Kbps128Kbps |
| Supported protocols | NDI | HX2SRTTCP/IPHTTPRTSPRTMP(s)OnvifDHCPGB/T 28181Multicast... |
| Compatibility | Windows 8Windows 10Mac OS XLinuxAndroid |
| Color compression | YUY2H.264MJPEG |
| Audio | Yes |
| Video format | - YUYV2: Max 1080p@30- MJPEG: Max 4K@30- H.264: Max 4K@30 |
| Image frequency | 1fps ~ 30fps |
| Video communication protocol | UVC 1.1 |
| Control via UVC | Yes (PTZ) |

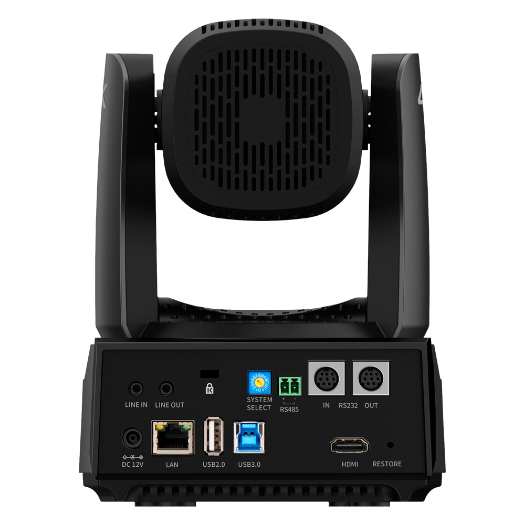

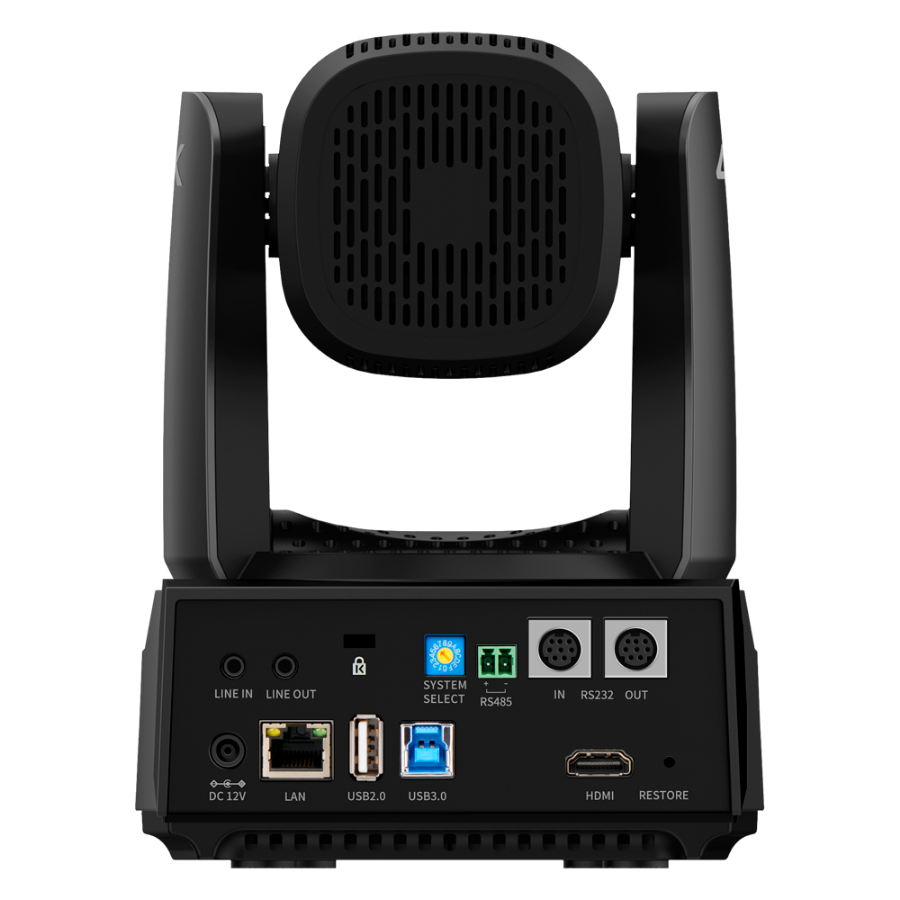

| USB | 1 x USB-B 3.01 x USB-A 2.0 |
| HDMI Out | 1 x HDMI 2.0 |
| Red | 1 x RJ45 (10/100/1000Mbps) |
| Audio | 1 x Line IN (Jack 3.5mm)1 x Line OUT (Jack 3.5mm) |
| Communication | 1 x RS485 (Phoenix 2 pin, max. distance 1200m, protocols: VISCA/Pelco-D/Pelco-P)1 x RS232 IN (8 pin Mini DIN, max. distance 30m, protocols: VISCA/Pelco-D/Pelco-P)1 x RS232 OUT (8 pin Mini DIN, max. di |
| Power | 1 x DC IN 12V |
| Security lock | Yes |
| System selection switch | Yes |
| Reset button | Yes |
| Power | DC 12V 1.0A (Max.)PoE+ (802.3at) |
| Working temperature | 0oC ~ 40oC |
| Storing temperature | -40oC ~ 60oC |
| Maximum consumption | 18W |
| Dimensions | 142.5mm (W) x 188.3mm (H) x 151.9mm (D) |
| Weight | 1.56Kg |
PTZ (Pan-Tilt-Zoom) cameras are motorized devices that allow you to move your lens in different directions and zoom remotely. They are usually connected as USB peripherals, which facilitates integration with computers and videoconferencing platforms without the need for special equipment.
They are ideal for online meetings because they allow you to automatically focus on the speaker or change shots without physically moving the camera. In addition, a single PTZ camera can cover an entire room, improving visual quality and making meetings more dynamic and professional.
