| Brand | Reolink |
| Model | NVS8 |
| Resolution | 4K+ Up to 12 PM |
| Audio / video input | 8 x PoE IP Camera (with audio) |
| Audio and video output | HDMI output(3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768)VGA output(1920x1080, 1280x1024, 1280x720, 1024x768)Audio output1 channel RCA |
| Video format | H.264, H.265 |
| Storage | SATA1 x SATA InterfaceCapacityUp to 12TB (2 x 6TB each hard disk)It includes2TB (installed) |

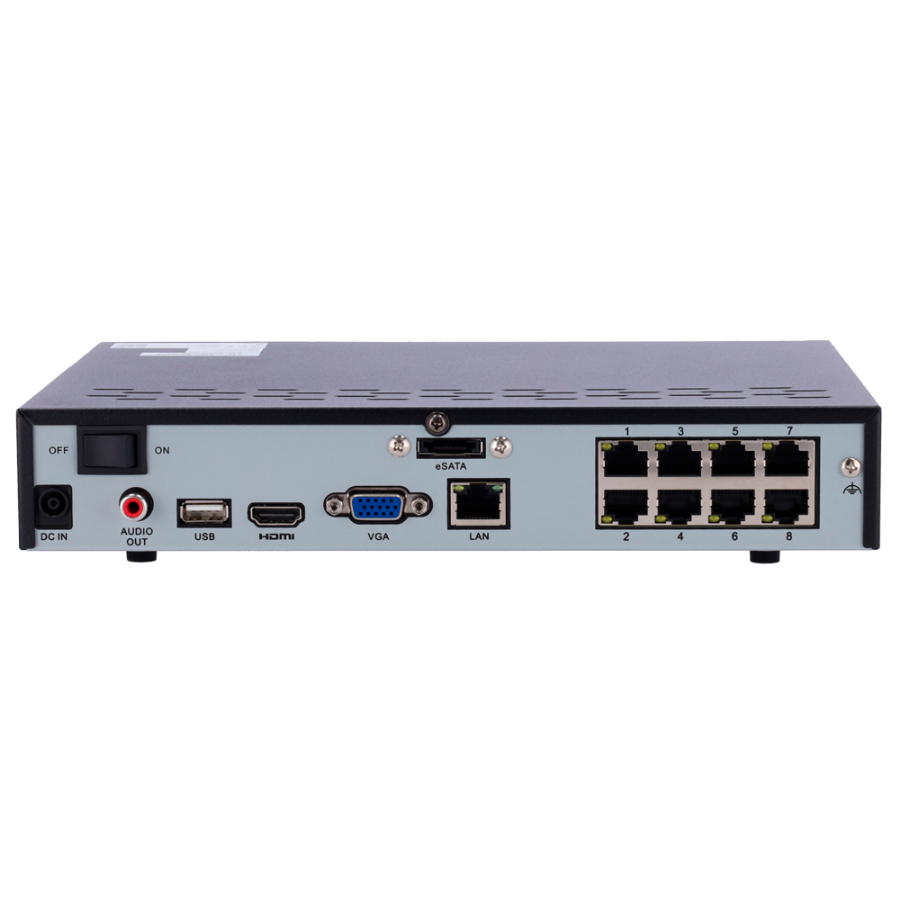

| External interface | - USB interface2 x USB 2.0- Network interface1 x RJ-45 10/100 Mbps LAN/WAN8 x RJ-45 10/100 Mbps PoE for IP Cameras |
| PoE | Maximum output per port 25WSupported IEEE standard 802.3af/at |
| Network communication | - Protocols supported(HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP)- Supported OSPC: Windows, Mac OS; smartphone: iOS, Android- Supported browsersEdge, Firefox, Chrome, |
| Power supply | Power supplyDC 48V~53V |
| Temp. Functioning | -10 ~ 45° C |
| Alimentación (cargador) | AC 5V/2A |
| Dimensions | 255 x 49.5 x 232 mm |
| Weight | 1.4 Kg |
