| Brand | Reyee |
| Wireless Standard | Wi-Fi 7 802.11be |
| Frequencies | 2.4 GHz, 5GHz, 6GHz |
| Wi-FI performance | Up to 688Mbps in 2.4GHzUp to 4323Mbps in 5GHzUp to 8646Mbps in 6GHz |
| Integrated antenna | 2x2 MIMO in 2.4 GHz 3.6dBi3x3 MIMO in 5 GHz 5.9dBi3x3 MIMO in 6 GHz 5.2dBi |
| WiFi Technologies 7 | MRU (Multi-Resource Unit)MLO (Multi-Link Operation)WIO 2.0 (Wi-Fi Intelligent Optimization)4K-QAM (Last generation modulation) |
| SSID | Up to 8 |
| Operating modes | Wireless access pointRouters with basic functionsCompatible with Reyee AP Mesh |
| Routing | Static IP, DHCP Server, PPPoE, NAT |
| Security | Isolated Wireless Clients, Block and Allow List.Authentication: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Management | Configuration via web or remote interface with Ruijie Cloud |
| Interface | 1 Port 2,5Gbps (2,5GBase-T) RJ451 10Gbps SFP+ Port |
| Functionalities | 802.1Q VLANPort-based VLANs802.11k/v/r, L2/L3 Roaming, AI RoamingAuthentication 802.1X |
| Power | PoE+ 802.3at 30W Suggested Hi-PoE 802.3bt (60W)DC 54 V/0.55 A |
| Maintenance and Diagnostics | Collection of failures in one clickActive alarm for DHCP server conflictsPacket sniffingSNMP V1, V2c, V3 |
| Network technologies | RLDPDHCP snoopingWireless flow control (WQoS)Load balancing between access pointsSame SSID for different VLANs |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 220 mm × 220 mm × 45mm (Without anchorage kit) |
| Weight | 1,1 Kg (excluding mounting kit) |

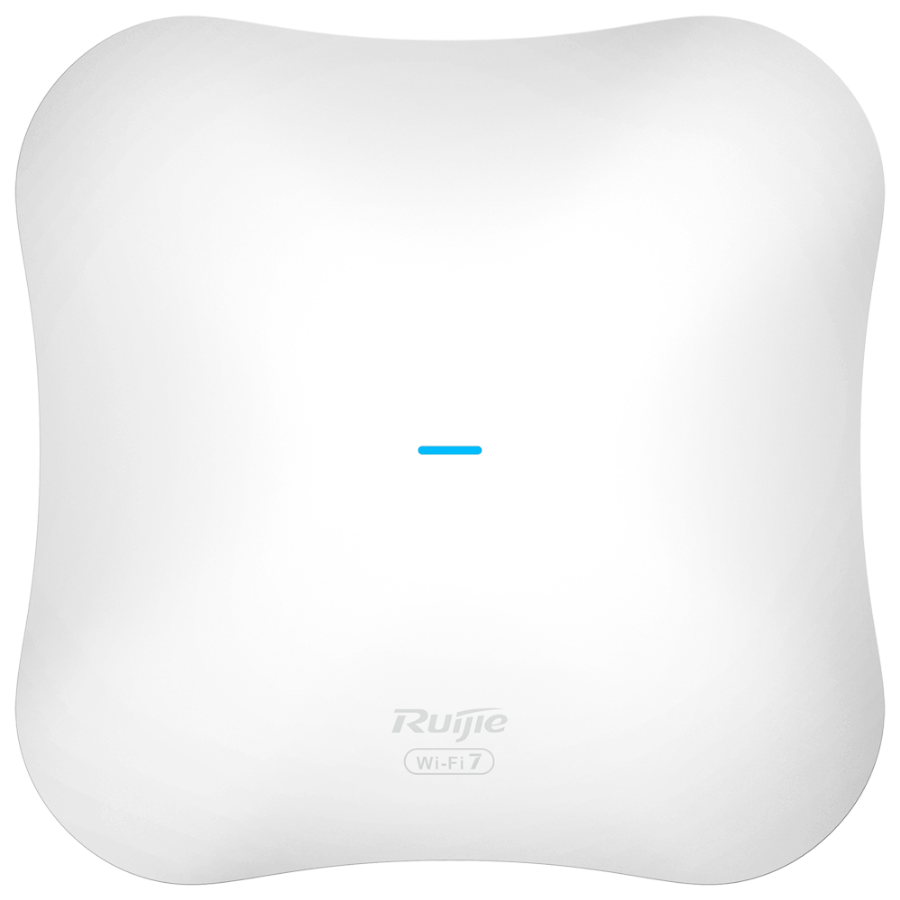

The RG-RAP73PRO is a high-performance Wi-Fi 7 access point designed to provide fast, reliable and wide coverage connectivity. It is ideal for corporate environments, offices or areas with high user density.
Among its main features are Wi-Fi innovations 7:
MLO: allows simultaneous use of the 2.4 GHz, 5 GHz and 6 GHz bands, improving speed and stability.
320 MHz channels, twice the bandwidth of Wi-Fi 6, for greater data capacity.
4K-QAM, which increases the amount of data transmitted per symbol compared to 1024-QAM of Wi-Fi 6.
Optimized use of the spectrum thanks to the Puncturing technique, which takes advantage of free parts of an occupied channel.
Compatibility with Wi-Fi 5 and Wi-Fi 6, devices ensuring a smooth transition for existing networks.
