| Brand | Reyee |
| Wireless Standard | Wi-Fi 7 802.11be |
| Frequencies | 2.4 GHz, 5GHz |
| Wi-FI performance | Up to 688Mbps in 2.4GHzUp to 4323Mbps in 5GHz |
| Integrated antenna | 2.4 GHz,2x2 MIMO 3,62dBi5 GHz,3x3 MIMO 6,28dBi |
| SSID | Up to 8 |
| Operating modes | Wireless access pointRouters with basic functionsCompatible with Reyee AP Mesh |
| Routing | Static IP, DHCP, PPPoE, NAT |
| Security | Isolated Wireless Clients, Block and Allow List.Authentication: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Management | Configuration via web or remote interface with Ruijie Cloud |
| Interface | 1 RJ45 Base-T port 10/100/1000/2500 Mbps |
| Functionalities | 802.1Q VLAN802.11k/v/r, L2/L3 Roaming, AI Roaming |
| Power | PoE+ 802.3at 30W |
| Operating temperature | -30 °C ~ 65 °C |
| Dimensions | 90 mm x 46 mm x 239 mm (Without anchorage kit) |
| Weight | 0,7 Kg (excluding mounting kit) |
| Technologies | MRU (Multi-Resource Unit)MLO (Multi-Link Operation)WIO (Wi-Fi Intelligent Optimization)4K-QAM (Last generation modulation) |

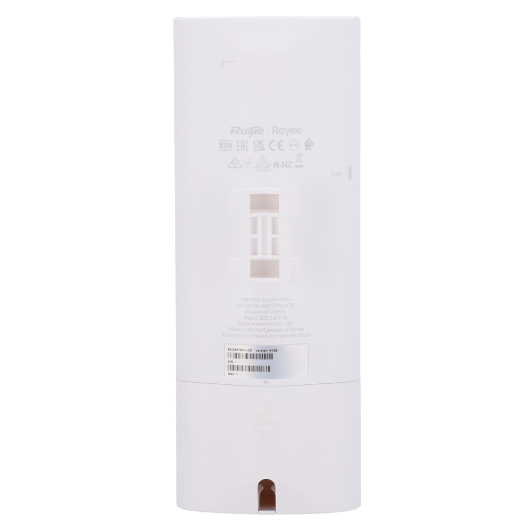

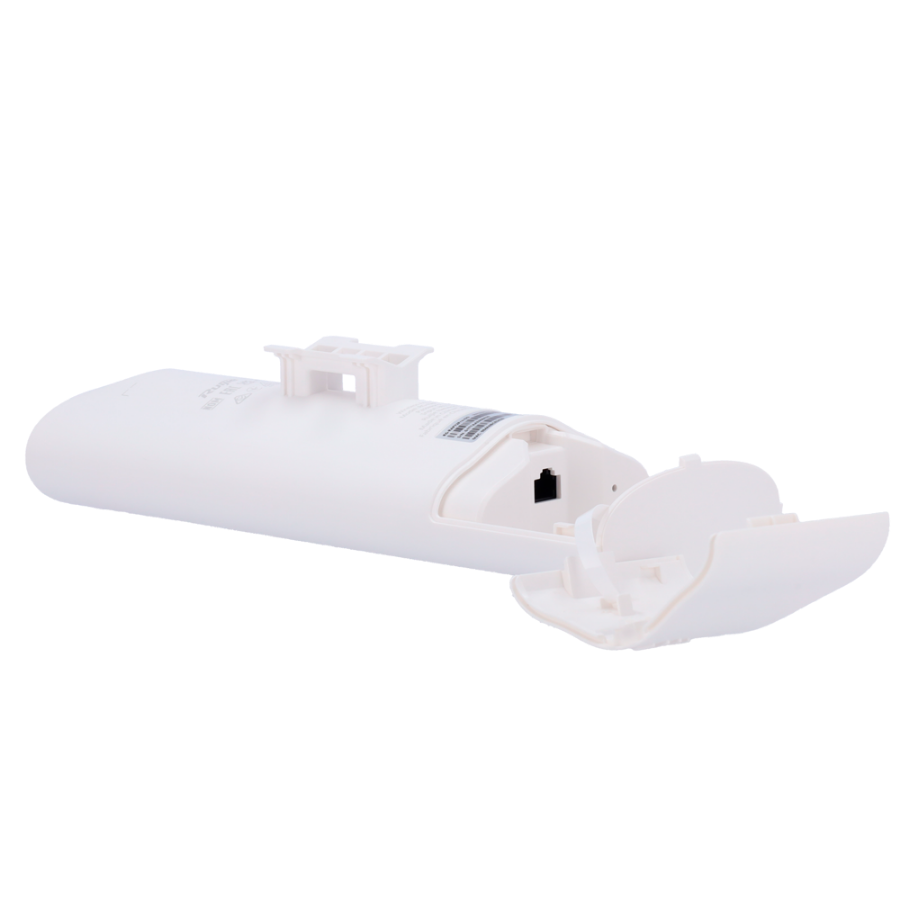

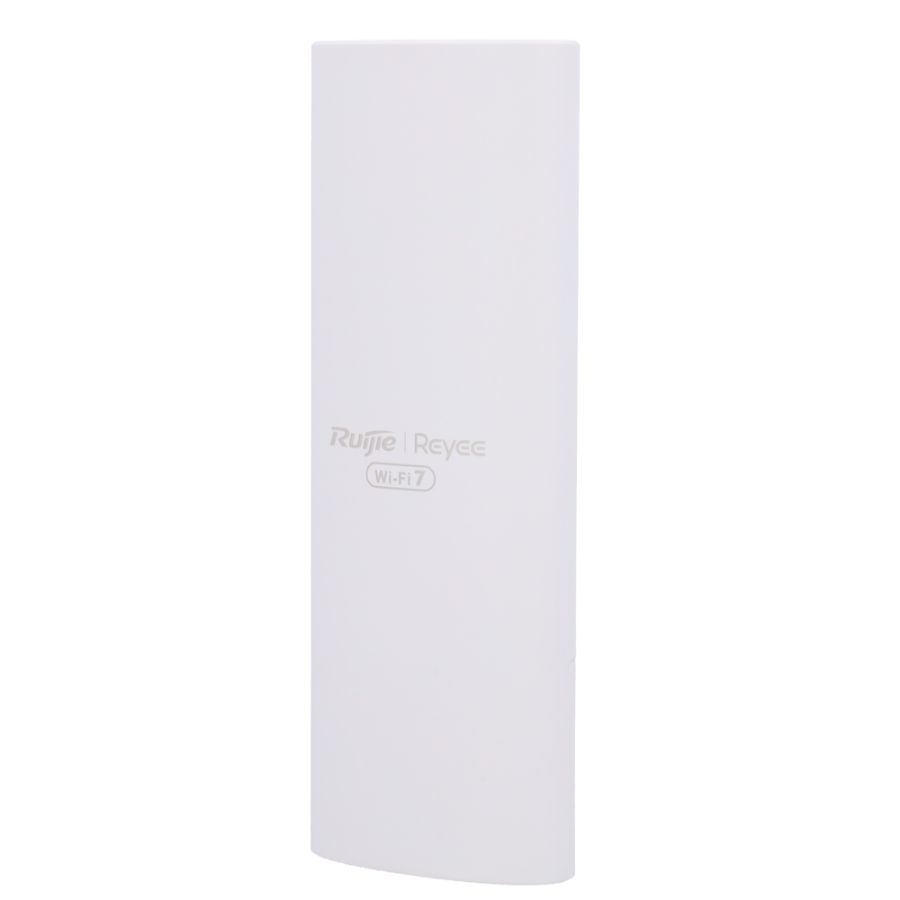

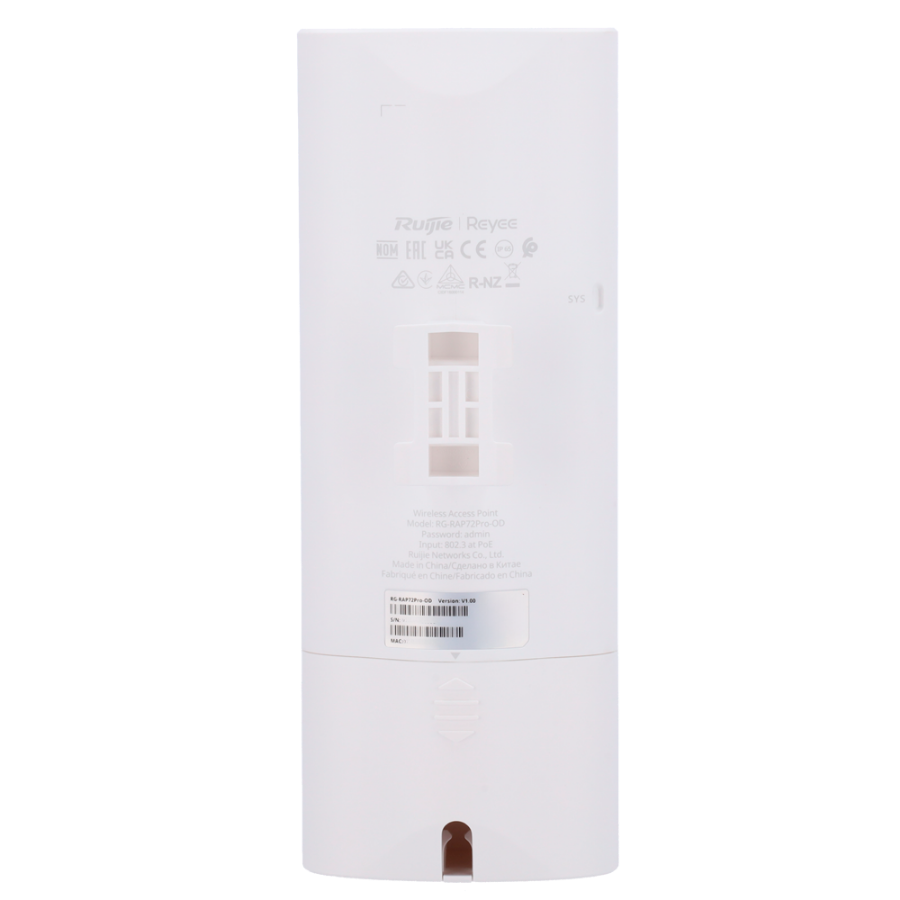

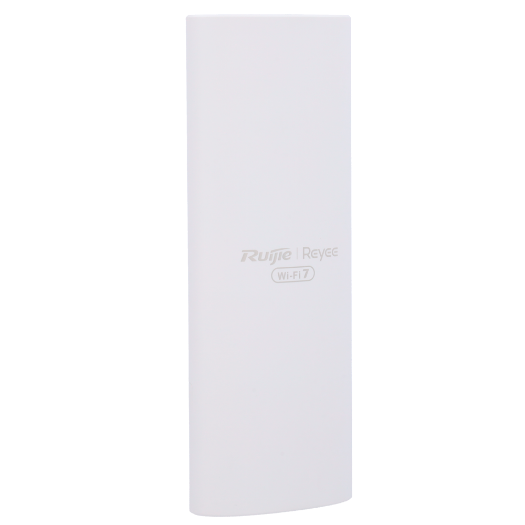

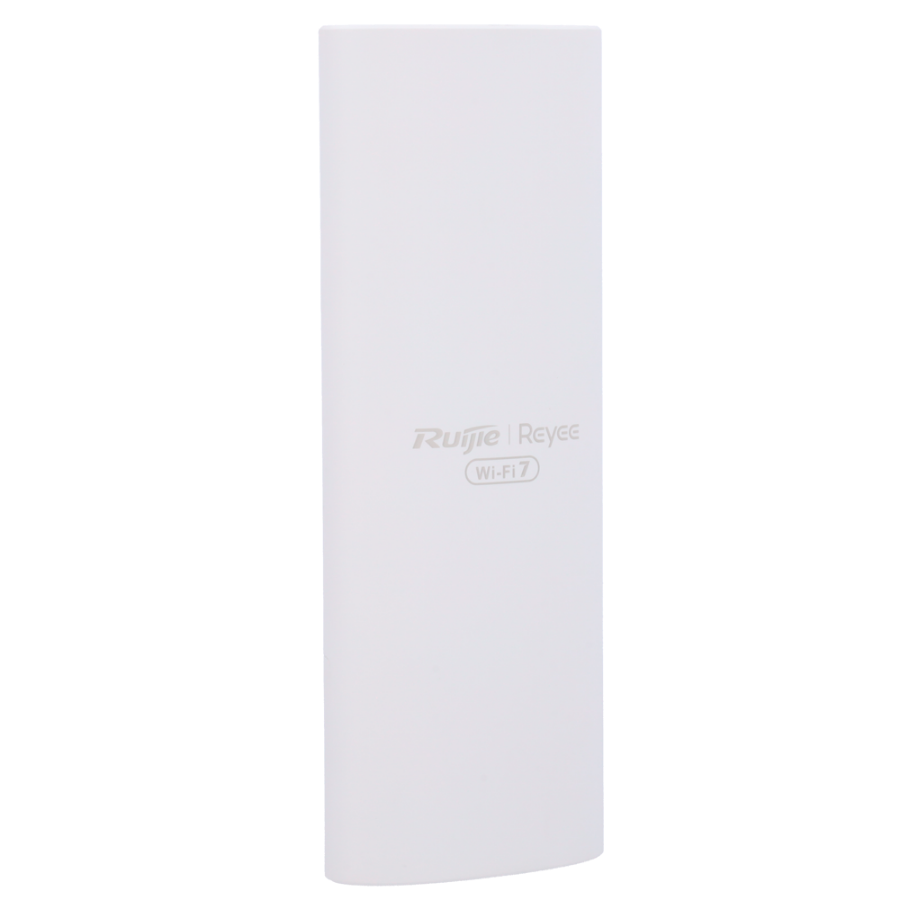

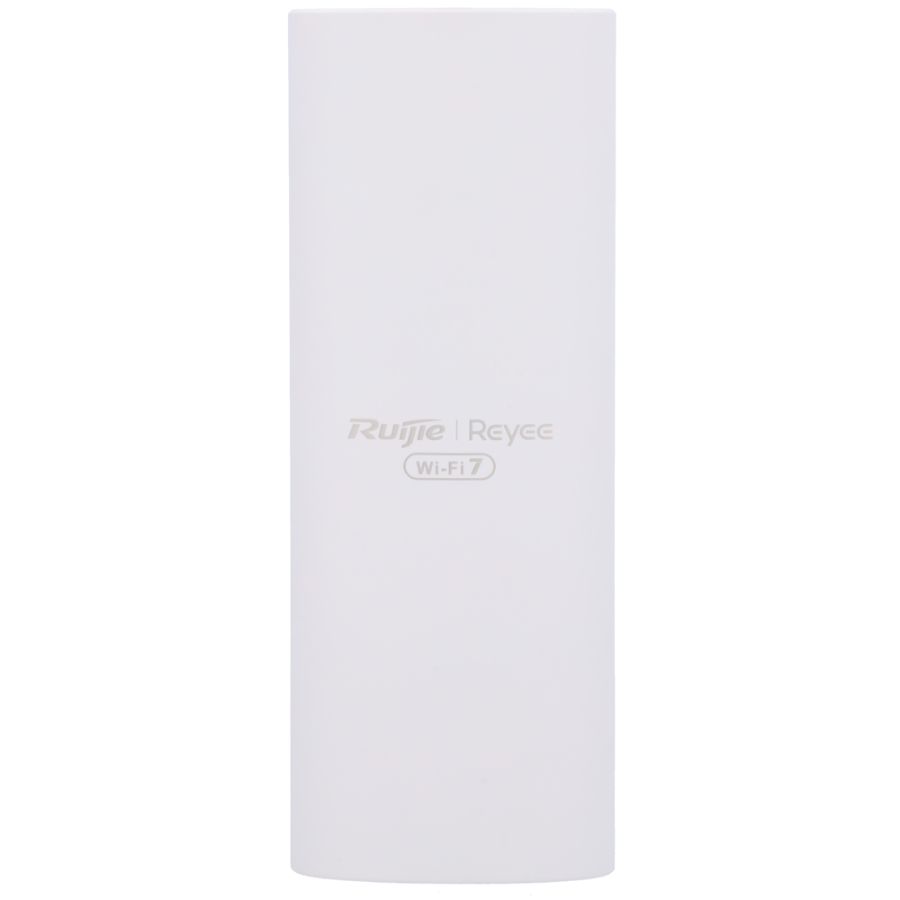

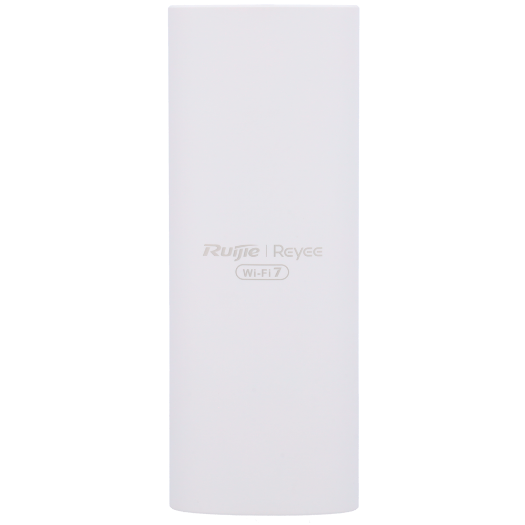

The RAP72PRO-OD is a high-performance Wi-Fi 7 access point designed to provide fast, reliable and wide coverage connectivity. Ideal for business, office and corporate environments.
Among its main features are Wi-Fi innovations 7:
MLO: allows simultaneous use of the 2.4 GHz, 5 GHz bands, improving speed and stability..
4K-QAM, which increases the amount of data transmitted per symbol compared to 1024-QAM of Wi-Fi 6.
Optimized use of the spectrum thanks to the Puncturing technique, which takes advantage of free parts of an occupied channel.
Compatibility with Wi-Fi 5 and Wi-Fi 6, devices ensuring a smooth transition for existing networks.
