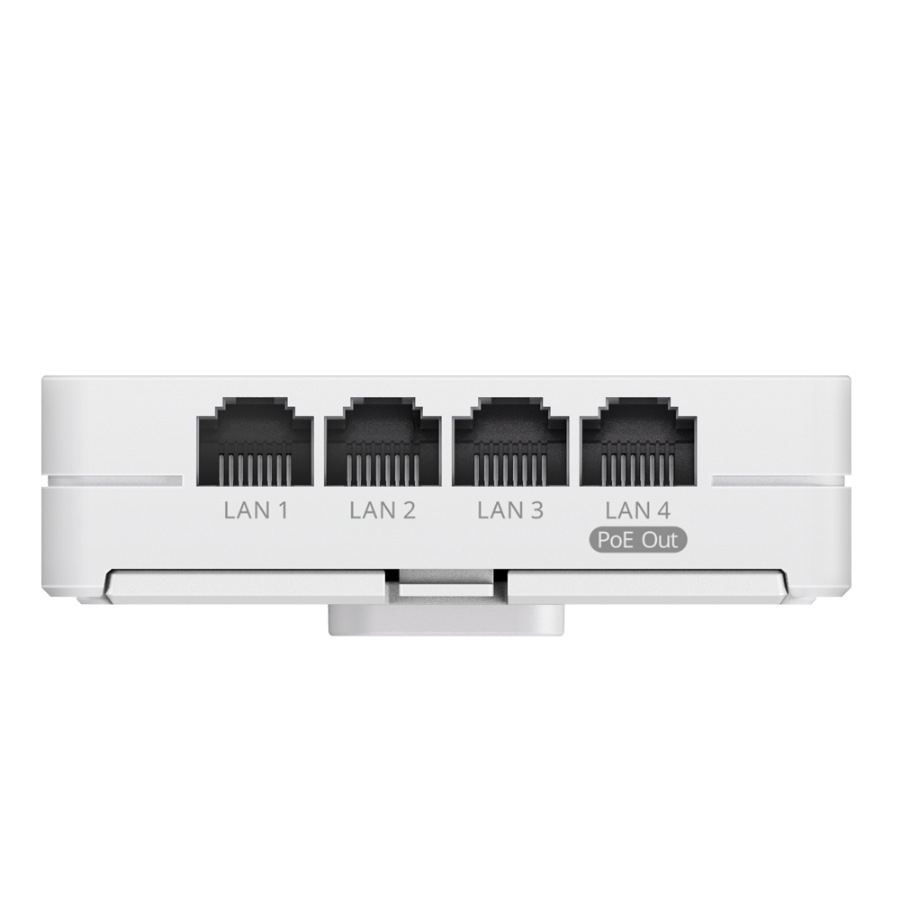

| Interface | 1 x RJ45 Base-T port 100/1000/2500 Mbps (uplink)4 x RJ45 Base-T Port 10/100/1000 Mbps |
| Brand | Reyee |
| Wireless Standard | Wi-Fi 7 802.11be |
| Frequencies | 2.4 GHz, 5GHz |
| Wi-FI performance | Up to 3600 MbpsUp to 688Mbps in 2.4GHzUp to 2882Mbps in 5GHz |
| Integrated antenna | 2.4 GHz , 2x2 MIMO 2.84dBi5 GHz , 3x3 MIMO 4.56dBi |
| Technologies | MRU (Multi-Resource Unit)MLO (Multi-Link Operation)WIO (Wi-Fi Intelligent Optimization)4K-QAM (Last generation modulation) |
| SSID | Up to 8 |
| Operating modes | Wireless access pointRouters with basic functionsCompatible with Reyee AP Mesh |
| Routing | Static IP, DHCP, PPPoE, NAT |
| Security | Isolated Wireless Clients, Block and Allow List.Authentication: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Management | Configuration via web or remote interface with Ruijie Cloud |
| Interface | 1 Port 2,5Gbps (2,5GBase-T) RJ454 Port 1Gbps (1000Base-T) RJ45 |
| Functionalities | 802.1Q VLANPort-based VLANs802.11k/v/r, L2/L3 Roaming, AI RoamingAuthentication 802.1X |
| Power | PoE 802.3af/at ( Poe Out only with PoE 802.3at ) |
| Maintenance and Diagnostics | Collection of failures in one clickActive alarm for DHCP server conflictsPacket sniffingSNMP V1, V2c, V3 |
| Network technologies | RLDPDHCP snoopingWireless flow control (WQoS)Load balancing between access pointsSame SSID for different VLANs |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 129 mm × 86 mm × 24mm (Without anchorage kit) |
| Weight | 0,27 Kg (excluding mounting kit) |

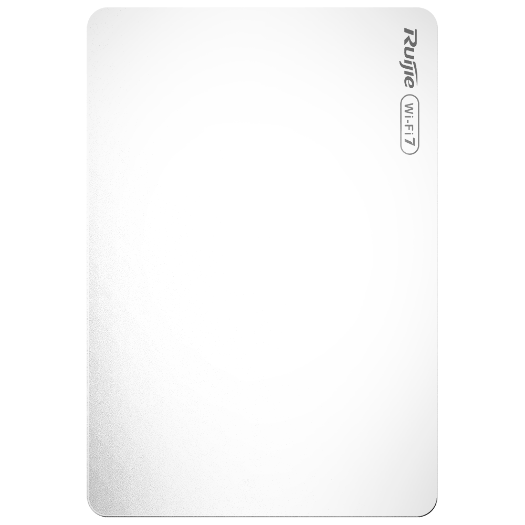

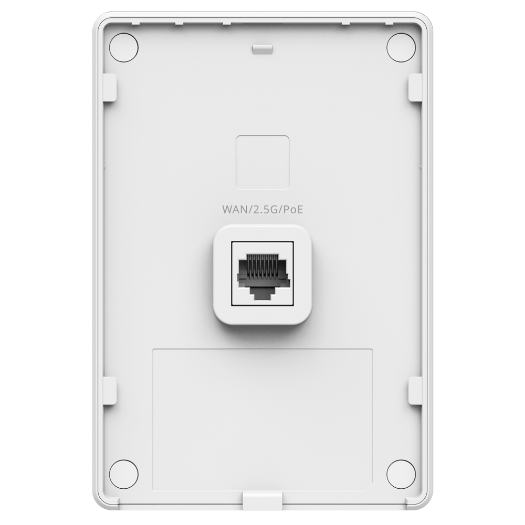

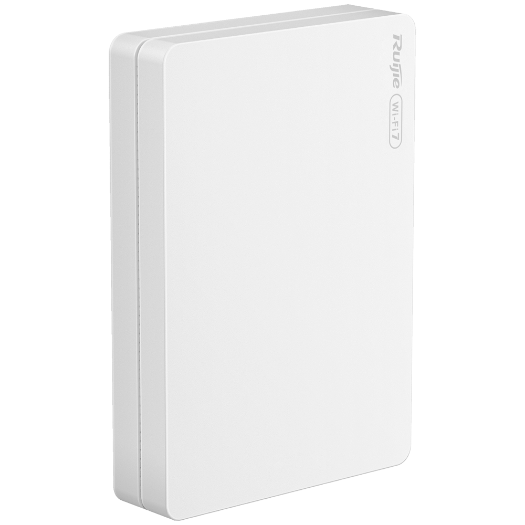

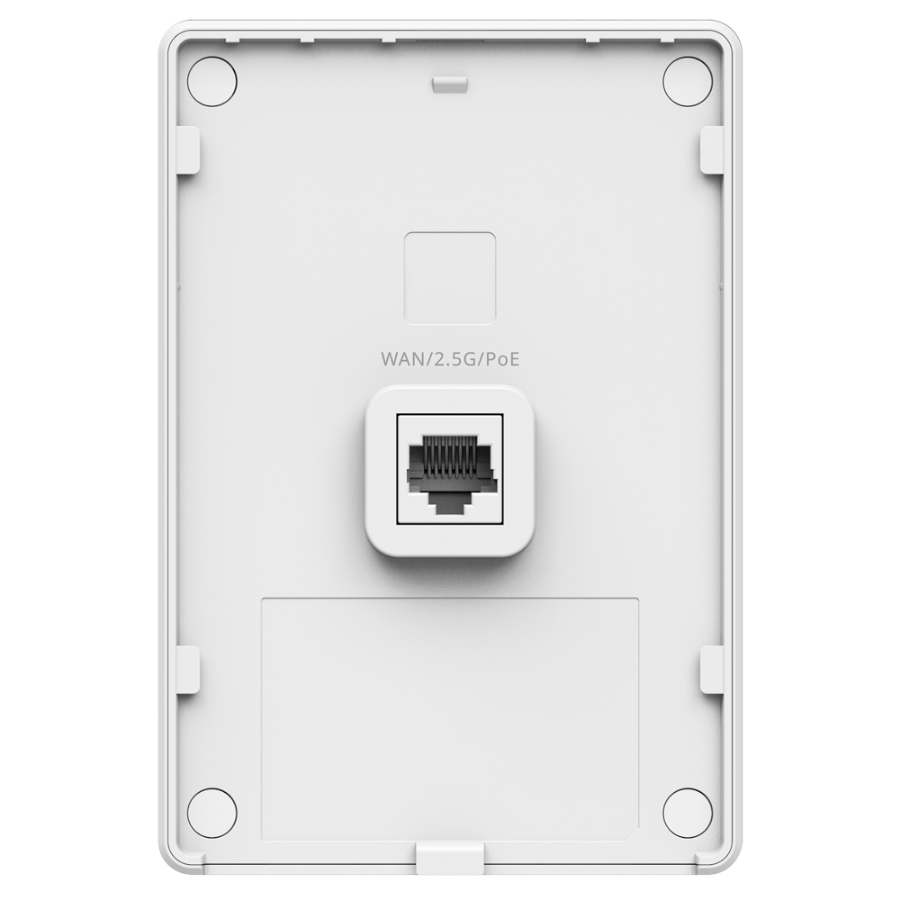

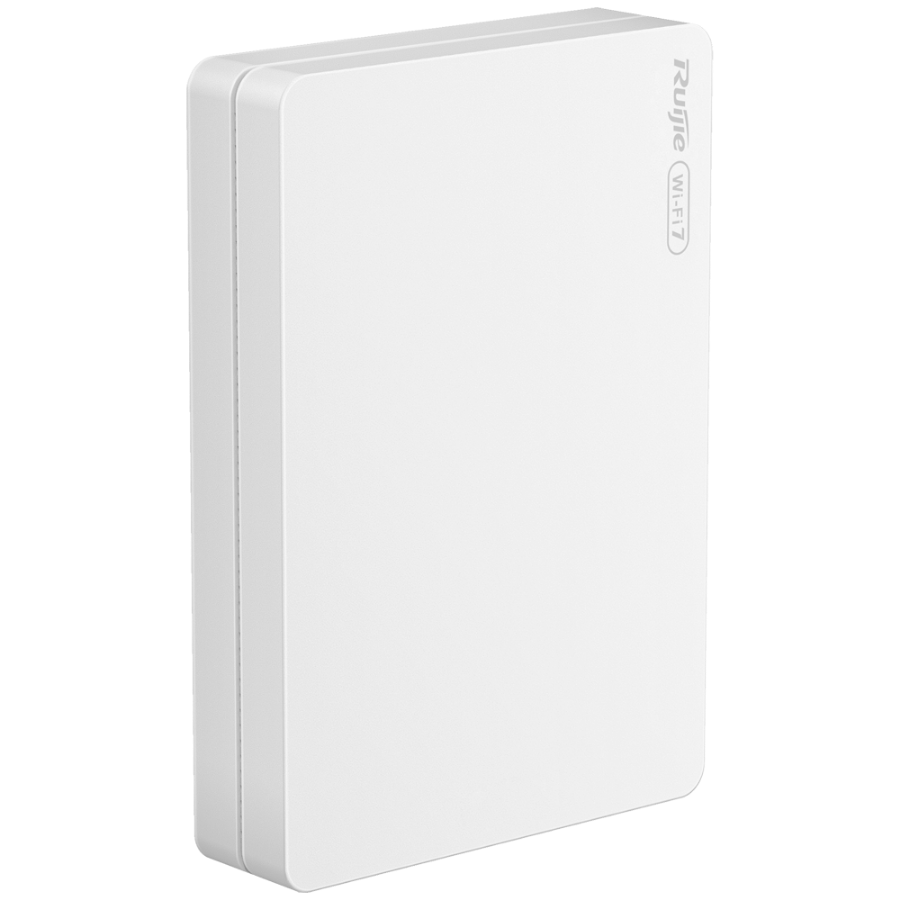

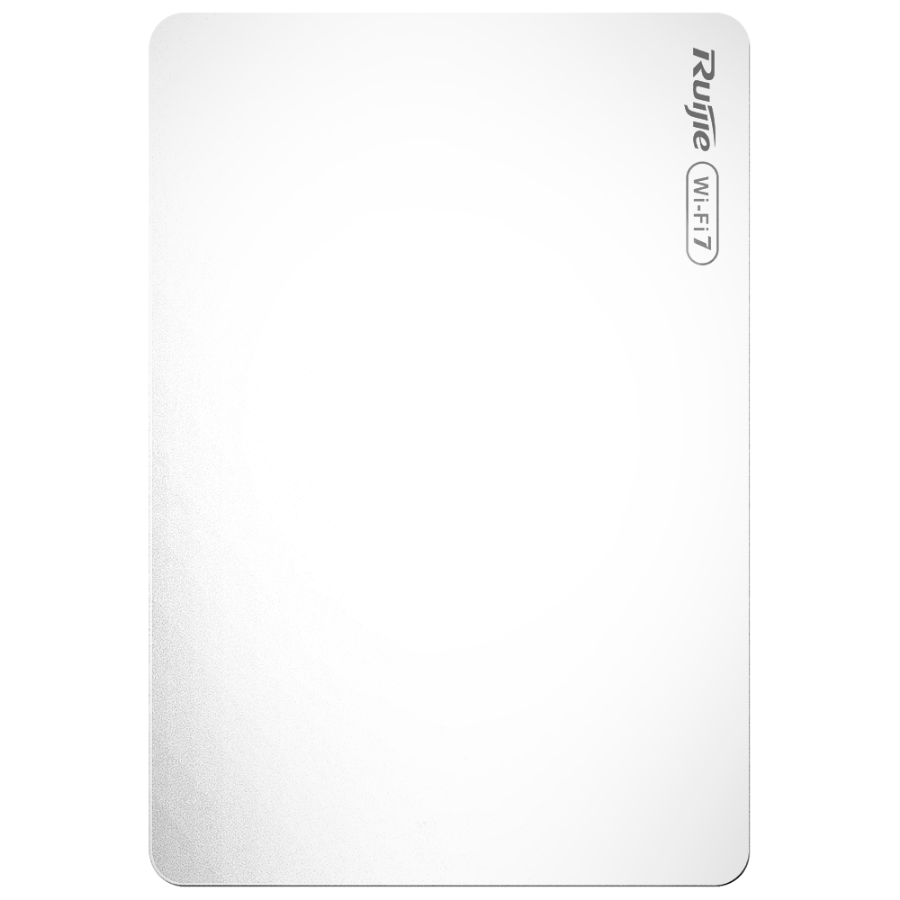

RG-RAP72-WALL with Wi-Fi 7 technology offers significantly faster connection speeds and greater simultaneous device handling capacity compared to previous generations.
Wall Mount Design: Compact design allows unobtrusive installation on walls, ideal for spaces where network access is required without taking up a lot of space.
Centralized Management: Compatible with network management solutions, making it easy to monitor and control device performance.
Use cases:
Offices: Ideal for work environments where a stable and fast Wi-Fi connection is required for multiple employees and devices.
Hotels: Perfect for providing connectivity to guests in common areas such as lobbies and conference rooms.
Schools and Universities: Provides easy access to the Internet in classrooms and common spaces, supporting digital learning.
Events and Fairs: Useful for temporary events where a fast and reliable network is required for exhibitors and attendees.
