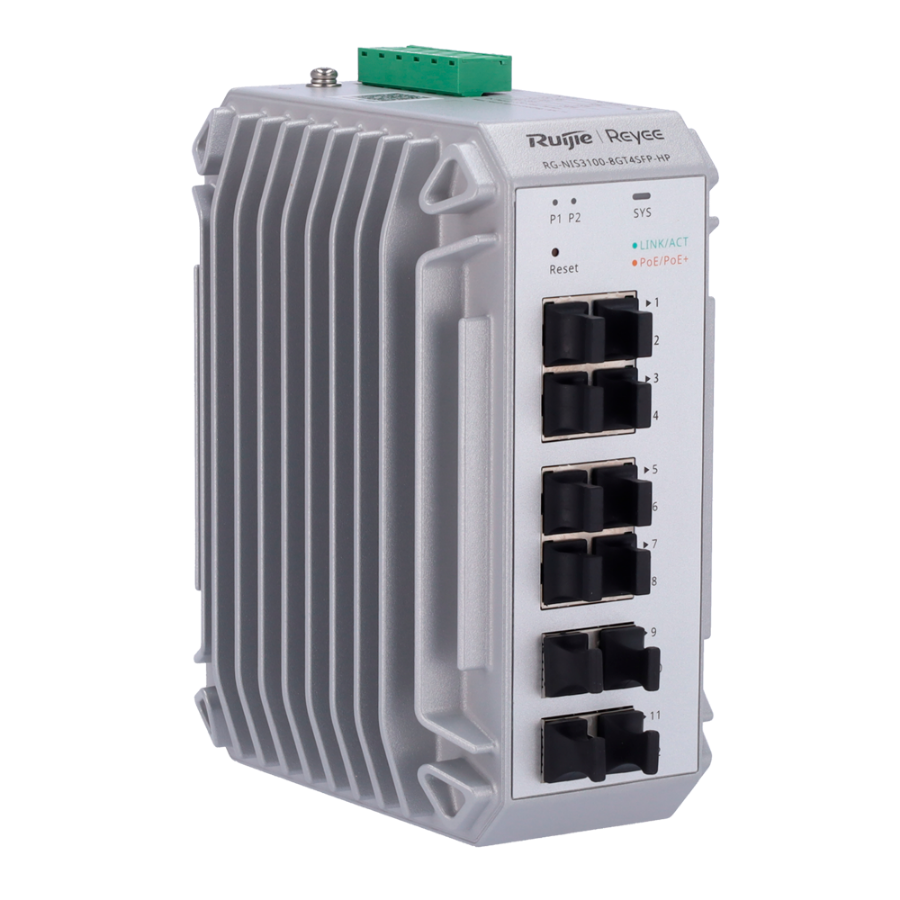

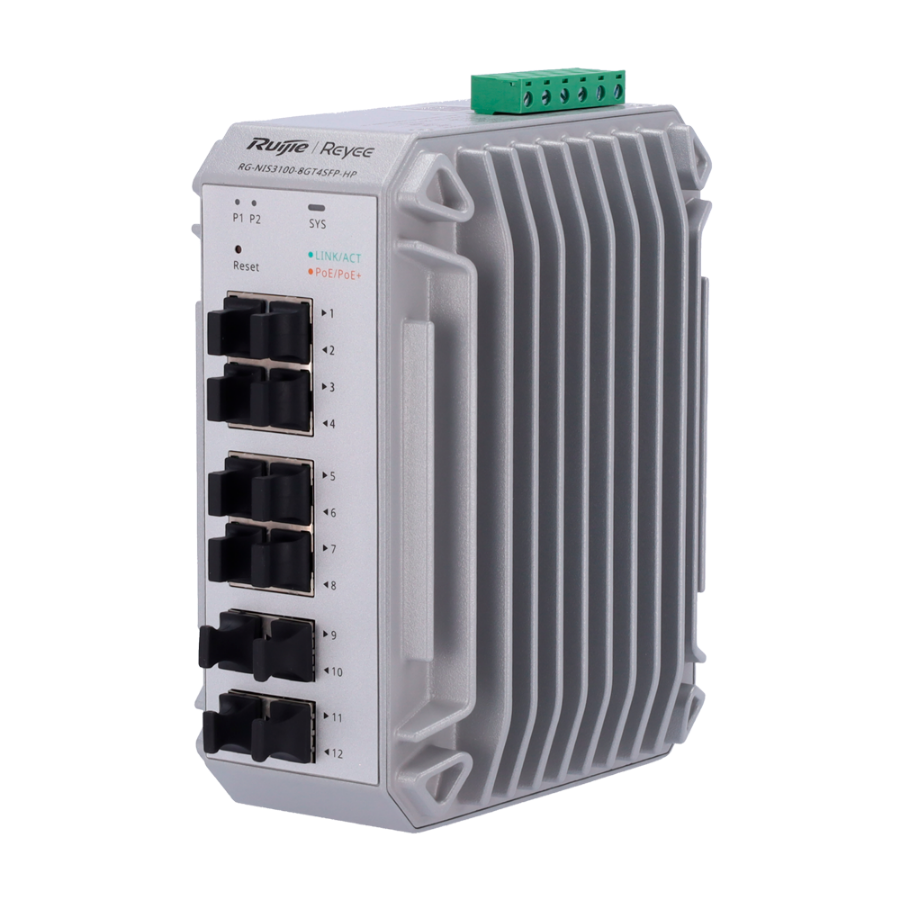

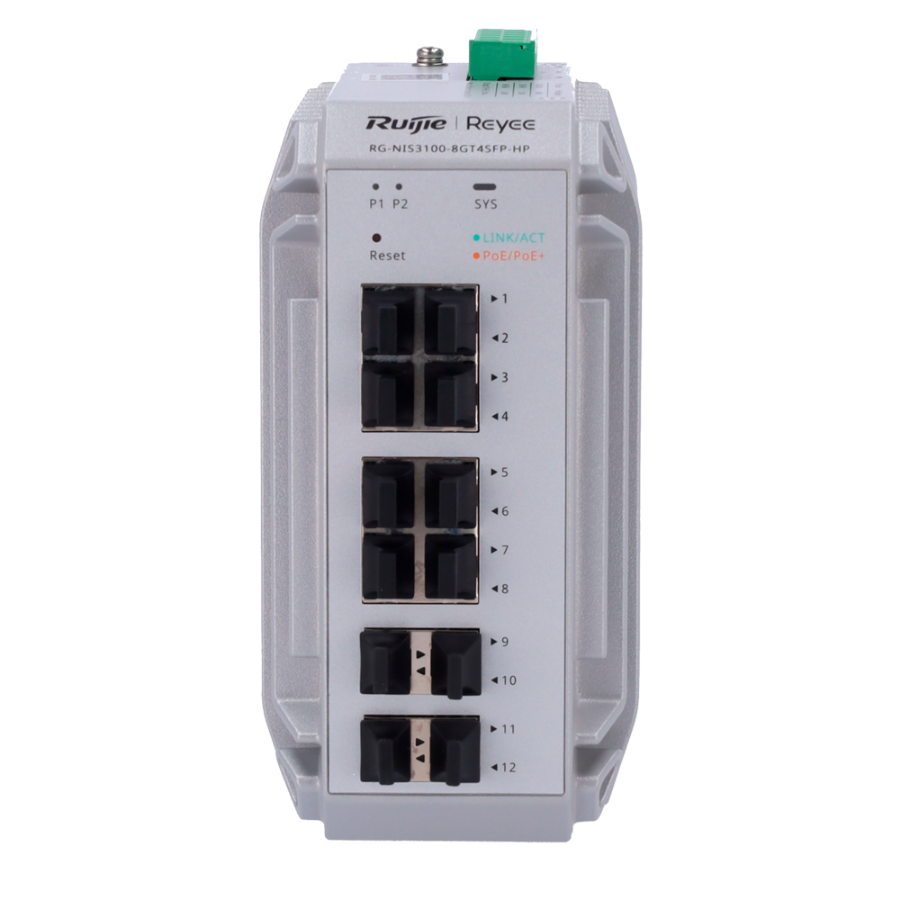

| Interface | 8 ports RJ45 10/100/1000 Mbps + 4 SFP Ports |
| Port speed | 8 x 10/100/1000 Mbps - 4 x SFP Gigabit |
| PoE | 1~8 802.3af/at Ports |
| Power supply | Up to 30 W per portIf the device is powered at 48vdc, the total power are 240WIf the device is powered at 24vdc, the total power are 120WIf the device is powered at 12vdc, the total power are 60W |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| VLAN | Up to 4094Voice VLAN |
| Redundancy control | Spanning Tree (STP, RTSP)ERPS (only available on its SFP ports) |
| Network Protocols and Technologies | LDP/LLDP-MEDDHCP SnoopingIGMP Snooping v1/v2/v3Energy Efficient EthernetACLJumbo Frame 9216Loop PreventionSNMP v1/v2c/v3 |
| Management Protocols | Web/Cloud/APP |
| Installation | DIN rail and/or wall |

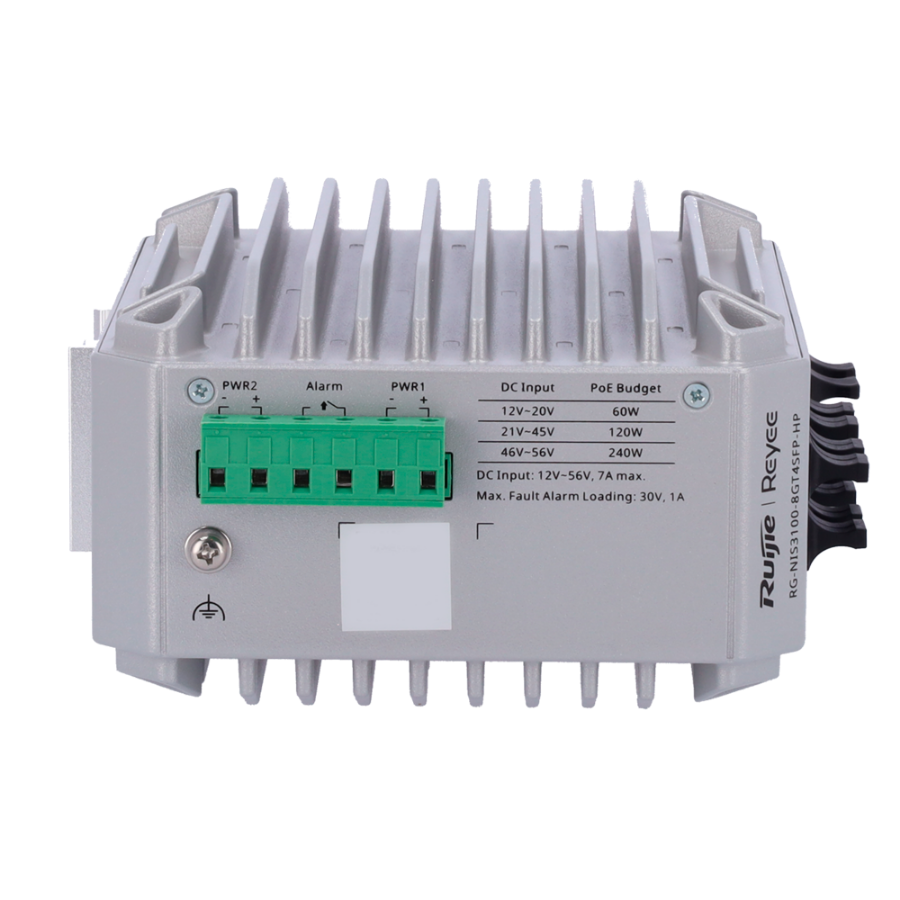

| Power | Power supply not included12-56VDC / 7A Reference is recommended:- RG-NIS-PA120-54 (will offer lower Total PoE Power)- RG-NIS-PA240-54 |
| Protections | 8KV against voltage spikes6KV against lightning strikesIP40 against dust |
| Operating temperature | -40oC~65oC In enclosed space-40oC~80oC When an exhaust fan with a flow rate of 400 LFM is installed in a location |
| Recommended Industrial SFP Modules | RG-NIS-GE-SFP-10KM-SM1310RG-NIS-GE-SFP-20KM-SM1310-BIDIRG-NIS-GE-SFP-20KM-SM1550-BIDIRG-NIS-GE-SFP-550M-MM850 |
| Dimensions | 85 x 132 x 165mm |
| Weight | 1,93 Kg (With packaging) |
