| Interface | 12 SFP+ ports 1 Management Port |
| Port speed | 12 x SFP+ 10 Gbps |
| VLAN | Up to 4096 802.1Q VLAN Port-based VLANsVoice VLAN |
| Switching Capacity | 240 Gbps |
| Reshipment Rate | 178,56 Mbps |
| MAC Table | 32000 |
| ARP Table | 2000 |
| Redundancy control | STP / RSTP / LLDP / LLDP-MED |
| Management Protocols | Web / Cloud / APP |
| DHCP | Server / Client / Relay / Snooping |
| Routers | Static / RIP / RIPng / OSPFv2 / OSPFv3 |
| Multicast | IGMP v1/v2/v3 snooping / IGMP filtering / IGMP Fast Leave / MVR Mode |
| ACL | Standard and Extended ACLs |
| QoS | Port level rate limiting (input/output) |
| Authentication | IEEE 802.1X / Port-based Authentication / MAC-based |
| High availability and virtual stacking | Virtual Cluster Switching (VCS) ( 2 units ) |
| Maintenance and monitoring | SPAN / NTP CLIENT / SNMP v1/v2/v3 / MQTT / SON / CLOUD |
| Installation | Rack |
| Power | AC 100 V - 240 V |
| Operating temperature | 0° C - 50° C |
| Dimensions | 232 (D) x 44 (H) x 300 (W) mm |
| Weight | 3.04 Kg (With packaging) |

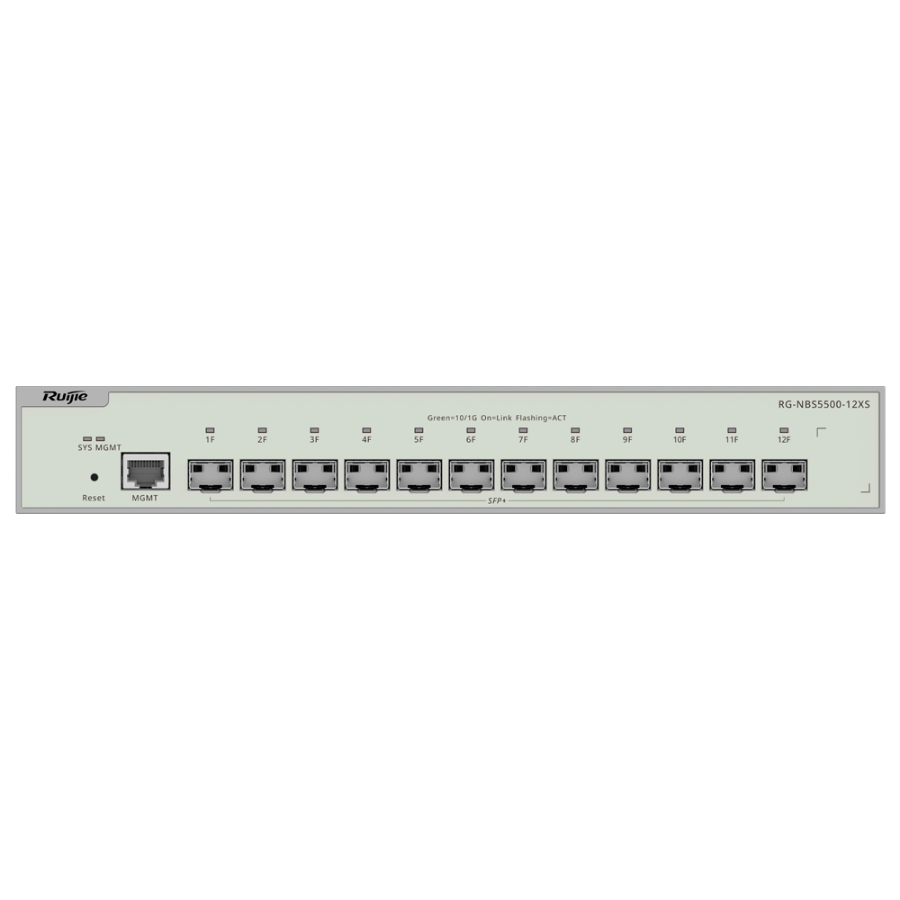

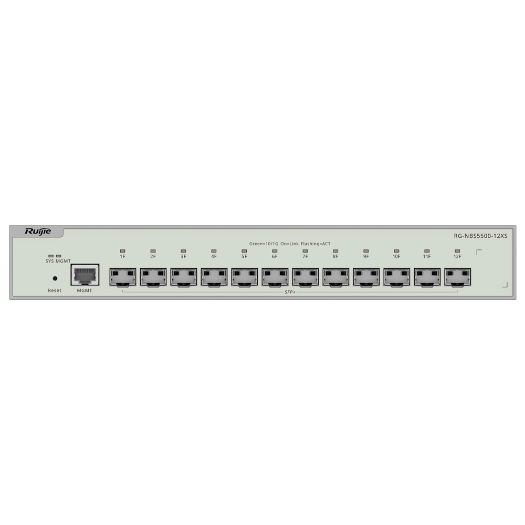

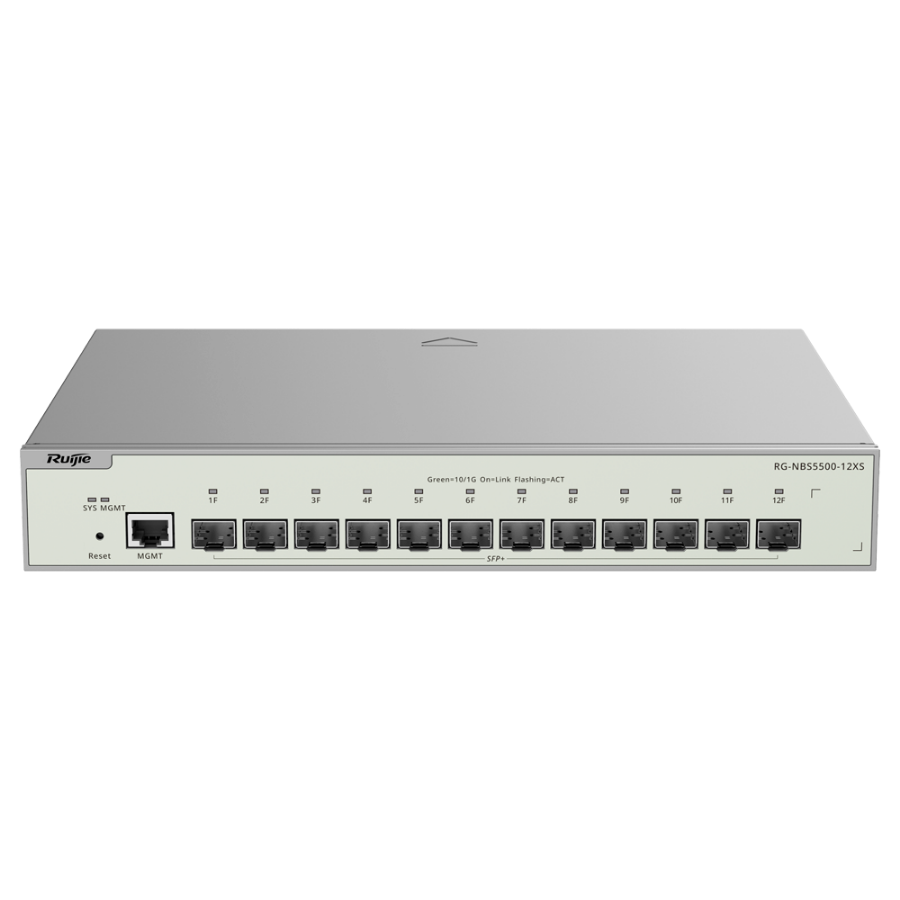

The RG-NBS5500-12XS is a high-performance switch designed to meet the needs of enterprise networks and data centers. Its combination of advanced switching and routing capabilities, high port density 10G and security features make it suitable for a variety of use cases. The following are some of the main use cases of this model:
