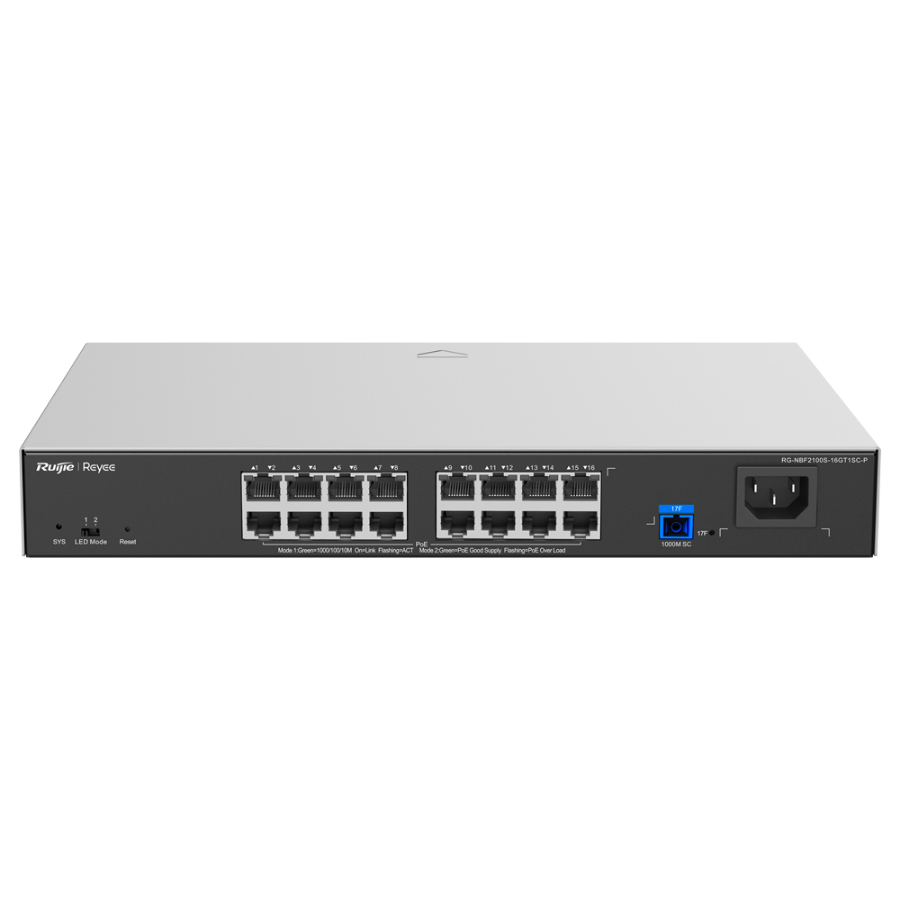

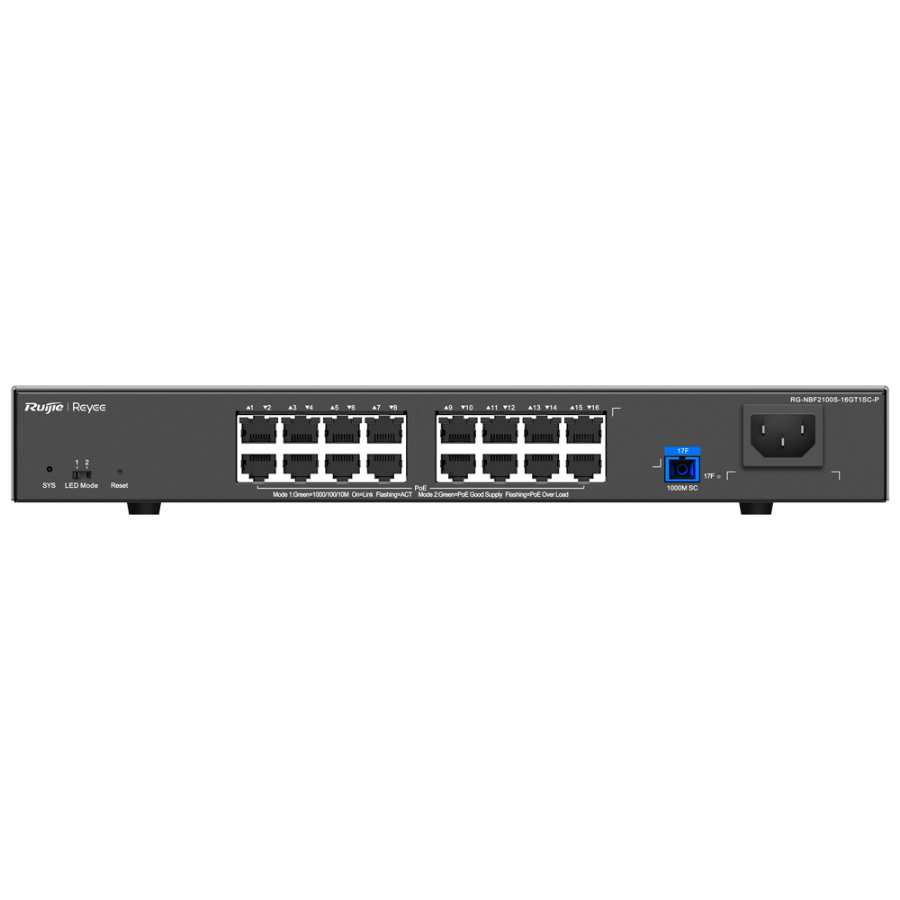

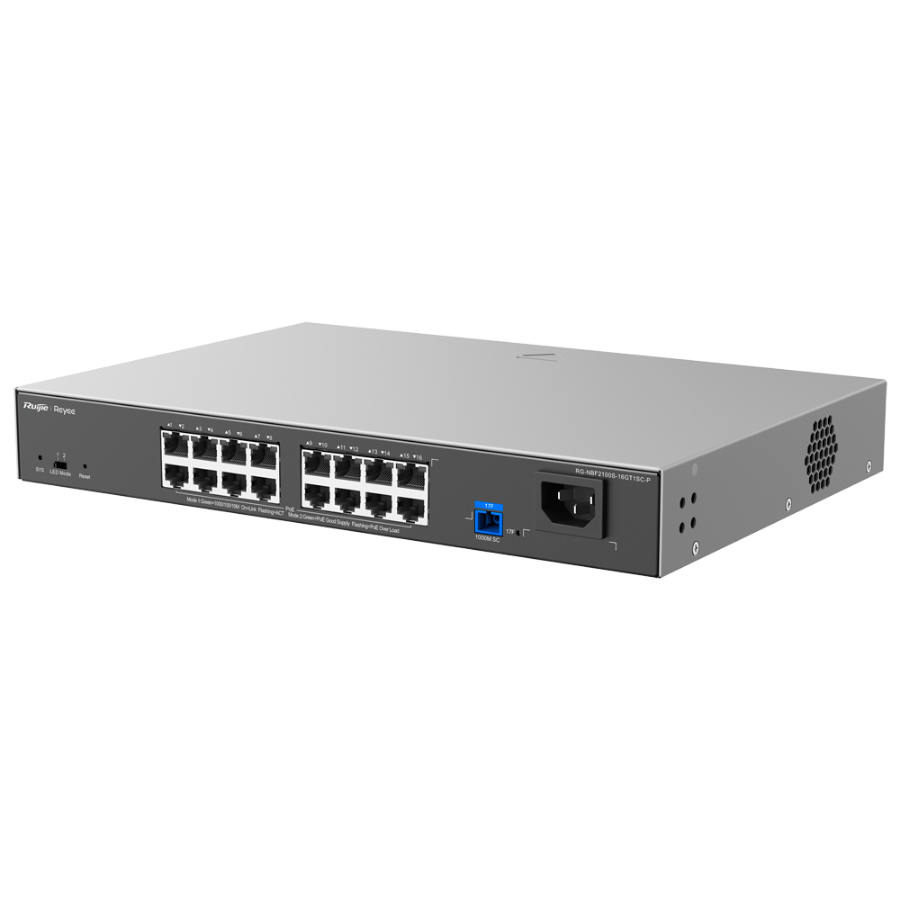

| Interface | 16 mbps ports RJ45 10/100/10001 SC optical port 1G (PON uplink connecting to an Optical Splitter or Core e-Lighten equipment ) |
| Port speed | 16x 10/100/1000 Mbps and 1x SC PON 1G |
| PoE power supply | 16 PoE+ Ports 802.3af/at with up to 30W per portUp to 240W of total power |
| Flash memory | 8 MB |
| PON functionalities | Static/dynamic bandwidth allocation for ONU's (SBA/DBA)Speed limit for unknown unicast trafficDisabling MAC switching for ONU'sAutomatic connection of ONU's to OLT |
| Bidirectional Optical Sub-Assembly (BOSA) Receive Sensitivity | –8 dB to –28 dB |
| Bidirectional Optical Sub-Assembly (BOSA) Transmitting Power | 0 dB to 3 dB |
| Digital Optical Monitoring (DDM) | Temperature/Voltage/Current status/Power Rx/Power Tx |
| Maximum Bandwidth per ONU 1G | Uplink >=900 Mbps (Minimum 10 Mbps)Downlink 997 Mbps |
| Switching Capacity | 34 Gbps |
| Forwarding rate | 25,29 Mpps |
| MAC Table | 8K |
| VLAN | Supports up to 16 VLANs |
| Network Protocols and Technologies | Port MirroringSpeed limitation per port CPU Protection PolicyDHCP SnoopingLoop Prevention |
| Management Protocols | Web/Cloud/APP |
| Surge protection | 6 kV at ports, 4 kV at power source |
| Power | 100~240 V with internal power supply (AC Cable Included) |
| Consumption | ? 290 W |
| Operating temperature | 0° C - 45° C |
| Dimensions | 229 (D) x 44 (H) x 330 (W) mm |
| Weight | 3,73 Kg (With packaging) |
