| Brand | Reyee |
| Wireless Standard | Proprietary Protocol |
| Mode of operation | Point to Point / Point - Multipoint (up to 5 CPE) |
| Frequencies | 5.15GHz - 5.85 GHz and 2.412 GHz - 2.472 GHz (Management network) |
| 5 GHz Channel Width | Auto/20/40/80 MHz |
| 2,4 GHz Channel Width | Auto/20/40 MHz |
| Distance | Up to 5 km in ideal conditions |
| TDMA | Fixed Mode / Flexible Mode |
| Maximum transmitting power 2,4 Ghz | 100 mW (20 dBm) |
| Maximum transmitting power 5 Ghz | 400 mW (26 dBm) |
| Integrated antenna | 16 dBi Dual directionalHorizontal polarization: 31oVertical polarization: 14o |

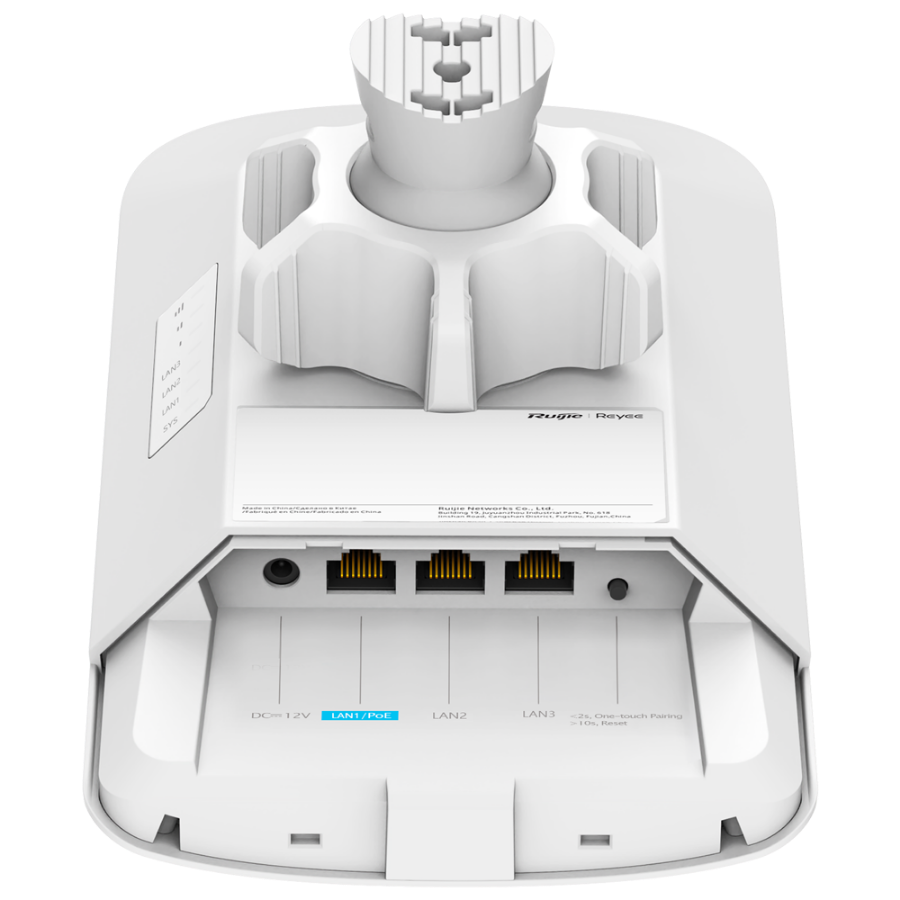

| Ports | 3 x 10/100/1000Base-T RJ45 |
| Management | Configuration via web interface, One-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimization, configuration with management radius at 2,4 Ghz |
| Additional functionalities | Management security WPA2-PSK, Internet access from the management radio, SSID Masquerading, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server |
| Power | 12 VDC and 24 VDC non-standard POEPoE 802.3af/at |
| Overvoltage protection | Common: ±4 kV Differential: ±2 kV |
| Electrostatic Discharge Protection | Contacto=8 kV, Discharge Aérea=15 kV |
| Power consumption | < 12 W |
| Operating temperature | -40 °C ~ 80 °C (When using power adapter the maximum operating temperature of the device and power adapter is 60o max) |
| Dimensions | 240 ×133 ×108 mm (Without anchor) |
| Weight | 730 g |
The RG-EST350G is a high-performance 5 GHz wireless bridge, designed to provide point-to-point (PTP) or point-to-multipoint (PTMP) connectivity over long distances, with high stability and efficiency. It is ideal for urban surveillance, building-to-building links and deployments in demanding outdoor environments.

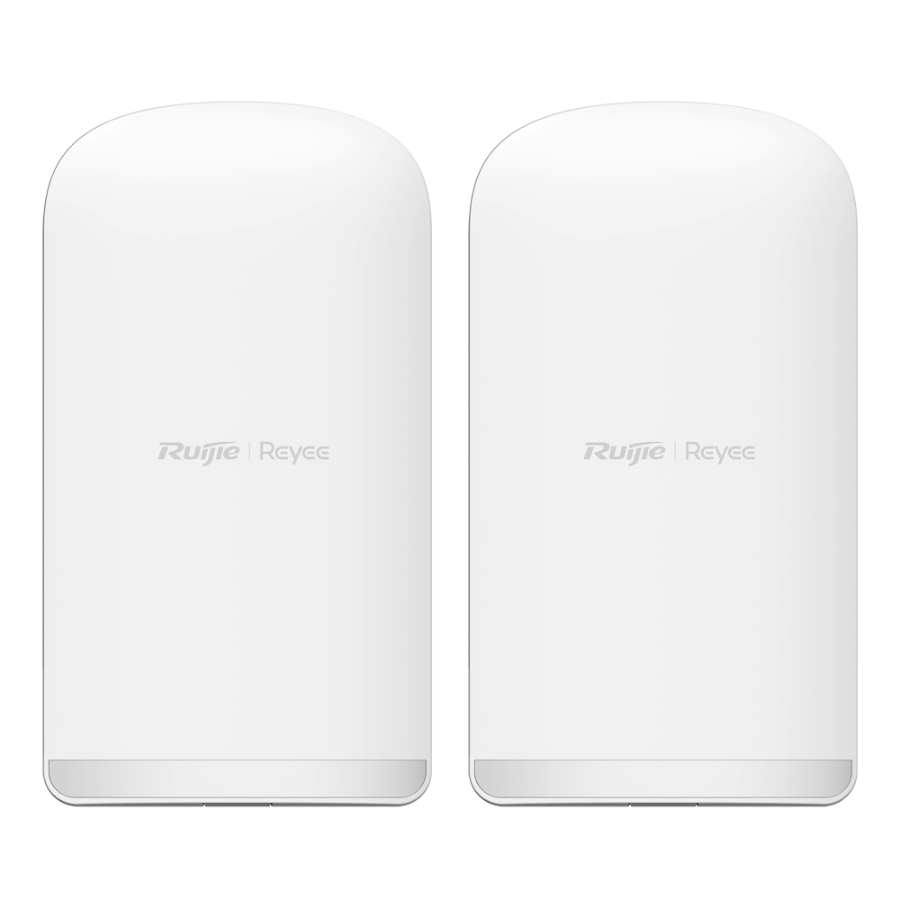

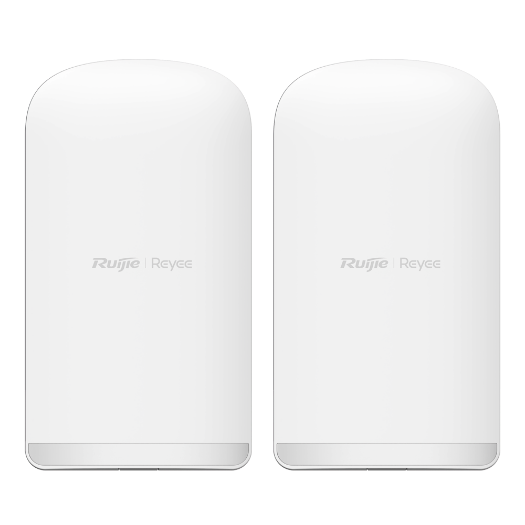

Delivered in a kit consisting of two factory pre-matched units, ready for immediate use. This allows for quick and hassle-free installation, as no additional configuration is required to establish the wireless link between the two devices. Ideal for deployments where a plug-and-play solution is needed for stable, long-range PTP connections.
Among its main features are:
Wireless speeds of up to 867 Mbps in the 5 GHz band and 150 Mbps in 2.4 GHz, thanks to Wi-Fi 5 (802.11ac) [%VAR%] technology.
256-QAM modulation and 2x2 MIMO technology, enabling more efficient and robust data transmission.
Coverage of up to 5 km, with sufficient performance to service multiple high-definition IP cameras.
Assisted antenna alignment and diagnostic tools such as spectrum scanning, speed testing, and AI Heatmap, which facilitate installation and maintenance.
Automatic PTP pairing and SON (Self-Organizing Network) technology, which simplify the deployment and management of multiple Reyee devices.
Triple power option: PoE 802.3af/at, Passive PoE and DC direct source, for flexible installation.
IP55 protection and ESD tolerance up to 15 kV, guaranteeing resistance in adverse weather conditions.
In addition, the RG-EST350G is compatible with Ruijie's cloud management platform, allowing for remote monitoring, firmware upgrades, and centralized configuration in a simple and secure manner.
