| Brand | Reyee |
| Wireless Standard | Proprietary Protocol |
| Mode of operation | Point to Point / Point - Multipoint (up to 5 CPE) |
| Frequencies | 5.15GHz - 5.85 GHz and 2.412 GHz - 2.472 GHz (Management network) |
| 5 GHz Channel Width | Auto/20/40/80 MHz |
| 2,4 GHz Channel Width | Auto/20/40 MHz |
| Distance | Up to 3 km in ideal conditions |
| TDMA | Fixed Mode / Flexible Mode |
| Maximum transmitting power 2,4 Ghz | 100 mW (20 dBm) |
| Maximum transmitting power 5 Ghz | 400 mW (26 dBm) |
| Integrated antenna | 13 dBi Dual directional |
| PoE power supply | 2 x PoE+ 802.3af/atUp to 15,4W of total power |
| Ports | 3 x 10/100Base-T RJ45 |
| Management | Configuration via web interface, One-click configuration, AI Heatmap for Bridge, Bridge Alignment Tool, Spectrum Scan and Link Optimization, configuration with management radius at 2,4 Ghz |
| Additional functionalities | Management security WPA2-PSK, Internet access from the management radio, SSID Masquerading, Spectrum Analysis, Alignment Tools, One-Touch Pairing, WMM, Storm Control, VLAN Packet Transmit, DHCP Server |
| Power | 12 VDC and 24 VDC non-standard POEPoE 802.3af/at |
| Overvoltage protection | Common: ±4 kV Differential: ±2 kV |
| Electrostatic Discharge Protection | Contacto=8 kV, Discharge Aérea=15 kV |
| Power consumption | < 9 W (No output PoE)<24.4W (with PoE output) |
| Operating temperature | -40 °C ~ 80 °C (When using power adapter the maximum operating temperature of the device and power adapter is 60o max) |
| Dimensions | 198,8 ×102 ×53,4 mm (Without anchor) |
| Weight | 370 g |

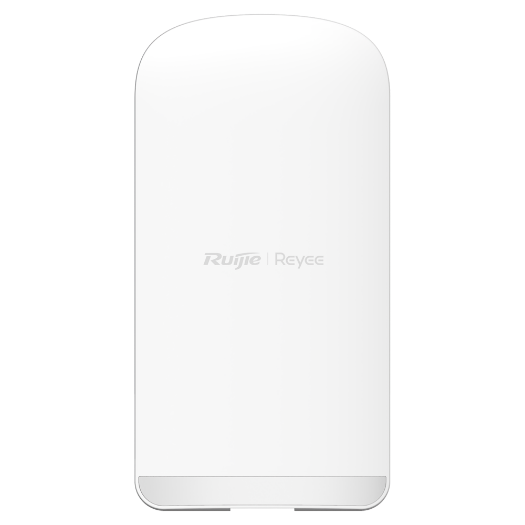

The RG-EST330F-P is a high-performance wireless bridge for PTP and PTMP links in the 5 GHz band, designed especially for outdoor environments where a robust, cost-effective and easy-to-deploy solution is required. It is ideal for applications such as video surveillance, building-to-building links and remote network connectivity.
Among its main features are:
Wireless speeds of up to 867 Mbps at 5 GHz and 150 Mbps at 2.4 GHz, thanks to its support for Wi-Fi 5 (802.11ac), and use of technologies such as 2x2 MIMO and 256-QAM modulation.
Effective coverage of up to 3 km, with performance capable of transmitting multiple IP cameras depending on resolution.
Coverage angle of 30° both horizontally and vertically, with an integrated 13 dBi antenna that optimizes link direction for improved signal and stability.
Two integrated PoE Out (802.3af/at) ports, which allow other devices, such as IP cameras, to be powered directly from the same network point, reducing additional cabling and installation costs.
Fast, one-touch pairing and tools such as antenna alignment, spectrum scanning and AI Heatmap, which facilitate accurate and efficient deployment.
Compatible with Ruijie's SON (Self-Organizing Network) technology, for automatic integration with other Reyee devices and centralized management from the cloud.
Three feeding options: Passive PoE, PoE 802.3af/at and direct DC supply, for flexible installation in various scenarios.
Compact, dust- and water-resistant design (IP55), with low power consumption and ESD tolerance up to 15 kV, ideal for outdoor operation in demanding environmental conditions.
The RG-EST330F-P is delivered as a single unit, intended to be used in conjunction with another compatible bridge as part of a point-to-point link or as a CPE in multipoint configurations. It is a cost-effective and versatile option for short and medium range wireless deployments with PoE power requirements for remote devices.
