| Brand | Reyee e-Lighten PON |
| Wireless Standard | Wi-Fi 5 (802.11ac) |
| Frequencies | 2.4GHz & 5GHz |
| Performance in 2.4GHz | Up to 300 Mbps |
| Performance in 5GHz | Up to 867 Mbps |
| Number of recommended customers | 8 (2.4 GHz) + 24 (5 GHz) =32 |
| Maximum power transmission | Adjustable |
| Maximum sensitivity | –83 dBm@MCS0 |
| Modulation | 256-QAM |
| Integrated antenna | 2x2 Internal Omnidirectional MIMO antennas at 2.4 GHz (2dBi) and 5 GHz (2dBi) |
| VLAN | Up to 8 VLANsPort-based VLANs |
| Operating modes | E-Lighten Wireless Access PointCompatible with AP GroupNot Compatible with Reyee AP MeshIntelligent optimizationLayer Roaming 2 |
| Security | WPA / WPA2 (AES) / WPA-PSK |
| SSIDs | Up to 8 |
| Management | Configuration via web interface or remotely with Ruijie cloud app |

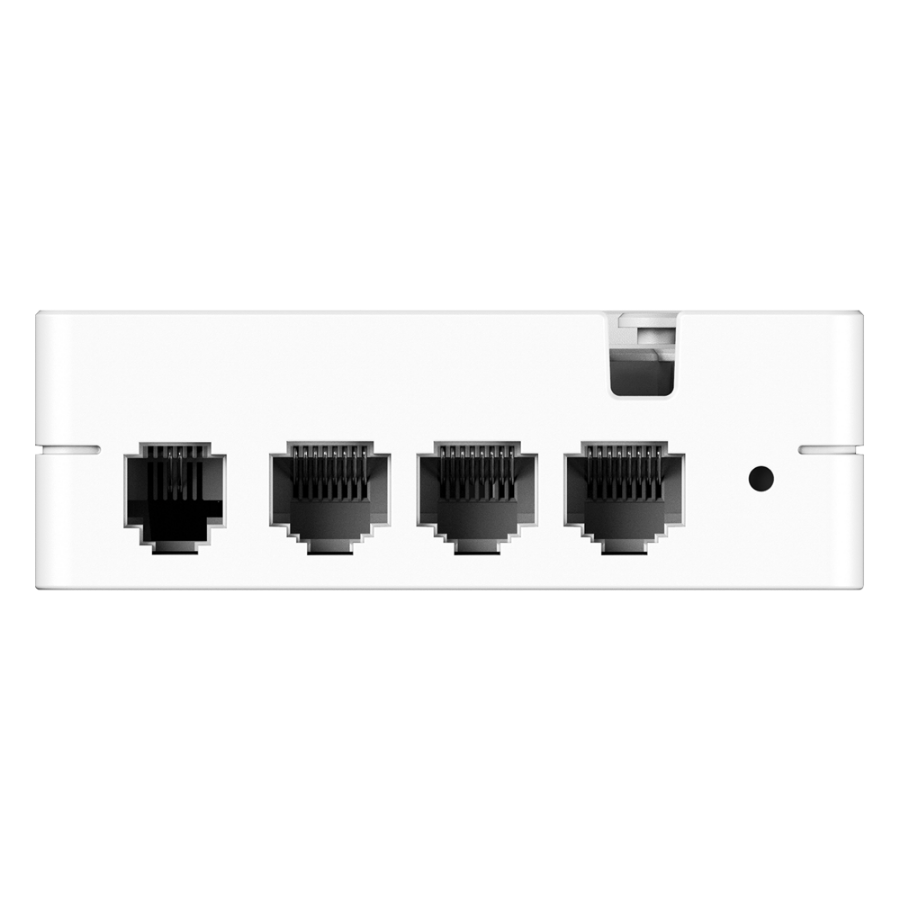

| Interface | 1 Uplink SC PON Rear 3 RJ45 10/100/1000 Mbps 1 RJ11 |
| Electrical consumption | < 12.95 W |
| Power | DC: 12 V/1.5 A (power supply included) |
| Degree of protection | IP41 |
| Operating temperature | 0 °C ~ 40 °C |
| Dimensions | 86 (D) x 29 (H) x 165 (W) mm |
| Weight | 236 g |
