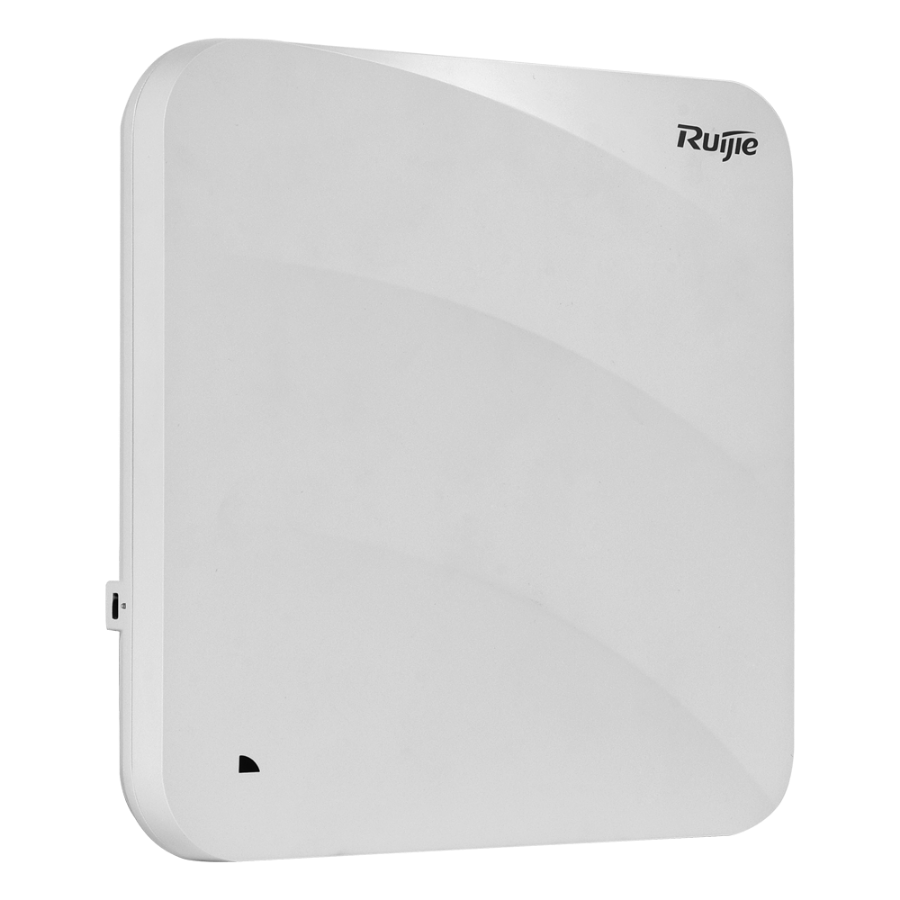

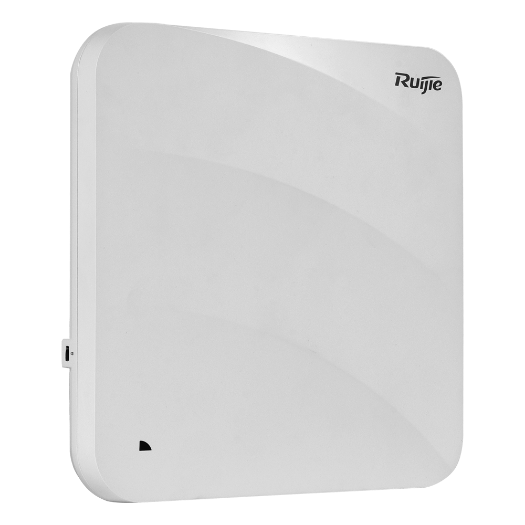

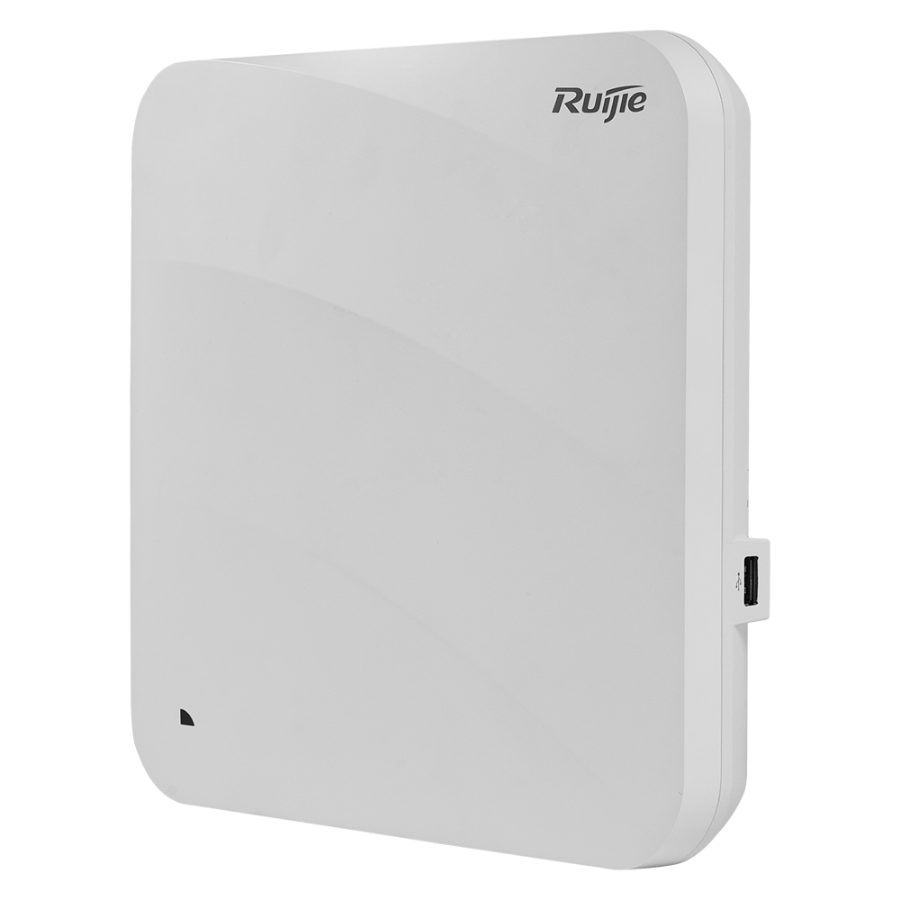

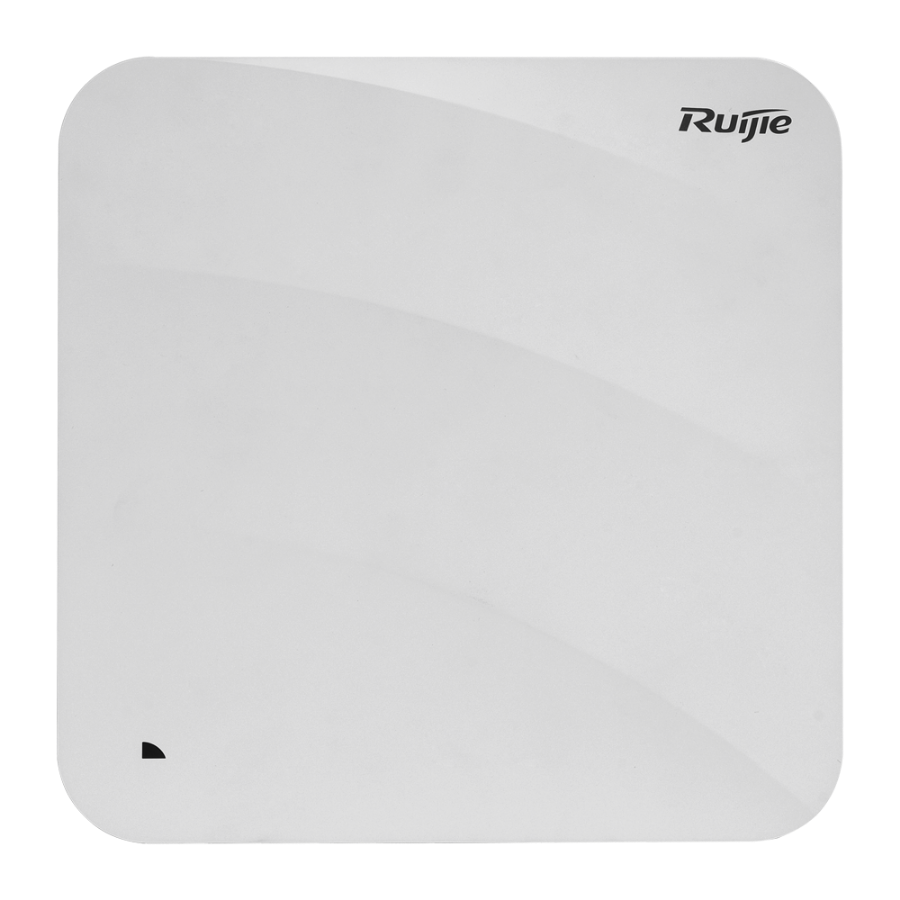

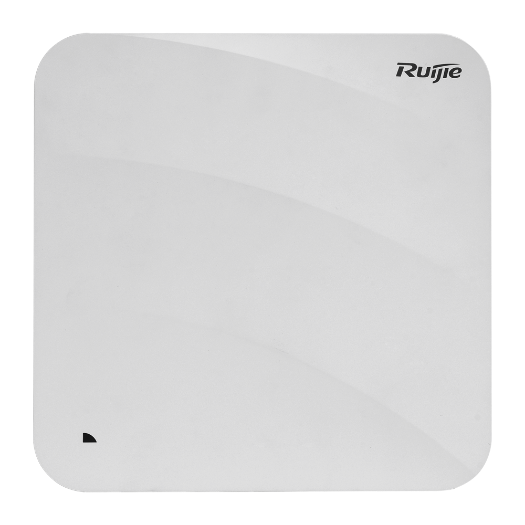

| Brand | Ruijie |
| Wireless Standard | Wi-Fi 6 802.11AX |
| Frequencies | 2.4GHz & 5GHz |
| Wi-FI performance | Up to 5375 MbpsRadio1: 2.4GHz - 574 MbpsRadio2: 5GHz - 4800 Mbps Up to 160MHz |
| Integrated antenna | 2.4GHz 5,9dBi, 5GHz 6,2dBi |
| Interfaces | 1 RJ45 5Gbps PoE In Port1 SFP Port 5Gbps1 Port RJ45 IoT with passive PoE Out 48v/12,95W1 Console Port |
| SSID | Up to 32 |
| Operating modes | FIT: Adopted by Centralized AP Controller WSFAT: Standalone mode - Local Web AccessCloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP/Console |
| Concurrent Clients | Maximum Software: 1024 |
| Technologies | Hidden SSIDBand SteeringLoad balancing based on number of users or trafficBandwidth ControlPPSK authentication (Proprietary) and 802.1XRogue AP DetectionIsolation between Wi-Fi clientsCPU Protection P |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |
| Power | Jack connector 54Vdc/1,1AIt is recommended to power the device with Hi-PoE 802.3btIf powered with PoE+ 802.3at the AP will work properly but will not be able to power other devices through the LAN2 Io |
| Operating temperature | -10 °C ~ 50 °C |
| Dimensions | 230 x 230 x 51 mm |
| Weight | 1,25 Kg |
