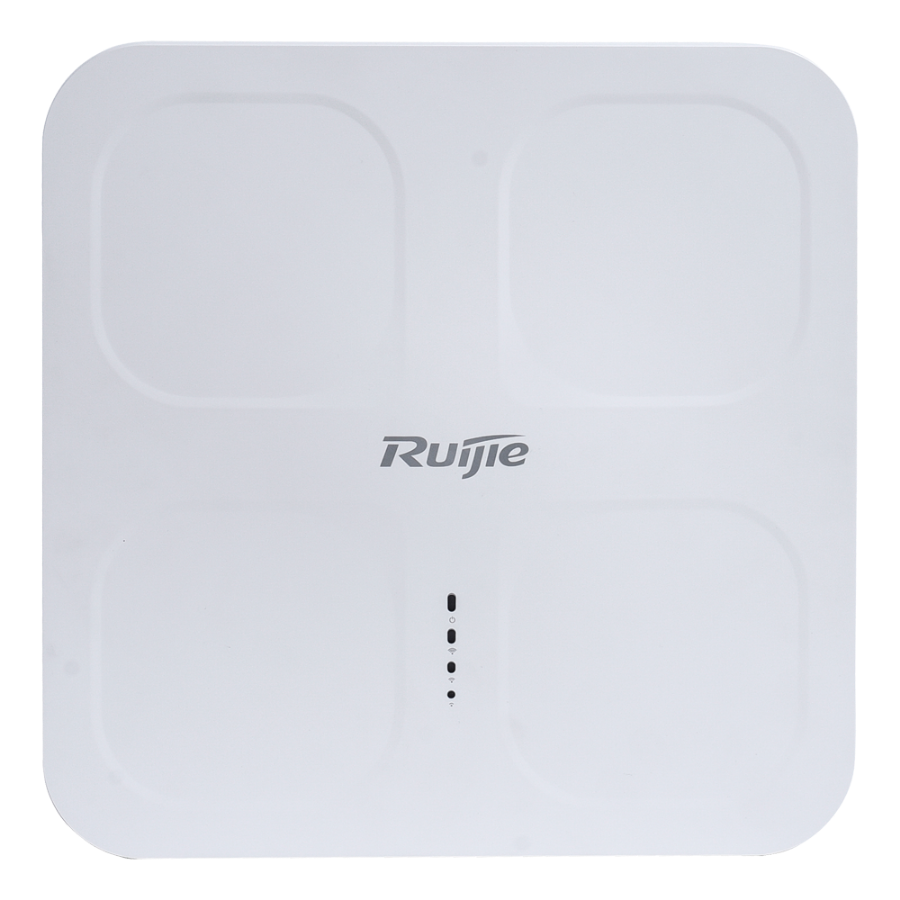

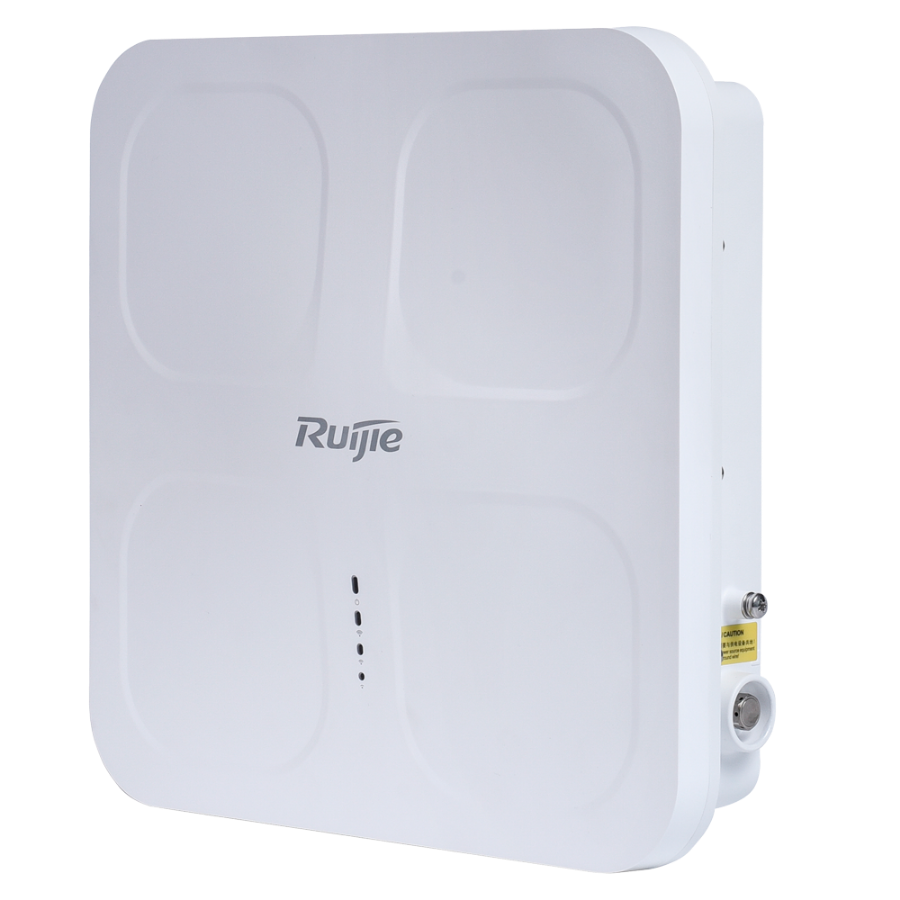

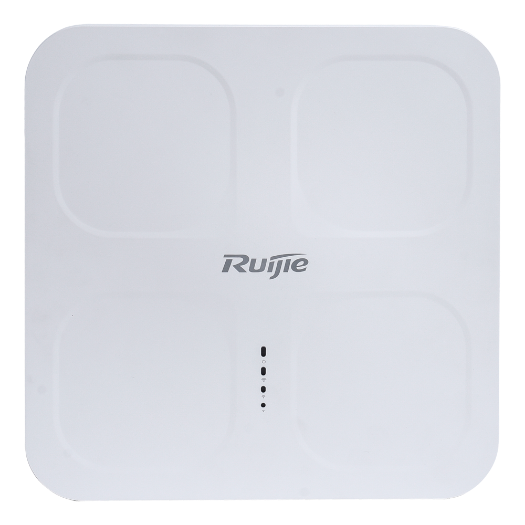

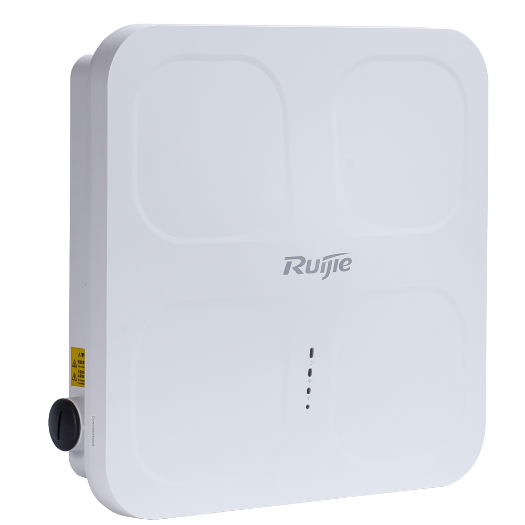

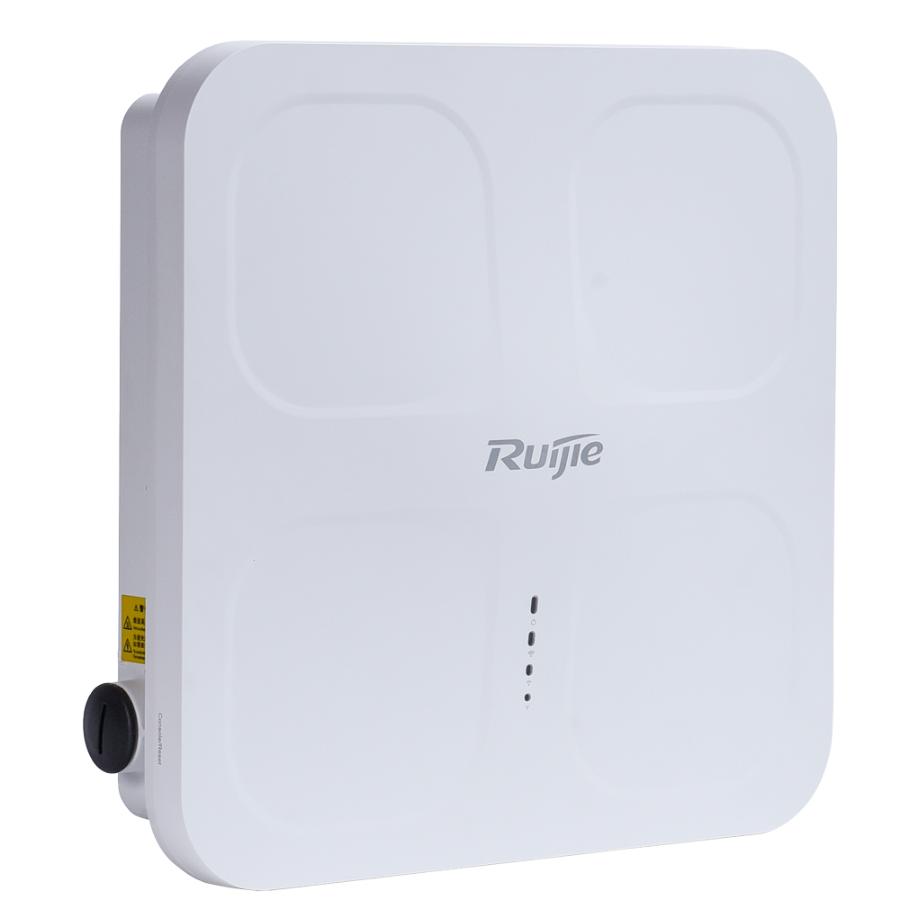

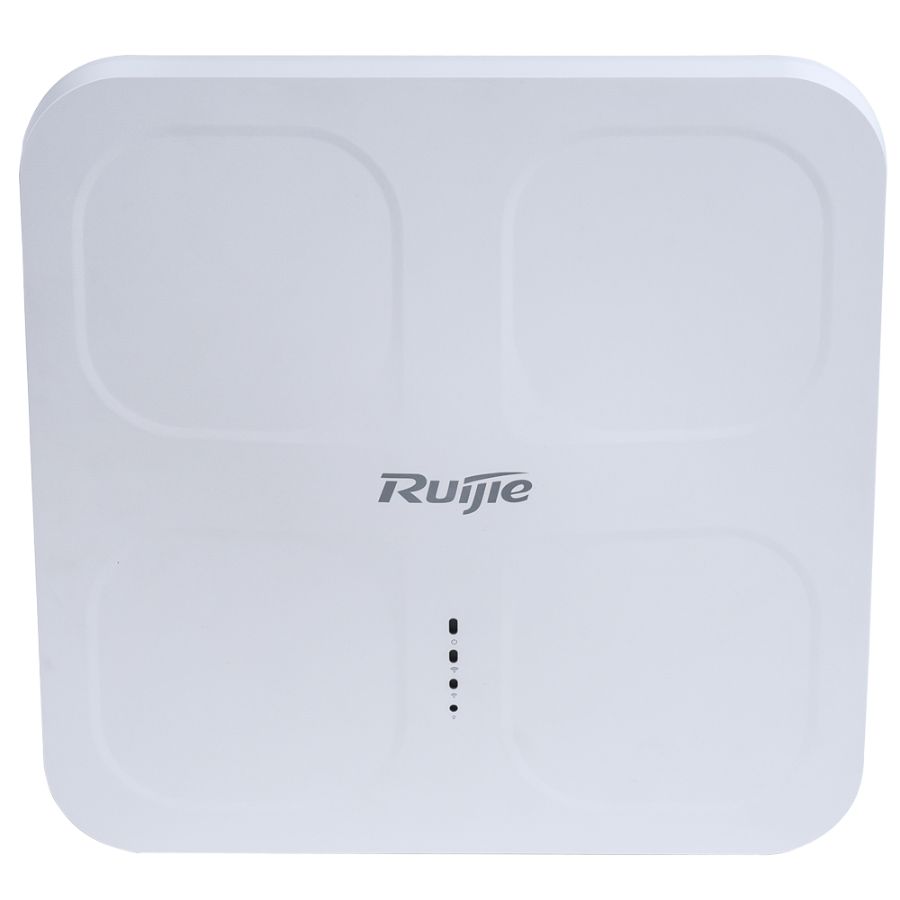

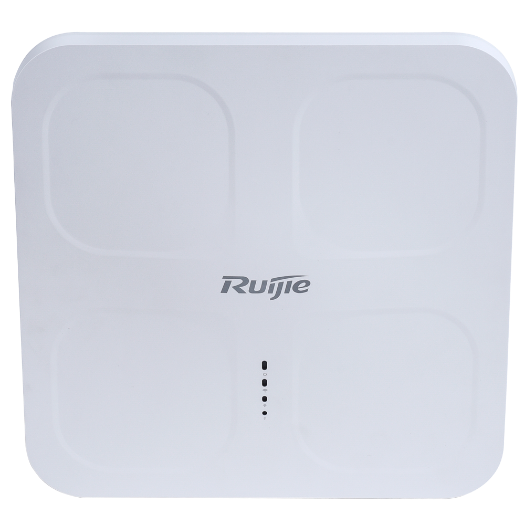

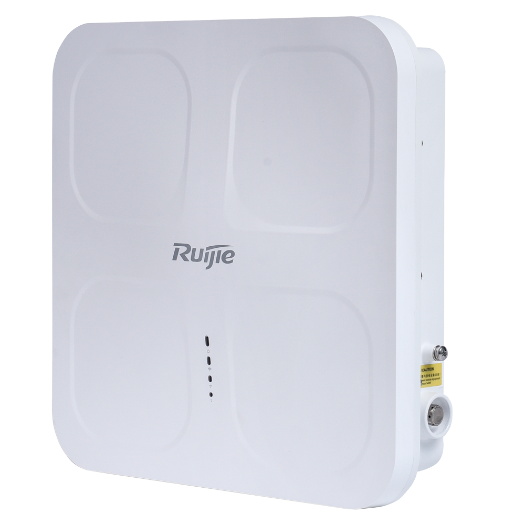

| Brand | Ruijie |
| Wireless Standard | Wi-Fi 6 802.11AX |
| Wi-FI performance | Up to 6000 MbpsRadio1: 2.4GHz - 1147 MbpsRadio2: 5GHz - 4804 Mbps |
| Frequencies | 2.4 y 5GHz |
| Integrated antenna | 4x4 Omnidirectional MIMO internal antennas2.4GHz -> 3dBi5GHZ -> 3dBi |
| Bluetooth | Integrated Omnidirectional Antenna Bluetooth 5.12dBi10 dBm |
| Operating modes | FIT: Adopted by Centralized AP Controller WSFAT: Standalone mode - Local Web AccessCloud: Managed through Ruijie Cloud |
| Security | WPA / WPA2 (AES) / WPA-PSK / WPA3 |
| Management | Web/Cloud/APP/Console |

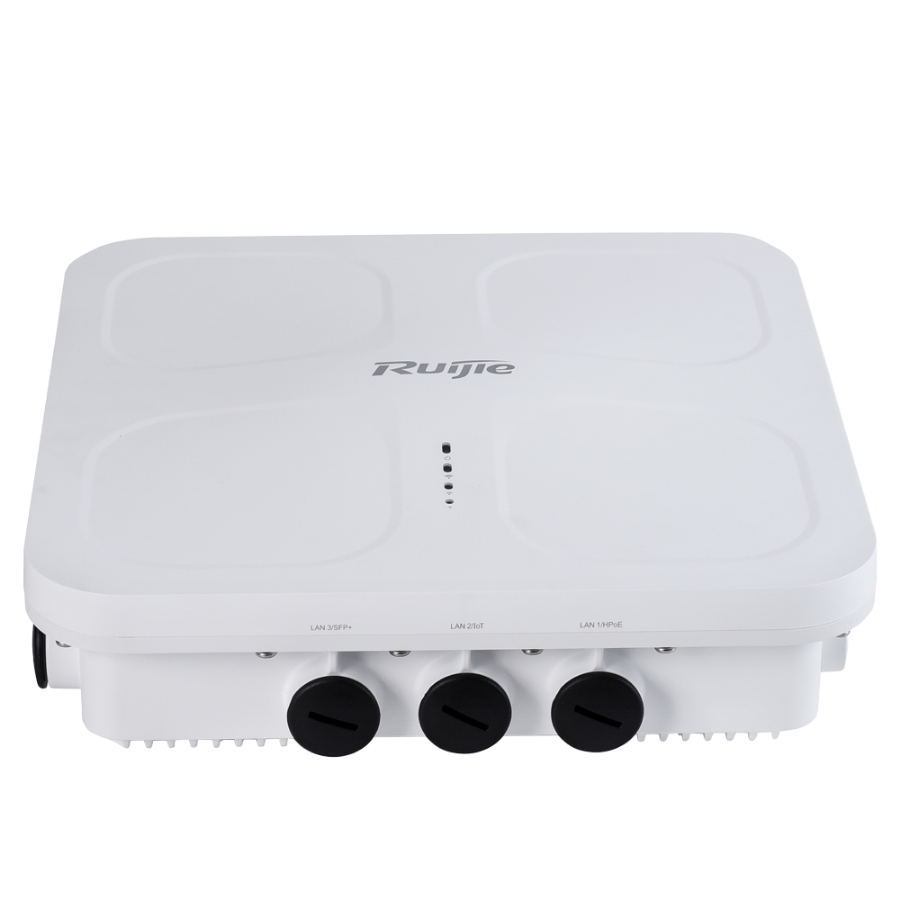

| Interface | 1 Base-T Port 10/100/1000/2500/5000 Mbps PoE In1 SFP+ Base-X Port 1000/2500/10000Mbps - Connects the AP at a distance of up to 20Km with single-mode fiber1 Base-T Port 10/100/1000 PoE Out 48 V/12.95 W |
| Concurrent Clients | Maximum Software: 1024Recommended: 64 |
| Technologies | Hidden SSIDBand SteeringLoad balancing based on number of users or trafficBandwidth ControlPPSK authentication (Proprietary) and 802.1XRogue AP DetectionIsolation between Wi-Fi clientsCPU Protection P |
| Compatible Hardware Controller | Series Controllers RG-WS6000 |
| Exterior Certification | IP68 |
| Power | PoE IEE802.3bt 40w (optimum functionality)PoE IEE802.3at 25w (LAN port 2 cannot power devices)PoE IEE802.3af 12,95w (Only GPS and Bluetooth radios will be operational) |
| Power consumption | max 40w (10w in repso) |
| Operating temperature | -40 °C ~ 65 °C |
| Dimensions | 300 x 300 x 94 (without anchors) |
| Weight | 3,3Kg |
