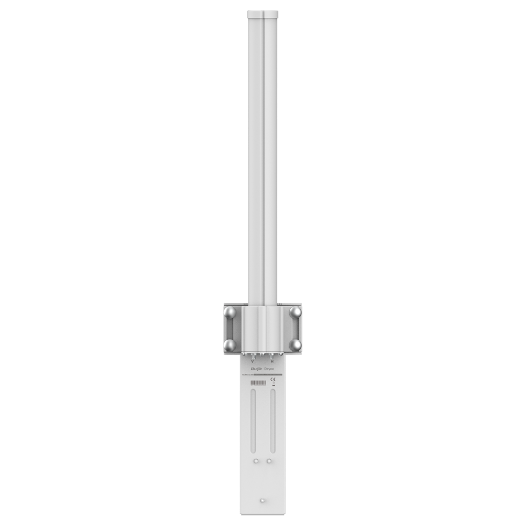

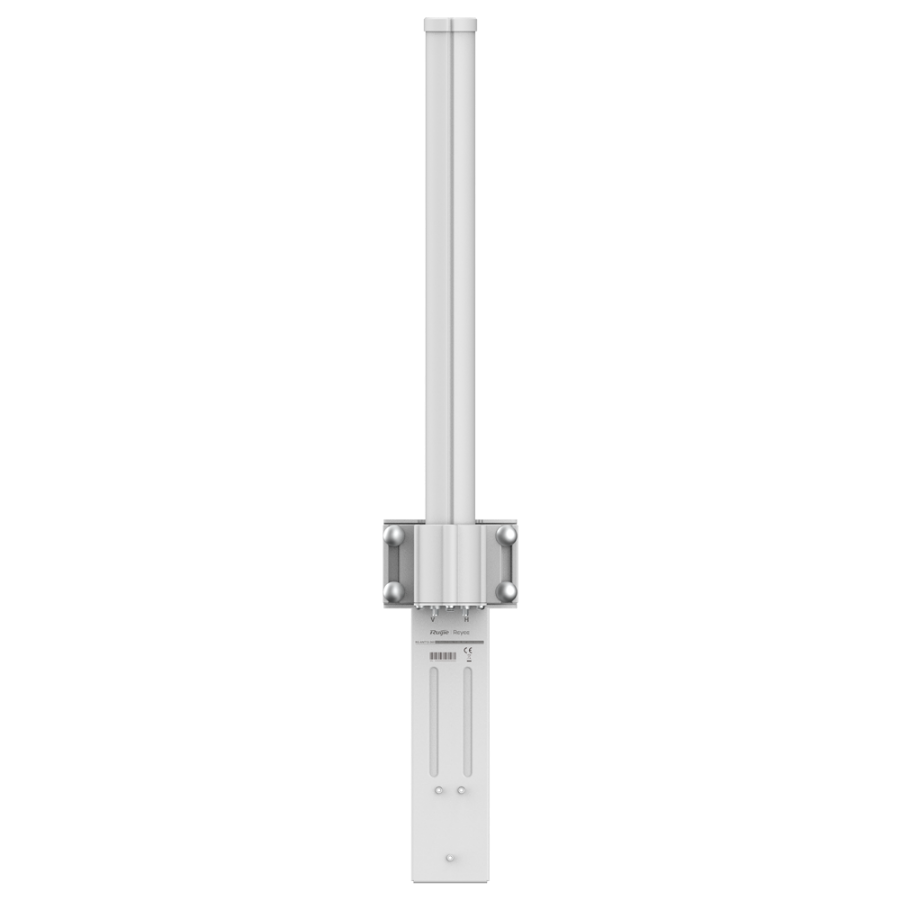

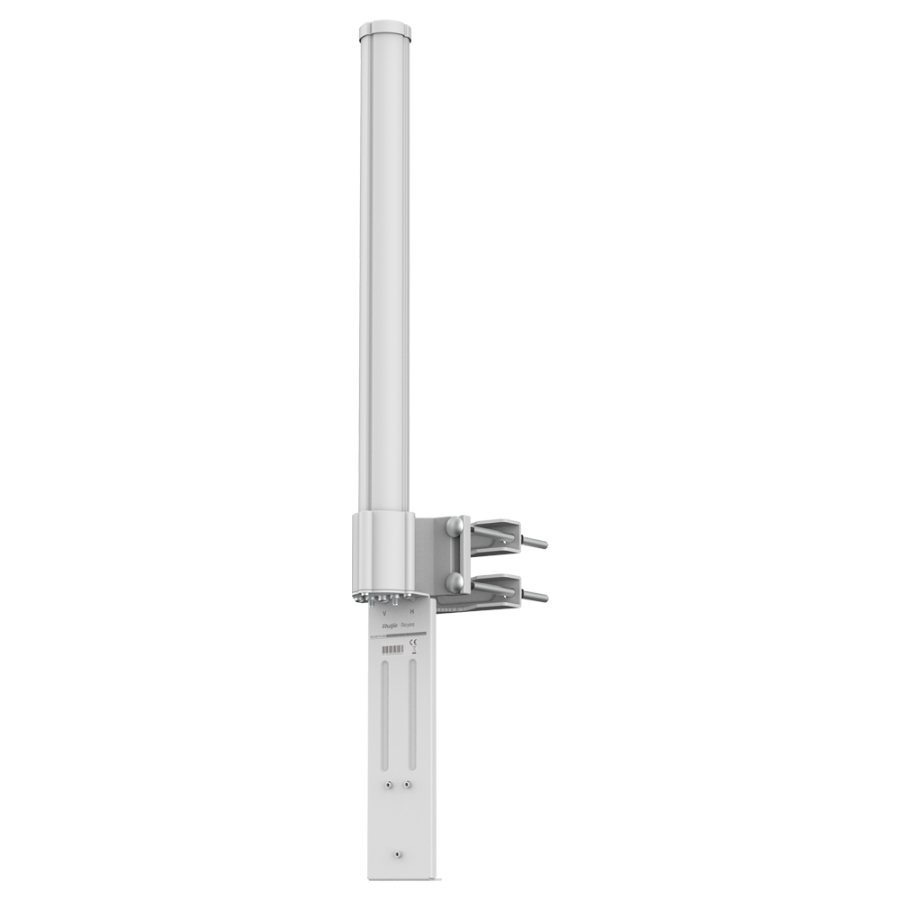

RG-ANT13-360


  • Reyee
  • Frequency 5.15 GHz 5.85 GHz
  • Passive antenna compatible with RG-AirMetro550G-B
  • Operating distance up to 2 km
  • IP55, suitable for exterior
  • 2x SMA Male connectors

Brand: REYEE
Šifra: RG-ANT13-360
GTIN: 6976915000135
320,53 EUR
Dostupno
Dostupnost Dostupno
Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal
Brand Reyee
Mode of operation Passive Antenna for RG-AirMetro550G-B (1 antenna type per unit)
SMA ports 2 x SMA Male for Dipole
Frequencies 5.15GHz – 5.85 GHz
Distance Up to 2 km (in ideal conditions)
Integrated antenna 13 dBi Dual Omnidirectional
Power No power supply required
Degree of IP Protection IP55
Dimensions 769 x 120 x 81.6mm
Weight 2.35 Kg
Beamwidth with Horizontal Polarization 360o
Beamwidth with Vertical Polarization 360o
Beamwidth in elevation 7o (3db)

  • Reyee
  • Omnidirectional passive antenna compatible with RG-AirMetro550G-B for high power 5 GHZ radio links
  • IP55 , suitable for outdoor use
  • This device is used assembled to the reference RG-AirMetro550G-B acting as passive antenna of the radio link electronics
  • 2 SMA Male Connectors
  • Horizontal coverage: 360°, vertical: 7°- No power supply required
  • Connection up to 2 km
