| Brand | Raedian |
| Connector | Type 2 with Socket Shutter |
| Charging mode | 3 Mode |
| Connection type | Three-phase |
| Maximum power | 7.4 KW single phase22 three-phase kW |
| Maximum current | 32 A |
| Voltage range | 230V single-phase400V three phase |
| Input frequency | 50/60 Hz |
| Authentication | Plug & ChargeRFIDBLE (via RAEDIAN App)OCPP 1.6 Backend |
| Connectivity | WiFi, BLE, 4G, LAN |
| Display | OLED screen: Status and measurement data |
| Load management | Direct to CT clamp (dynamic load balancing)A certified external meter (dynamic load balancing with solar surplus) with RS485Backend with OCPPStatic load management with the RAEDIAN App |
| HMI | LED Strips |
| Installation | Wall, pedestal |
| Cable supplied | No |
| Working temperature | -30? ~ +55? |
| Grounding | TN/TT/IT |
| Relative Humidity | 5 - 95% |
| Consumption in standby mode | 4.5W |
| Degree of protection | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 4.7 kg |
| Protection | UVP, OVP, OCP, Relay Stuck, Overtemperature, IEC residual current 62955 |
| Meter | MID Class B Certificate |
| Operating altitude | Up to 3000m |
| Colour | Metallic silver |

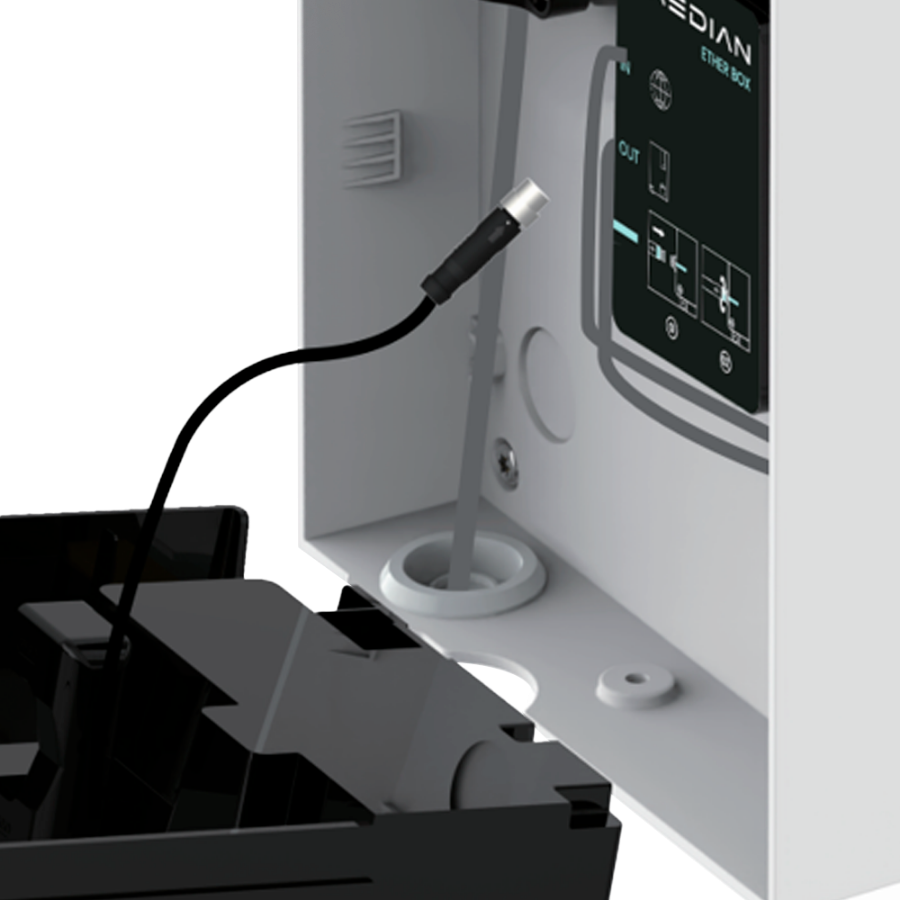

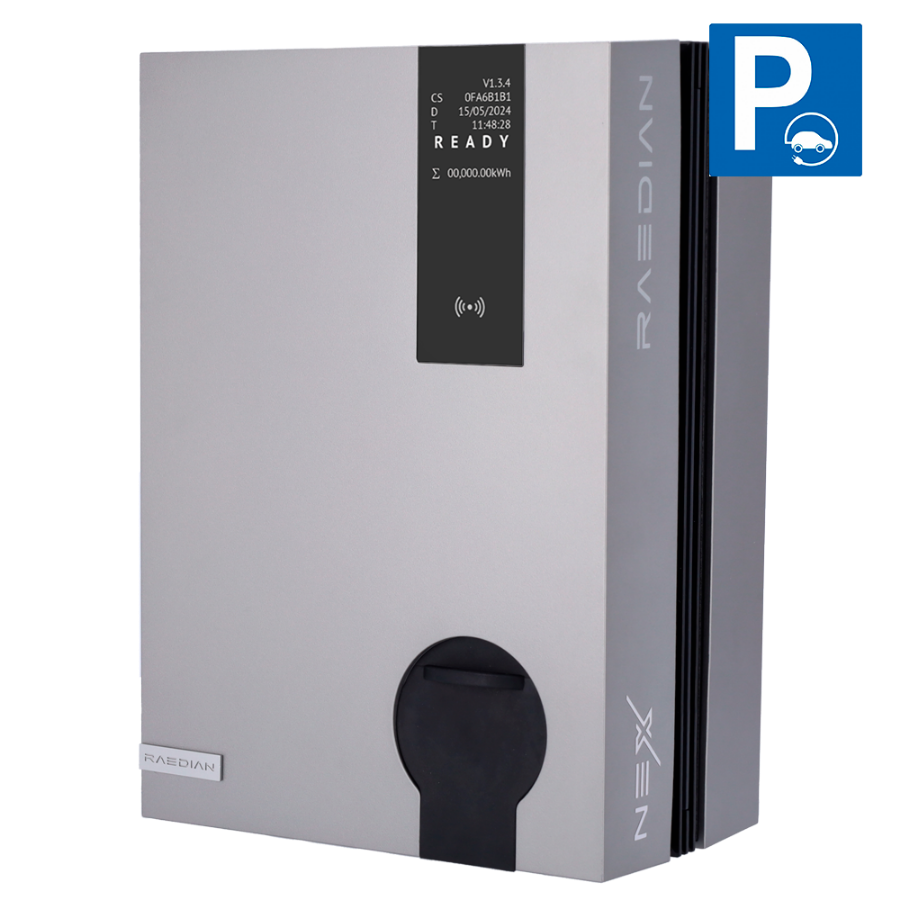

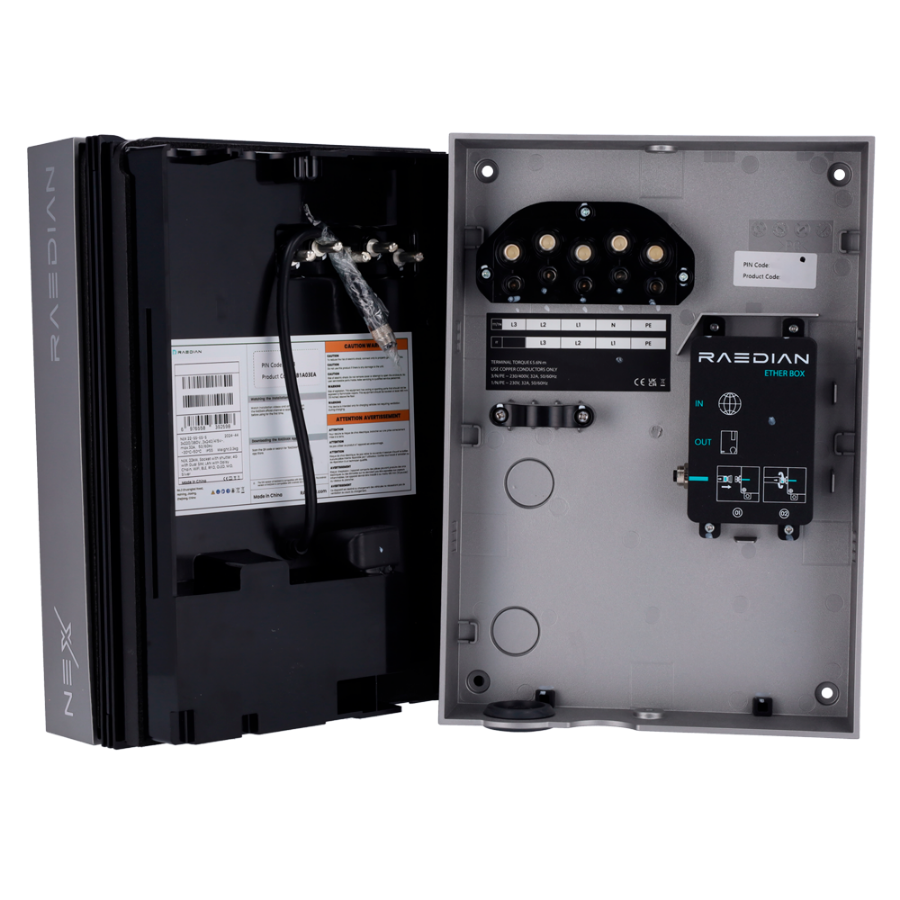

Raedian's NEX semi-public electric vehicle charger is the ideal solution for semi-fast charging of 100% electric and plug-in hybrid vehicles in semi-public environments such as a company or a neighborhood community. It features a sleek design and small size, which, together with its three possible inputs for power and communication cables, makes installation quick and easy.

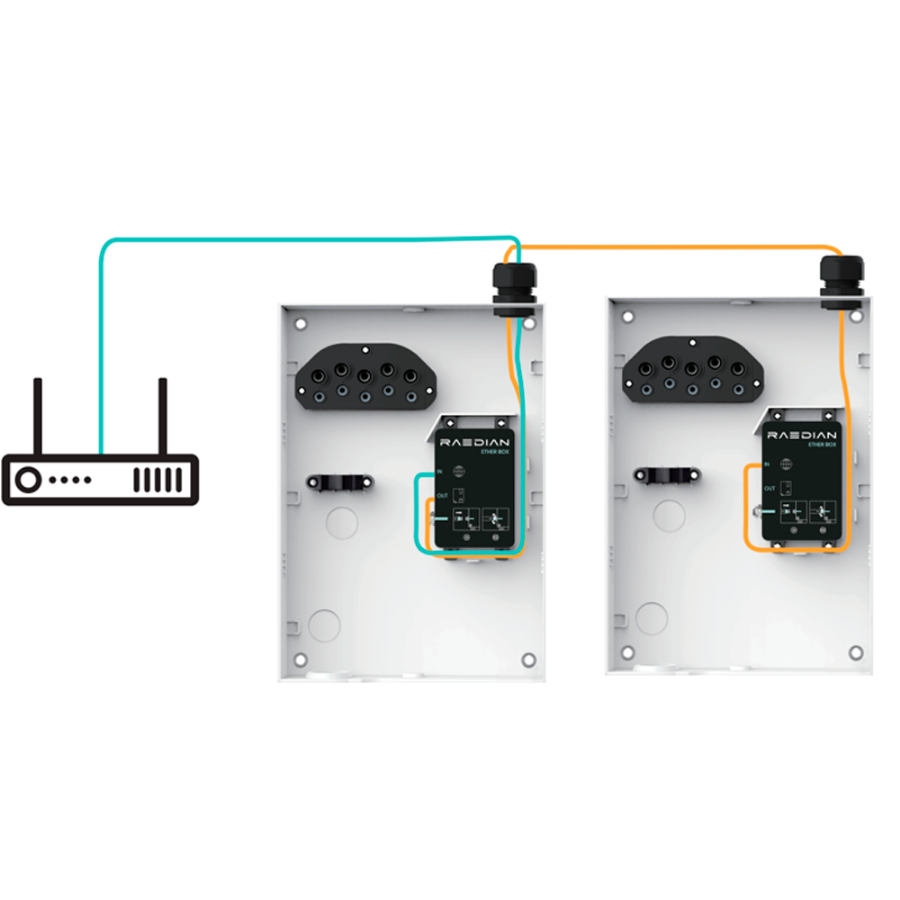

It features LAN connectivity to be able to scale the chargers, being possible to install up to 5 chargers per phase in series. It has input for LAN connection, which is used to perform dynamic load balancing between chargers by connecting it to the cloud, so that power is efficiently distributed between chargers based on usage and availability.
Using the Raedian app and the Nebula portal, you can monitor, control and schedule loads remotely. It has two RFID cards added, an ideal application for areas with more than one regular user.

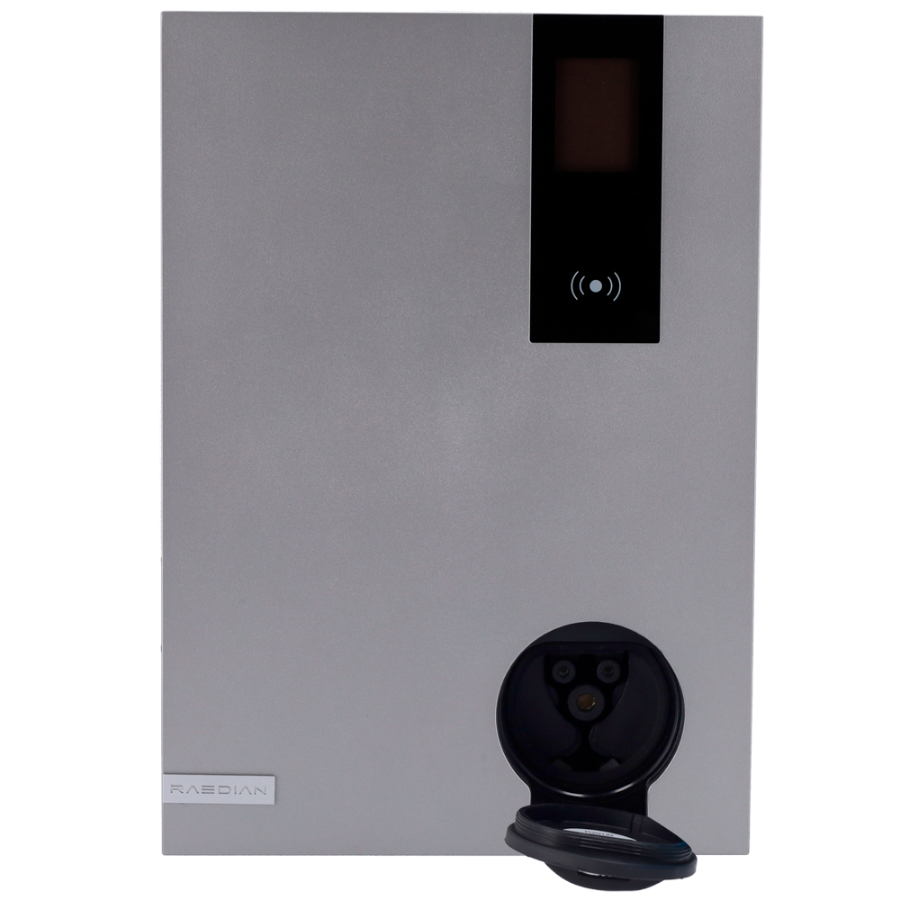

The RD-NEX-22-SS-SILVER model features Socket Shutter as an additional protection element.
