RD-NEO-7-C5-WHITE

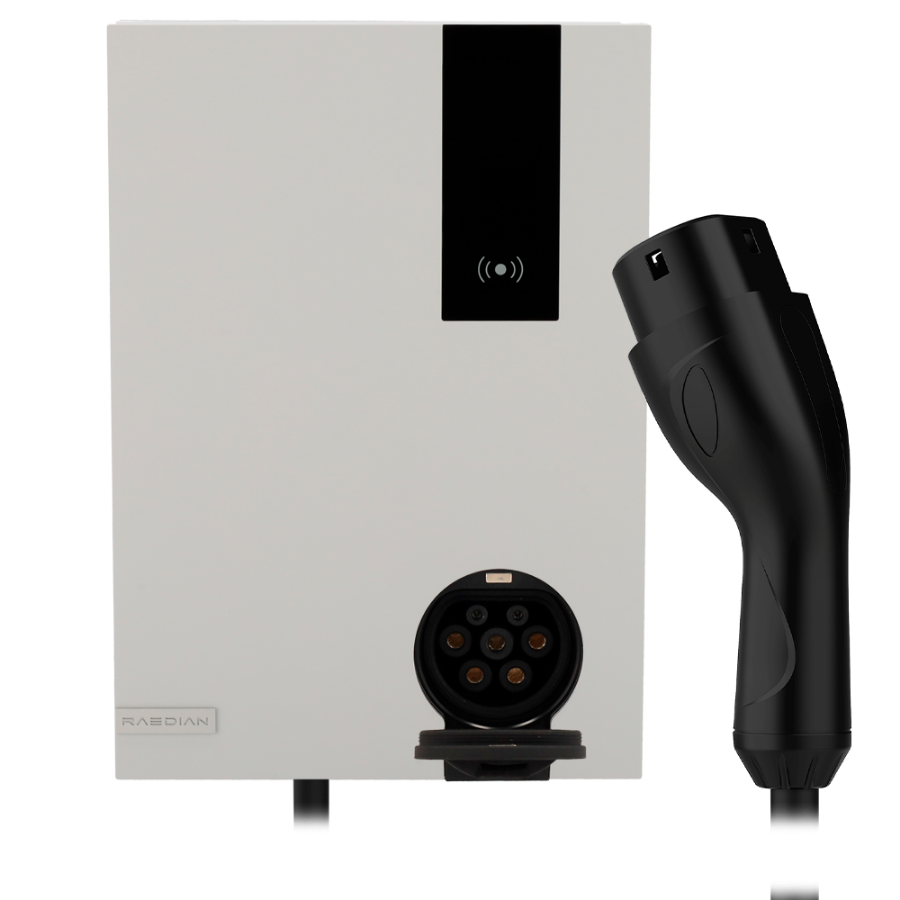

Raedian's NEO residential electric vehicle charger is the best solution for charging 100% electric and plug-in hybrid vehicles semi-fast in residential environments. It features a sleek design and small size, which, together with its three possible inputs for power and communication cables, makes installation quick and easy.

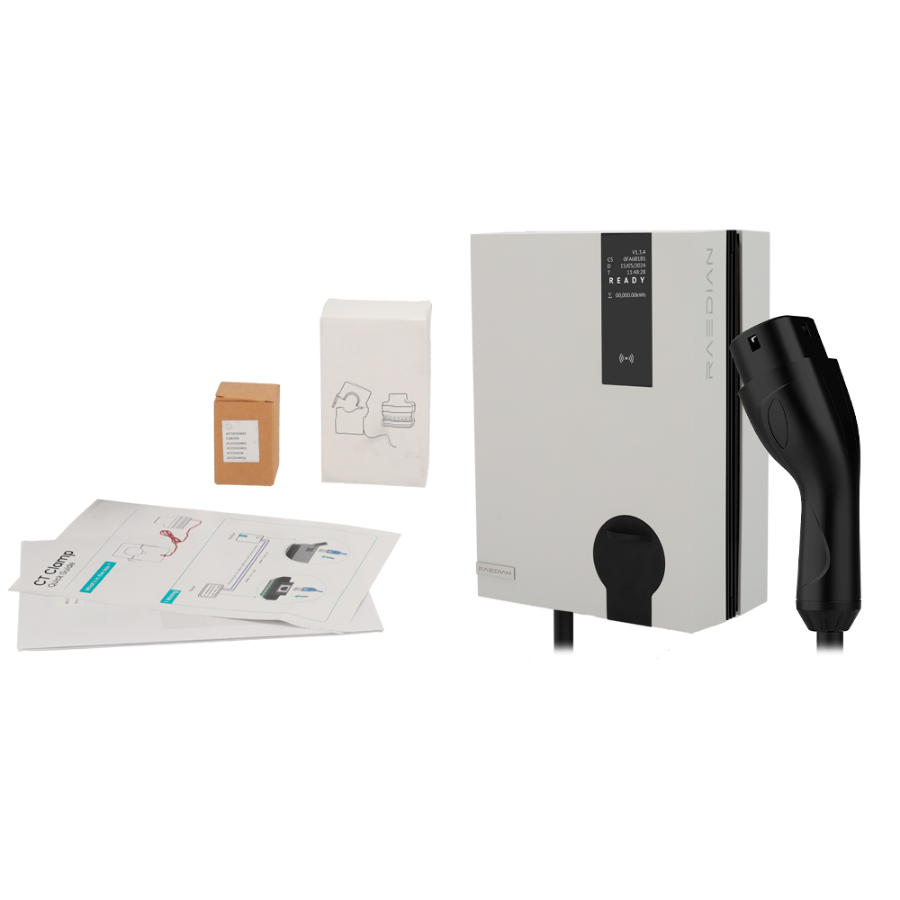

A toroidal clamp is added to read consumption data, so that load balancing can be performed and the vehicle load can be adapted to the consumption of the house, which avoids possible damage to the electrical installation. With an additional clamp, it is possible to take advantage of the solar surplus if there is a panel installation and charge the vehicle only with solar energy, resulting in a clean and free charge.

Through the Raedian app it is possible to monitor, control and schedule loads remotely, being also possible to activate and deactivate the load balancing mode. Two RFID cards are added, in case charging needs to be activated by this mode. This model has a 5 meter hose included for plugging into the vehicle.

• Raedian
• Residential EV charger
• Connector Type 2
• Load mode 3 (Semi-fast)
• Power 7,4 KW
• Single-phase connection
• Current 32 A
• Cable 5 m
• WiFi, BLE and RFID communication

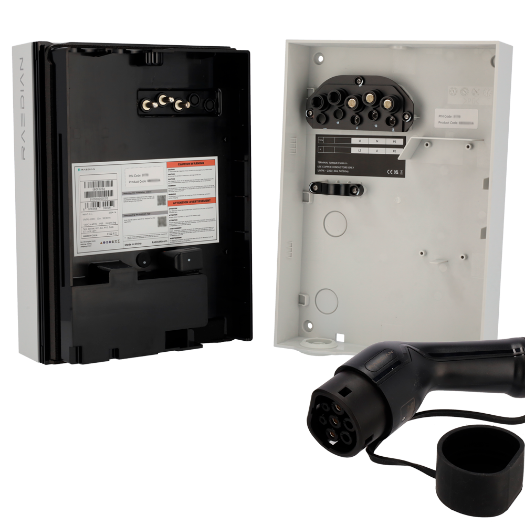

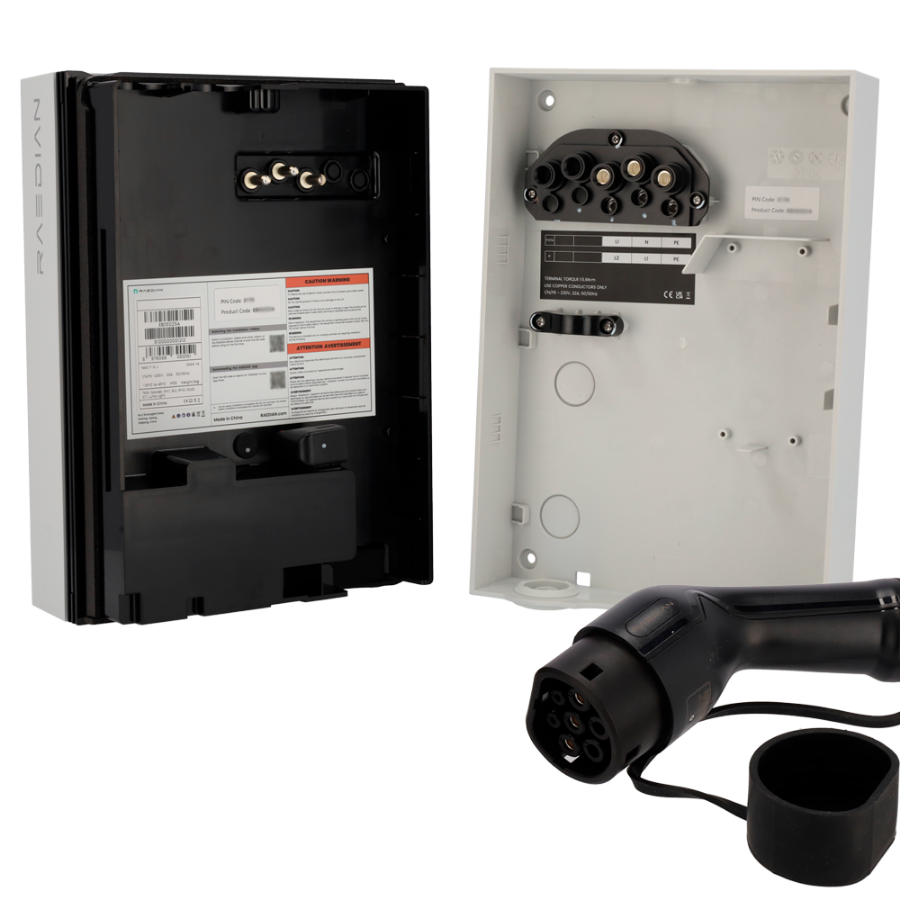

• 3 power and communication inputs
• Simple wall or pedestal installation

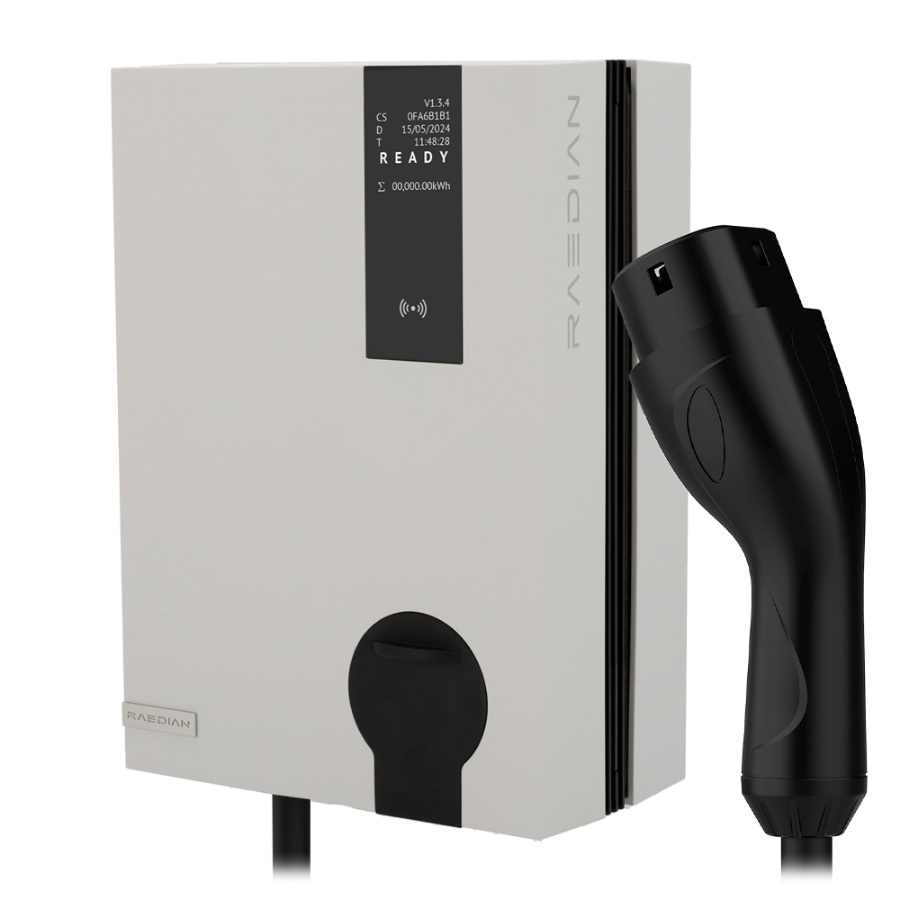

• OLED display for reading data
• Lunar white color
