| Brand | Raedian |
| Connector | Type 2 |
| Connection type | Three-phase |
| Maximum power | 22 kW |
| Maximum current | 32 A |
| Voltage range | 230-400V |
| Input frequency | 47 ~ 63Hz |
| Connectivity | WiFi, BLE, RFID |
| RFID Protocol | ISO 14443-A, ISO 14443-B |
| Third party RFIDs | MiFare Classic 1KMiFare 1KCard M1Fundan S50 |
| Charging interface | IEC 62196-2 |
| Installation | Wall or pedestal |
| Cable supplied | No |
| Working temperature | -40? ~ +60? |
| Relative Humidity | 0-95% no condensation |
| Cooling | By air |
| Consumption in standby mode | < 8W |
| Degree of protection | IP55, IK10 |
| Dimensions | 297 (H) x 210 (W) x 110 (D) mm |
| Weight | 3.2kg |
| Colour | Metallic silver |

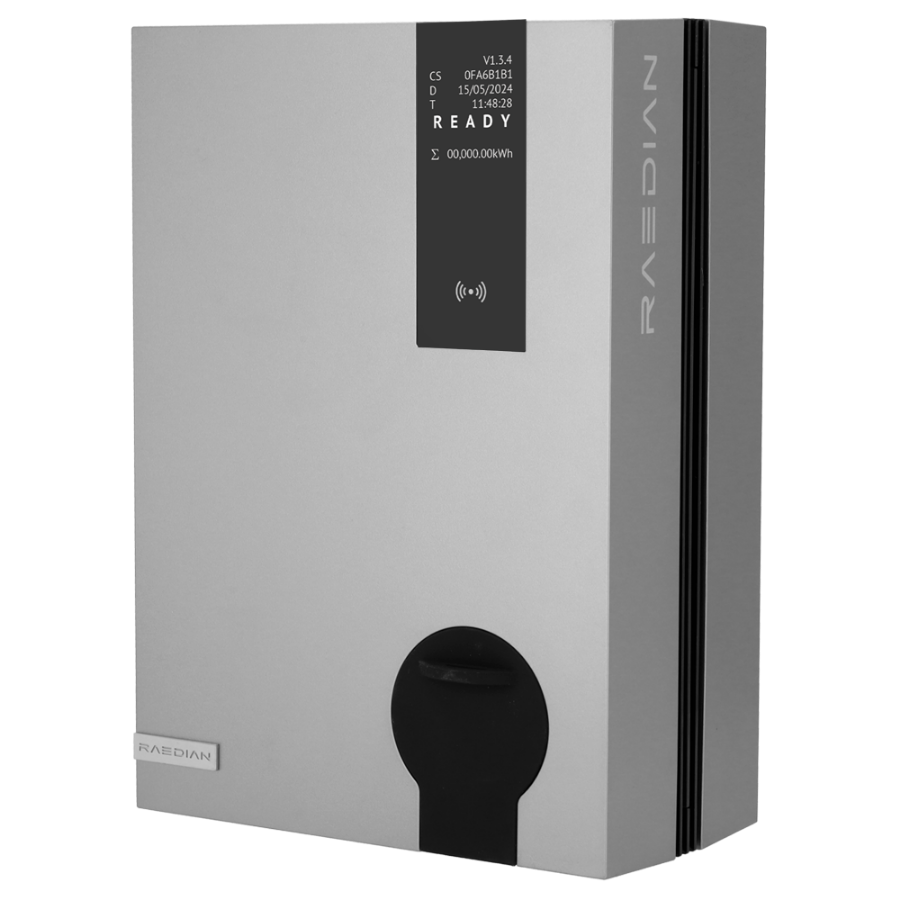

Raedian's NEO residential electric vehicle charger is the best solution for charging 100% electric and plug-in hybrid vehicles semi-fast in residential environments. It features a sleek design and small size, which, together with its three possible inputs for power and communication cables, makes installation quick and easy.
A toroidal clamp is added to read consumption data, in case of three-phase systems it is necessary to 2 additional clamps to perform load balancing and adapt the vehicle load to the consumption of the house, which prevents possible damage to the electrical installation.
Through the Raedian app it is possible to monitor, control and schedule loads remotely, being also possible to activate and deactivate the load balancing mode. Two RFID cards are added, in case charging needs to be activated by this mode.
