| Brand | Raedian |
| Device type | HUB for electric vehicle chargers |
| Electrical mesh | 3P + N + PE |
| Operating voltage | 230/400 Vac |
| Work frequency | 50/60 Hz |
| Maximum current | 80A |
| Load circuits | 1x 80A |
| Grounding | TN/TT/IT |
| Mounting | Wall, floor, base on floor |
| Surge protection | Type II (Type I + II optional)Rated discharge current 12.5kAMaximum discharge current 50kAMaximum voltage protection< 1.4kVMaximum impulse voltage 6kV |
| Differential protection | IEC EN 60947TMDInterruption capacity 25kARated impulse voltage 8kVOptional remote shutdown |
| Measurement | Accuracy class B with CT clamps |
| Operating temperature | -30 ~ 50oC |
| Operating altitude | 2000m |
| Environmental protection | IP65, IK10 |
| Dimensions | 800 x 460 x 250 mm |
| Weight | 25 kg |
| Certification | IEC/EN 60947, EN 61439-3, EN 50470 |

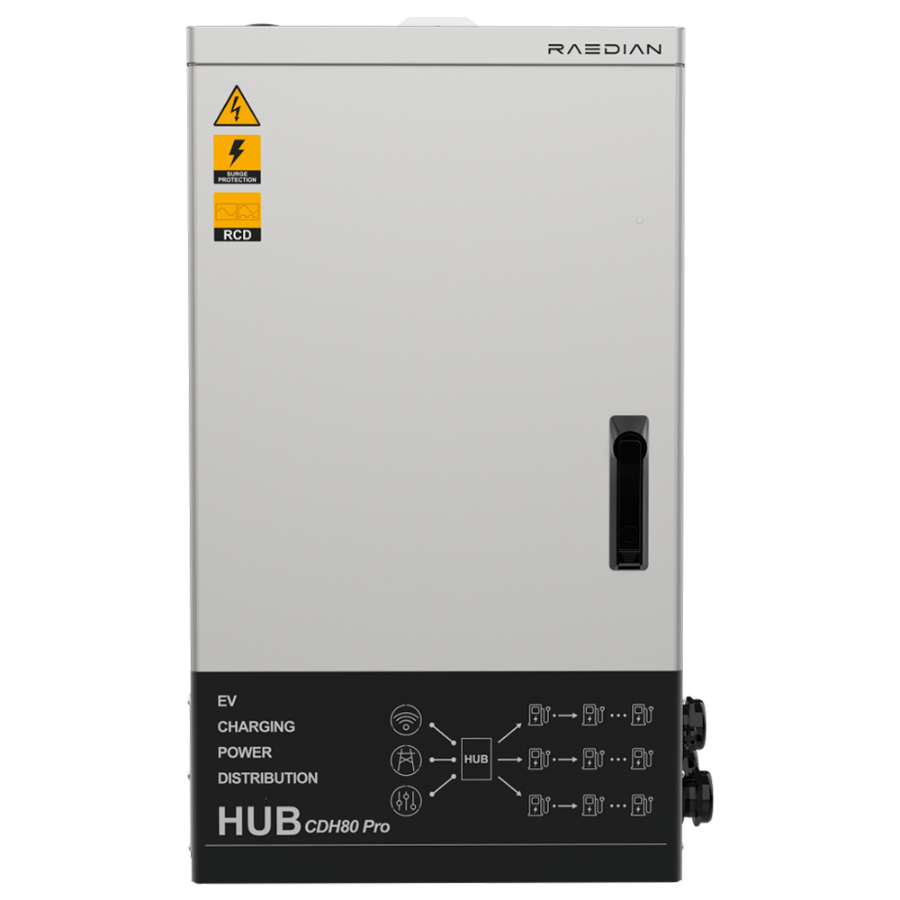

RAEDIAN's HUB range, together with the ECPC Unit power distribution units, is the perfect complement for daisy-chain installations of several NEX semi-public chargers.

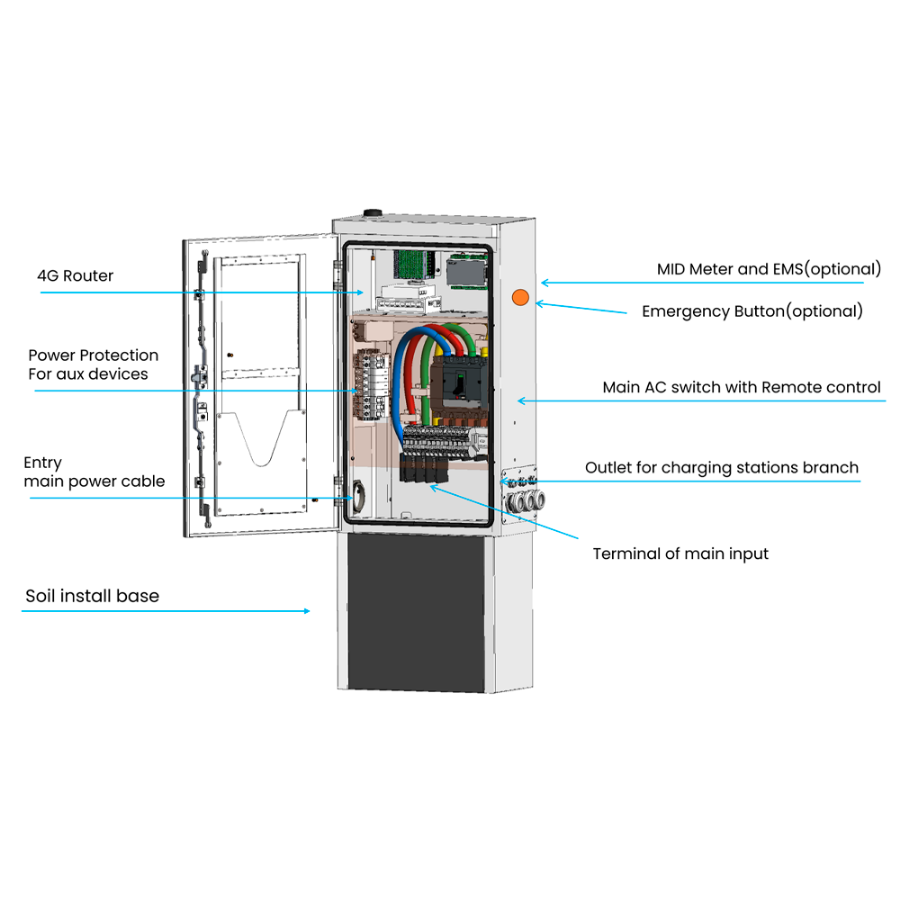

This hub is preconfigured, has the necessary electrical protections included and has space to include a router and to monitor the installation remotely through Raedian's NEBULA portal.
NEX chargers and ECPC units are connected in series to the Hub, which powers the entire system, saving cable and installation time, maximizing performance and safety.
