| Brand | Raedian |
| Device type | Smart Meter without wiring |
| Nominal voltage | Single phase 230VacThree-phase 230/400Vac |
| Consumption | <2 W |
| Corriente de entrada | 100A con pinzas 100A incluidas |
| Frecuencia de red | 50Hz |
| Montaje | Carril DIN |

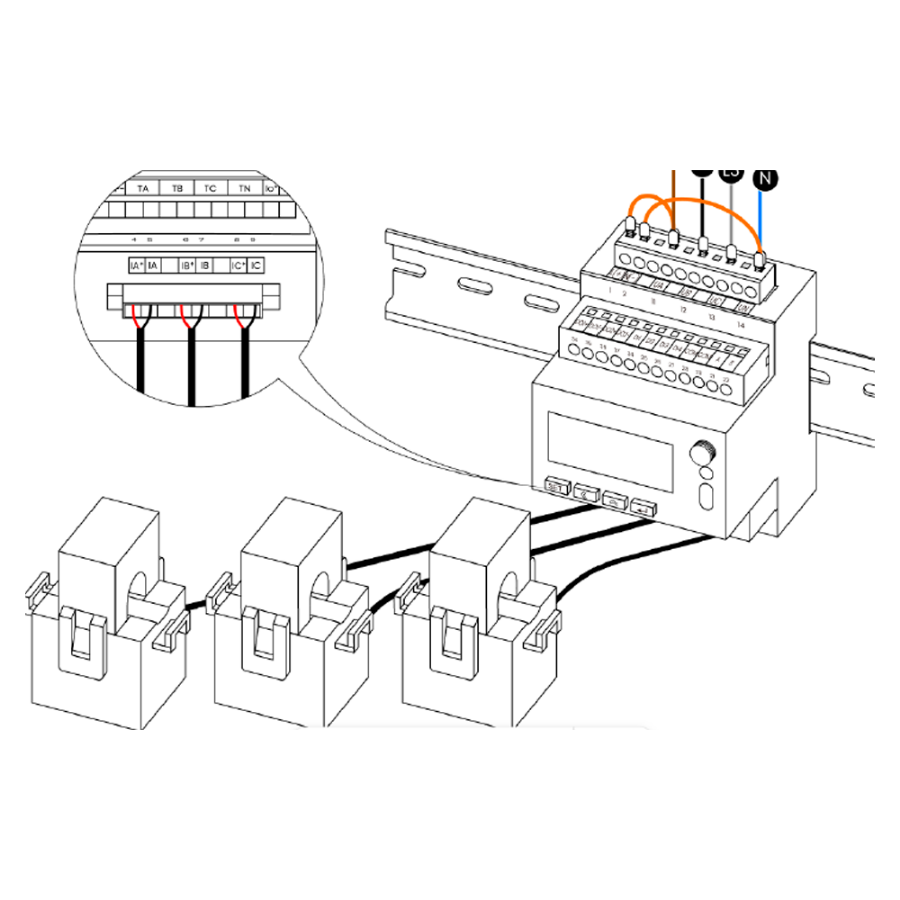

| Medición | Clase B (transformador de corriente dividido) |
| Temperatura de Funcionamiento | -25 ~ 55oC |
| Comunicación entre Smart Meter y cargador maestro | Wireless LoRa (470Mhz)RS485 (ModBus RT) |
| Comunicación entre cargadores | Wireless LoRa (470Mhz) |
| Tasa de baudios | 1200mbps |
| Compatibilidad | Cargadores NEX y GEMINI |
| Color | Blanco |
| Dimensiones | 92,6 (Al) x 72 (An) x 71,5 (Fo) mm |
| Tamano perforación CT | 10 mm |
| Constante de pulso | 400imp/kWh |
| Número máximo de equipos | 25 cargadores NEX/GEMINI |
| Rango antena | 40m entre Smart Meter y cargador maestro60m entre cargador maestro y último cargador esclavo100m en total |

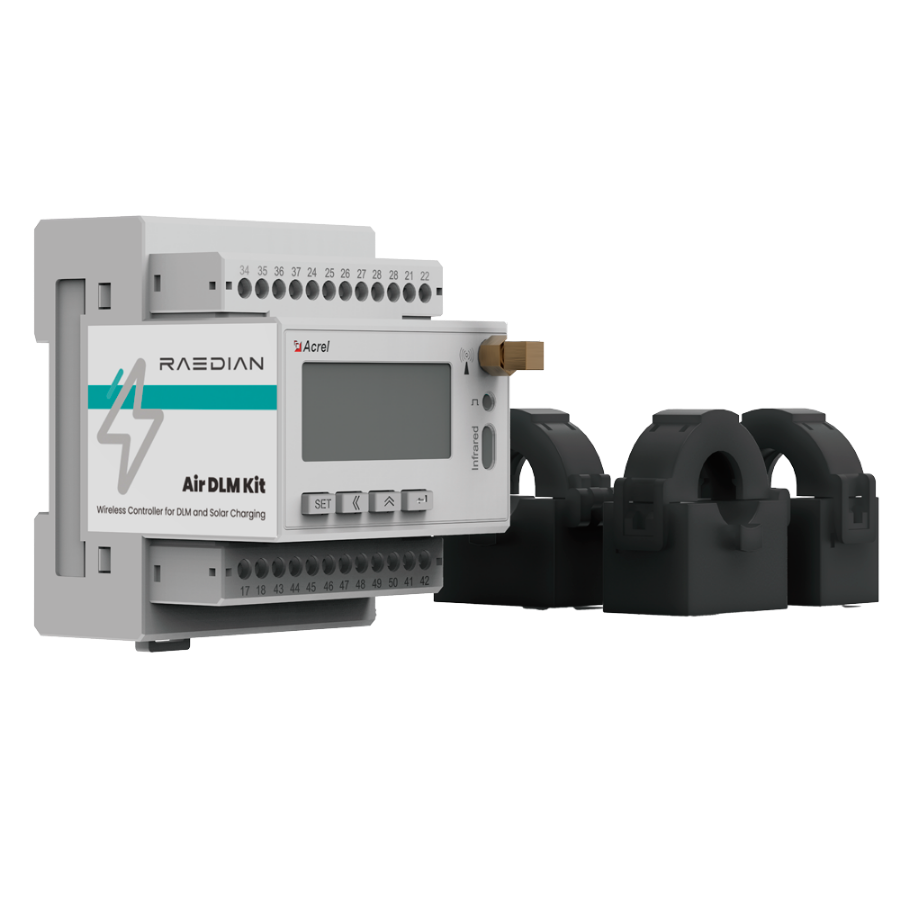

The Smart Meter RD-HDK-3CT is the ideal complement for the NEX and GEMINI range chargers, as it allows load balancing between the different chargers of an installation and with the available electricity itself.
All this implies, in a charger installation such as a community or public parking lot, an efficient charging of electric vehicles, optimizing the available energy in a safe way.

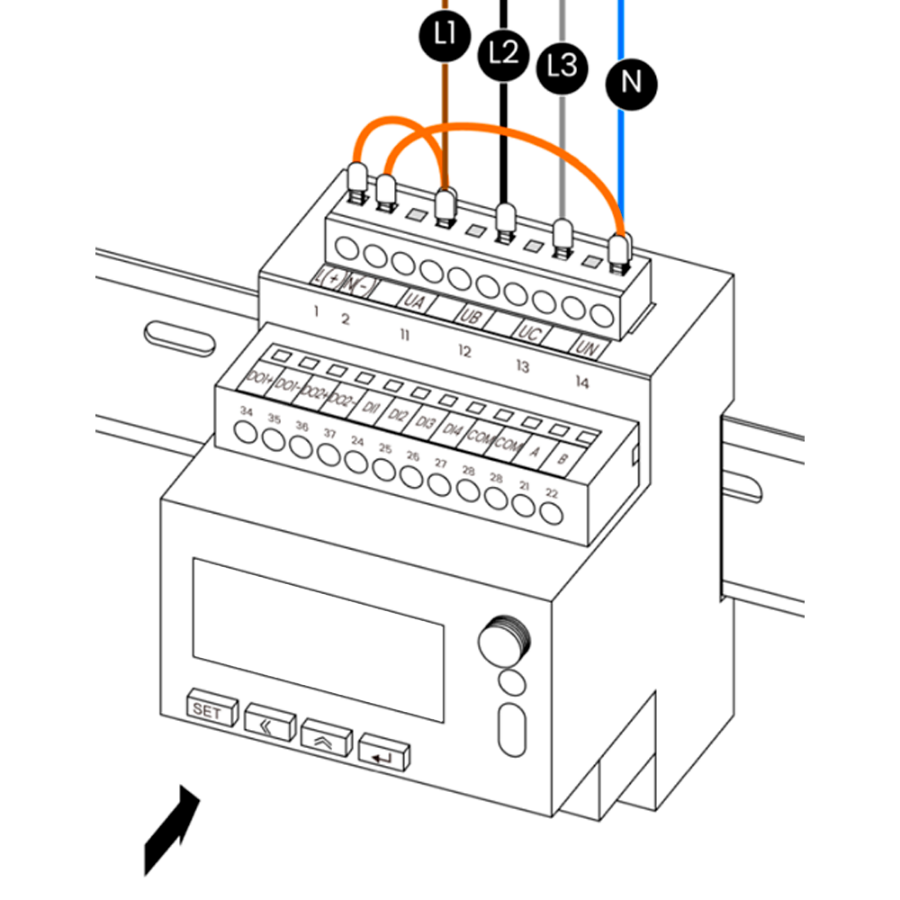

Installation is simple and the Smart Meter can be connected to the master charger wirelessly (LORA) or via communication cable. Connection between the master charger and the other chargers is done wirelessly.
