| Brand | Raedian |
| Connector | Type 2 with shutter |
| Charging mode | 3 Mode |
| Connection type | Three-phase |
| Maximum power | 2 x 22 kW |
| Maximum current | 32 A |
| Voltage range | 230V - 400V |
| Grounding | TN/TT |
| Input frequency | 50/60 Hz |
| Connectivity | WiFi 2.4 GHz BLE, 4G SIM2x LAN |
| Authentication | RFID ISO/IEC 14443A/B 13.56MHz 7 bytes maxOCPP Backend: RJ45 Ethernet, 4G LTE CAT I, LTE-FDD |
| HMI and indicators | RGB LED RingButton panel of 3 pushbuttons |
| Installation | Wall, pedestal or free-standing post |
| Material | Reinforced aluminum alloy |
| Cable supplied | No |
| Working temperature | -30? ~ +50? with power reduction mechanism (1 takes 22KW or 2 takes 11KW) -30? ~ +40? with power reduction mechanism (2 sockets 22KW) |
| Relative Humidity | 5 % - 95 % |
| Electrical safety class | Class I |
| Consumption in standby mode | 17.5 W |
| Degree of protection | IP55, IK10 (casing), IK08 (display) |
| Operating altitude | 2000m |
| Dimensions | 544 (H) x 315.6 (W) x 194 (D) mm |
| Weight | 19.5 kg |
| Protection | UVP, OVP, OCP, Relay Stuck, OvertemperatureResidual current 6mA according to IEC 62955 |
| Meter | MID Class B Certificate |
| Load management | Dynamic load control via NEBULA portalLoad management with the OCPP backend |
| Contactless Payment | EMVCo Certificate. L1 v3.0 Desfire Protocol EV2/3?ISO18092: NFC protocol |
| LED Display | Total advertising. 8 inches, 1024 x 768 mm |

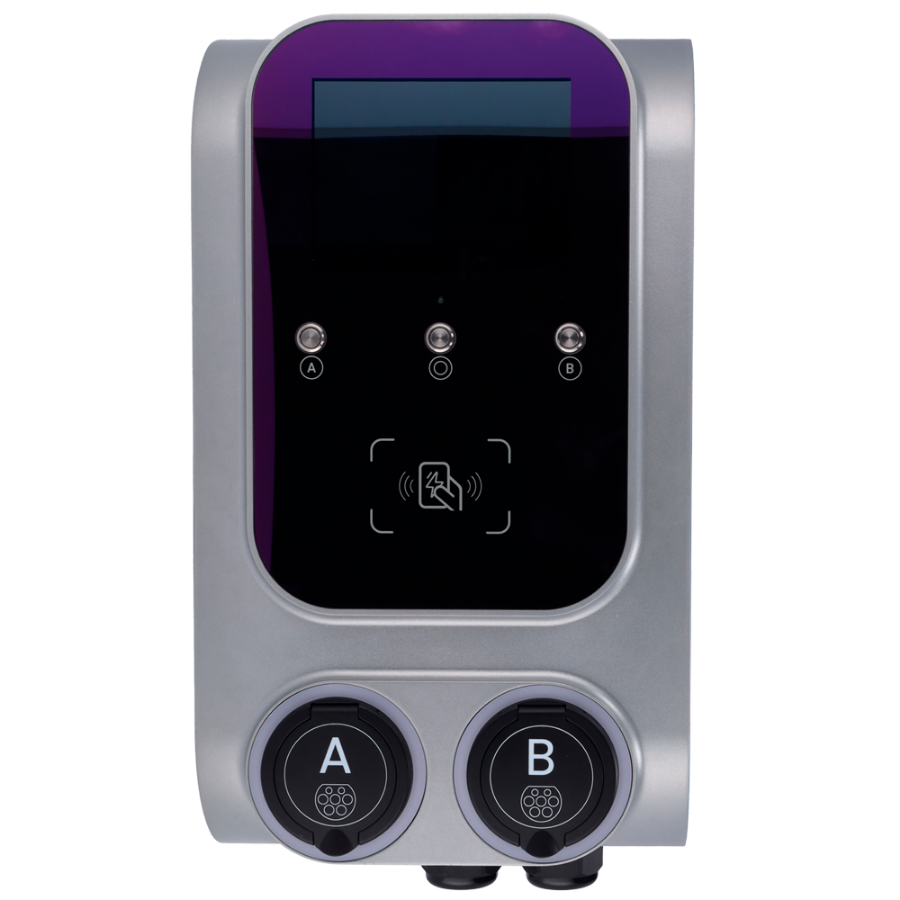

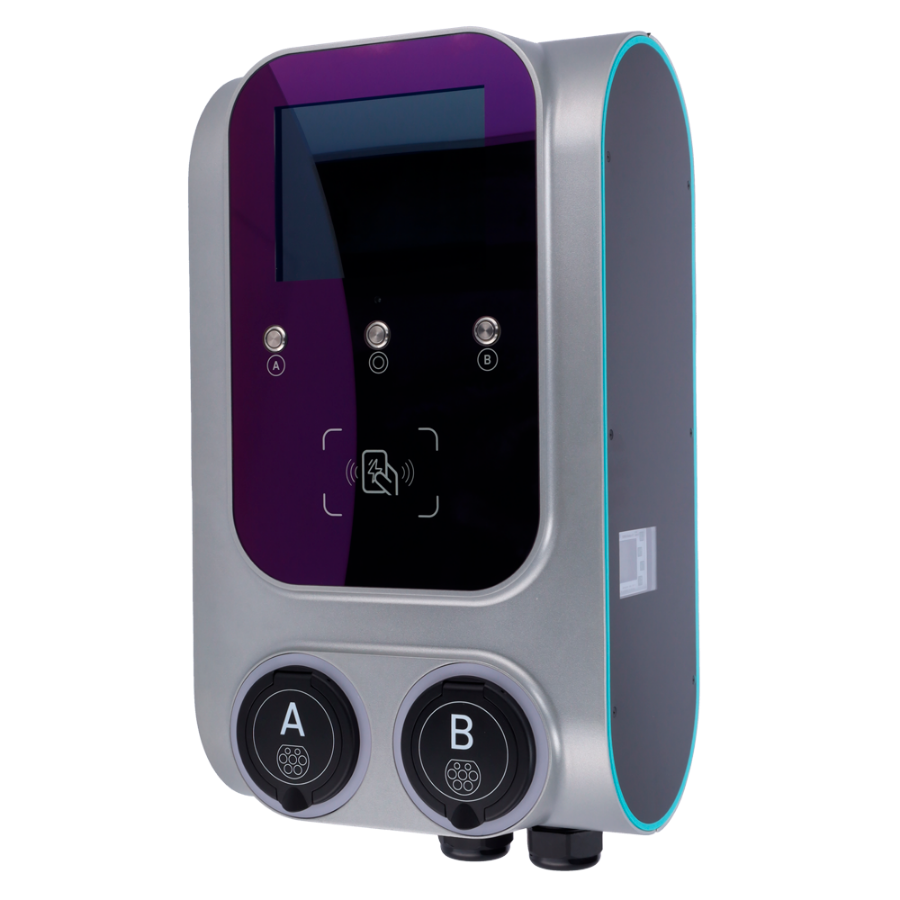

Raedian's GEMINI electric vehicle charger is an ideal solution for public environments, such as shopping centers, warehouses, offices or parking lots.
It features a sleek, vandal-resistant design, plus 2 outlets with 22 KW each, making it capable of charging two electric vehicles at high power with a single unit. You can connect to the Raedian monitoring portal with the built-in SIM, or via LAN or WiFi.
Quick to set up and can be installed on a pedestal, wall or pole. Together with other chargers, it can dynamically manage the load. In addition, it features an external advertising display.

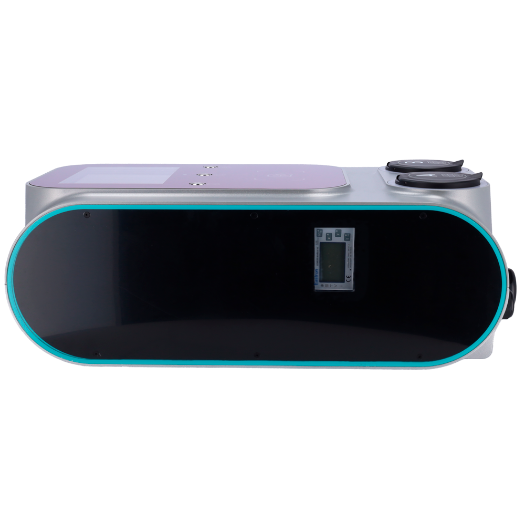

The RD-GEMINI-22WD-SS-M1-P0 model features RFID reader for contactless payment using third-party applications. It is also equipped with a MID certified meter for reliable and safe measurement.
