| Brand | Qeclink |
| Model | GV50CG |
| Installation | Hidden under hood |
| Operating band | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE data transmission | LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
| Frequency | 850/900/1800/1900 MHz |
| GSM data transmission | EDGE: (DL)236,8 Kbps/(UL)236,8 KbpsGPRS: (DL)85,6 Kbps/(UL)85,6 Kbps |
| GNSS type | All-in-one GNSS receiver |
| Constellations supported | GPS,Beidou |
| Sensitivity | Cold start: -147dBm Hot start: -155 dBm Tracking: -160 dBm |
| Location Accuracy (CEP) | Autonomous: < 2m |
| First position (TTFF) - open field | Cold start: 28 seconds approx Hot start: 1 second approx |
| Dimensions | 76(LA) × 39(AN) × 16(AL) mm |
| Weight | 71.5g |
| Backup battery | Lithium Polymer, 190 mAh |
| Working voltage | 9V ~ 90V DC |
| Working temperature | -30? ~ +70? -40? ~ +80? for storage |
| Message buffer | Up to 10000 messages |
| Digital inputs | A (1) positive trigger input for ignition detection |
| Configurable Inputs | One (1) input configurable for analog input (0 V ~ 16 V) or negative input |
| Interlocked Digital Output | One (1) digital output with internal latching circuit, open drain, maximum drive current of 150 mA |
| Cellular antenna | Internal only |
| GNSS Antenna | Internal only |
| LED indicators | CEL, GNSS |
| Micro USB interface | For configuration, updating and debugging |
| Transmission Protocol | TCP, UDP, SMS |
| Scheduled report | Report position and status based on preset time intervals, distance, mileage or a combination of these settings |
| Geo-fence | Geo-fence and parking alarm, supports up to 20 regions |
| Speed alarm | Flexible speed monitoring, with abnormal speed alarm |
| Low battery alarm | Notifies alarm when battery is low |
| Trawl alarm | Trailer alarm in off state |
| Driver behavior | Detect aggressive driver behaviors, including hard braking, hard acceleration, etc. |
| Collision detection | Collect crash data for reconstruction and analysis |
| Remote control | Digital output OTA control |
| SOS Alarm | Report of alarm message triggered by the emergency button |
| Virtual Ignition Detection | Based on voltage and accelerometer |
| Interference Detection | Alarm based on interference detection |

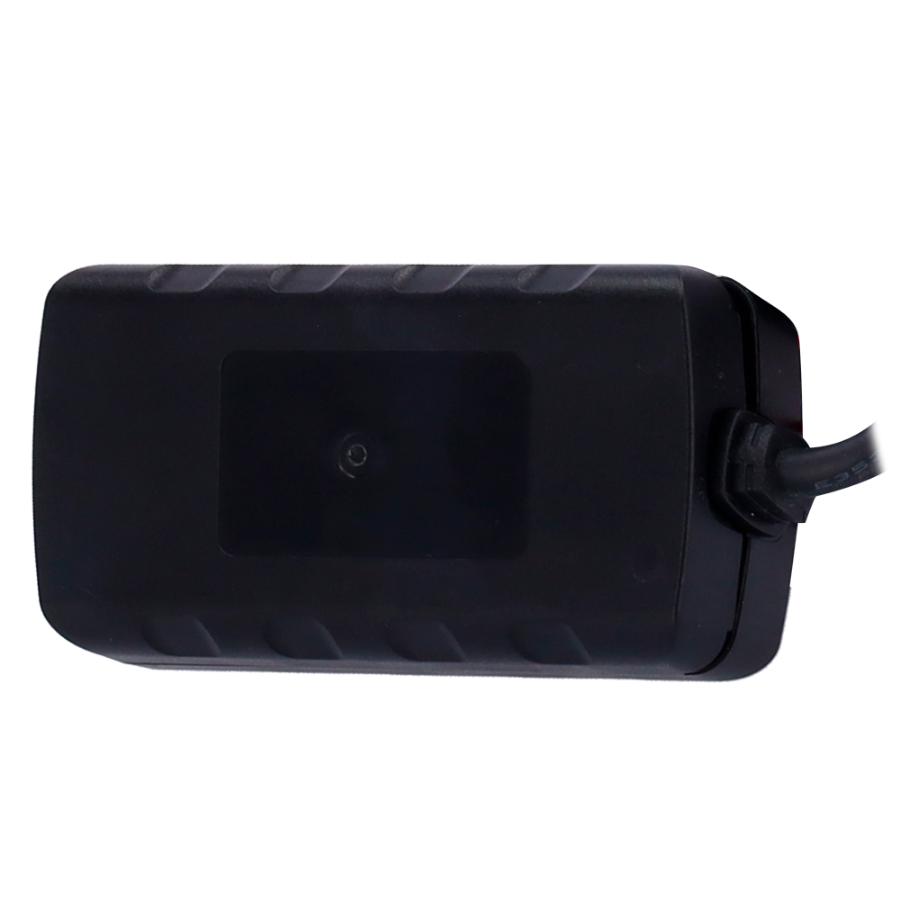

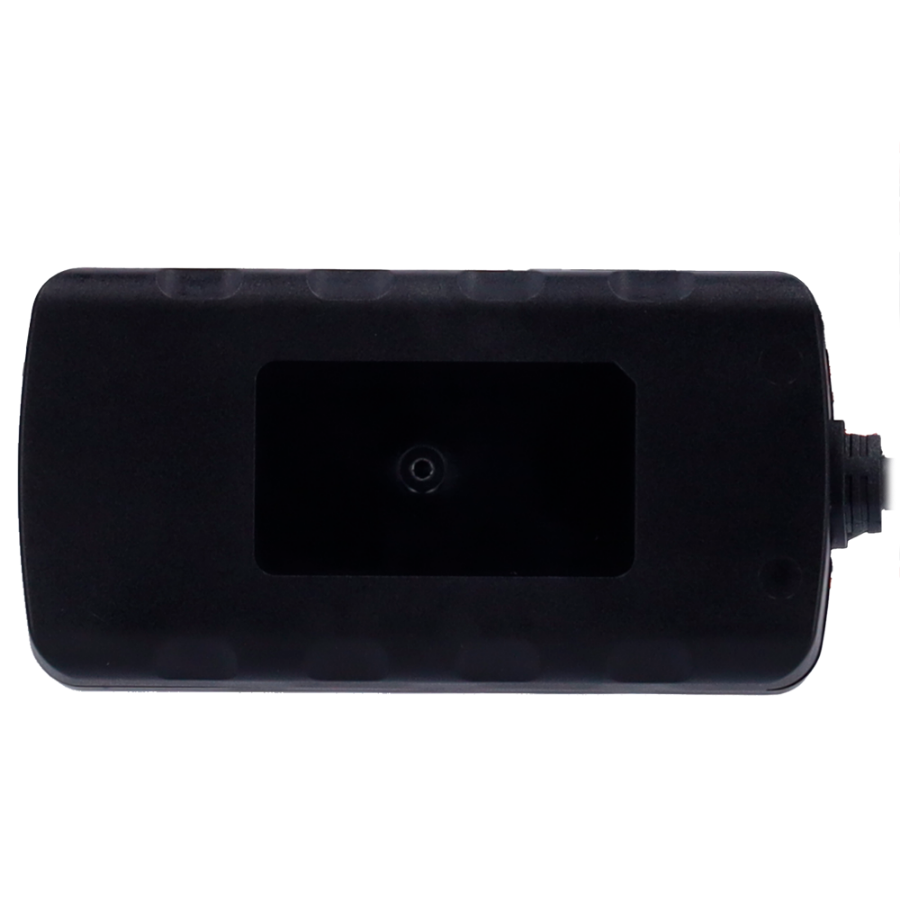

The GV50CG is an entry-level, cost-effective 2G GNSS Cat1 LTE backup [%VAR%] GNSS tracker. Extremely compact design for concealed installation. Its compact size and powerful features make it an ideal choice for various transportation surveillance applications, such as vehicle financing, stolen vehicle recovery, vehicle leasing and logistics.
