| Brand | Queclink |
| Model | GV500MAP |
| Installation | OBD port |
| Operating band | Cat 1:LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28 |
| LTE data transmission | eMTC (DL) 375 KbpseMTC (UL) 375 KbpsNB1 (DL) 32 KbpsNB1 (UL) 70 Kbps |
| Work frequency | GSM850/GSM900/GSM1800/GSM1900 MHz |
| EGPRS data transmission | GPRS: multi-slot class 33 (33 by default)EDGE: multi-slot class 33 (33 by default) |
| GNSS type | U-blox GNSS all-in-one receiver |
| Sensitivity | Autonomous: -147 dBmHot start: -156 dBmReconnection: -160 dBmOn the move: -162 dBm |
| Positioning accuracy (CEP) | Autonomous: < 2.5m |
| TTFF (open field) | Cold start: 27s approxIntermediate start: 27s approxHot start: 1s approx |
| Dimensions | 49.49(LA) x 48.5(AN) x 21.9(AL) |
| Weight | 58g |
| Battery | Lithium polymer, 60 mAh |
| Working voltage | 8V ~ 32V DC |
| Working temperature | -30 ? ~ +80 ?-40 ? ~ +80 ? (storage) |
| BLE | BLE support 4.2 |
| Cellular antenna | Internal only |
| GNSS Antenna | 2 internal antennas for better signal quality |

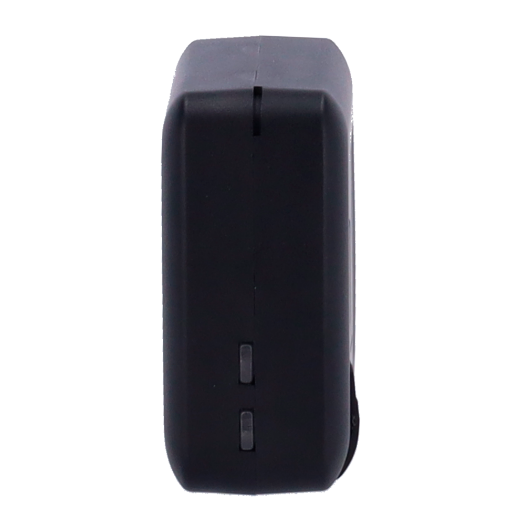

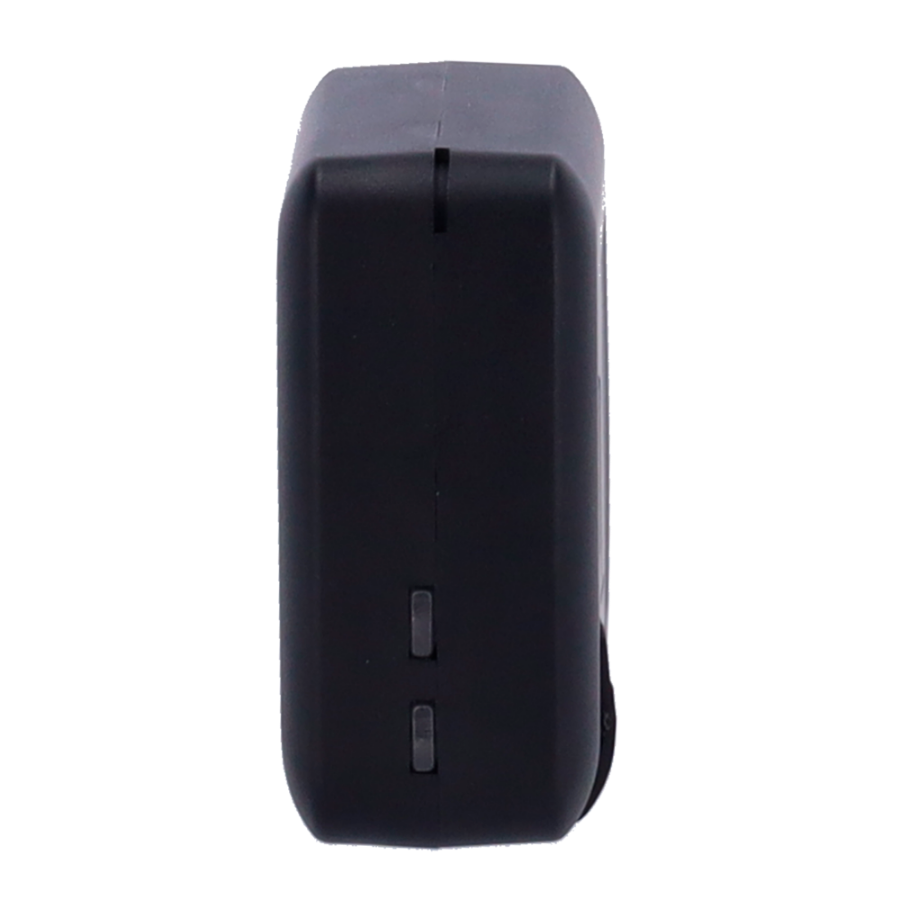

| LED indicators | CELL, GNSS |

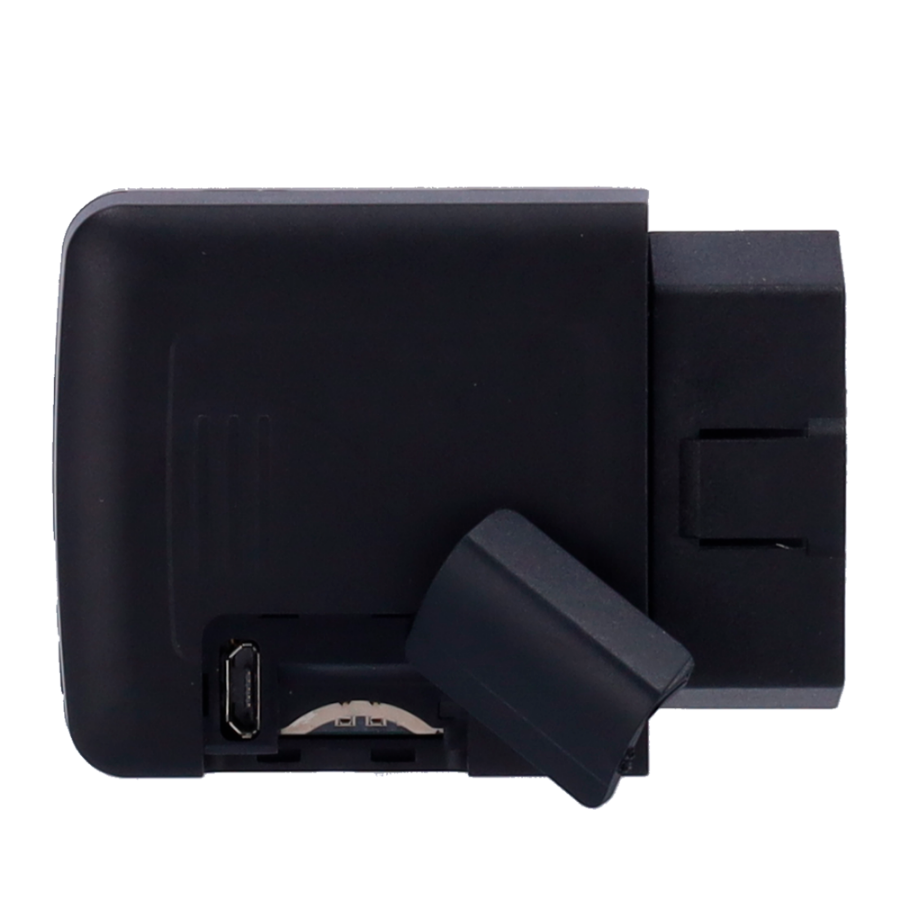

| Micro USB | Port for updating and debugging |

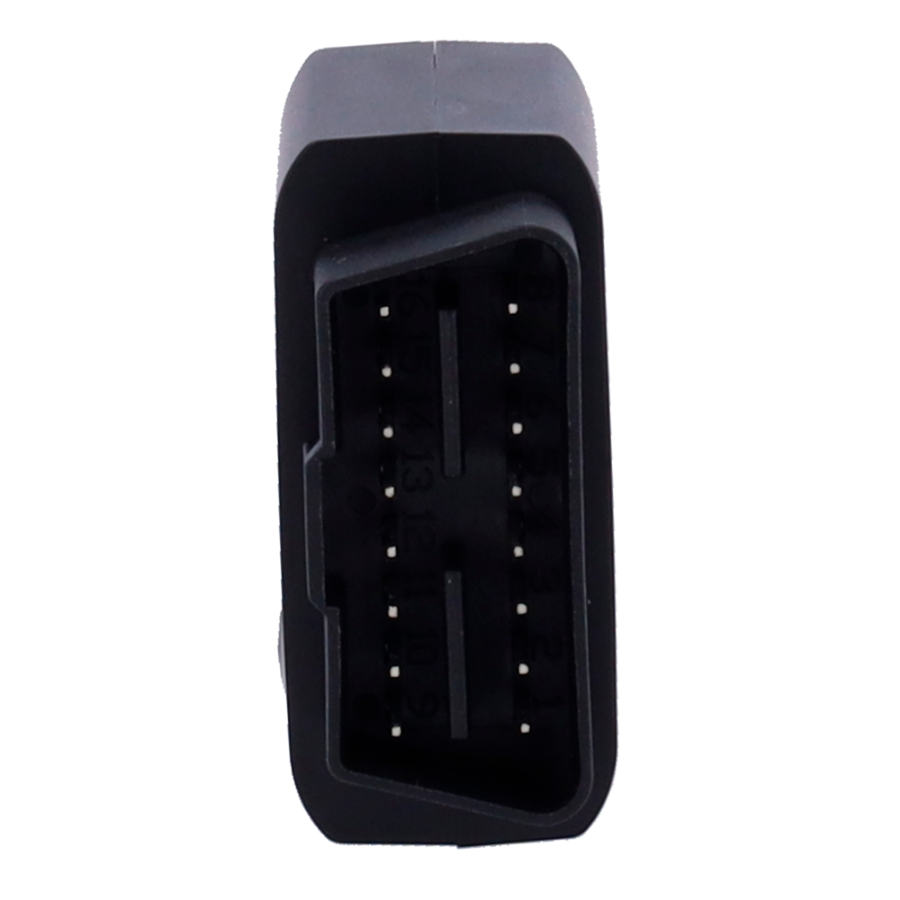

| OBDII | Allows reading information in the ISO protocol 15765Supports vehicles manufactured after 2008 and supplied in the US |
| Transmission protocols | TCP, UDP, SMS |
| Programmable reports | Reports position and status based on preset time intervals |
| OBDII disconnection detection | Reports OBDII connection/disconnection status |
| Geo-fence | Geo-fence alarm, parking, supports up to 20 regions |
| Battery report | Low battery notification |
| Ignition report | Notifies when the device is turned on/off |
| Trawl alarm | Notifies when the vehicle is towed while the power is off |
| Driver monitoring | Monitors aggressive behavior, including hard braking, acceleration, etc... |
| Collision detection | Gather information for accident reconstruction and analysis |

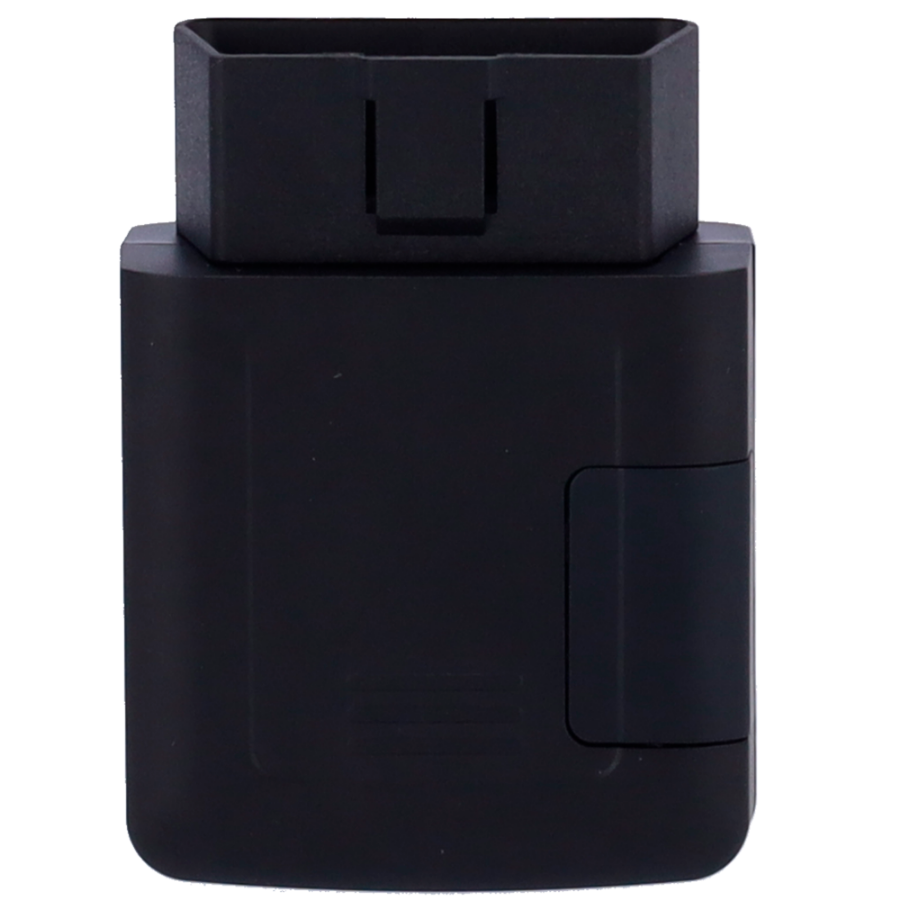

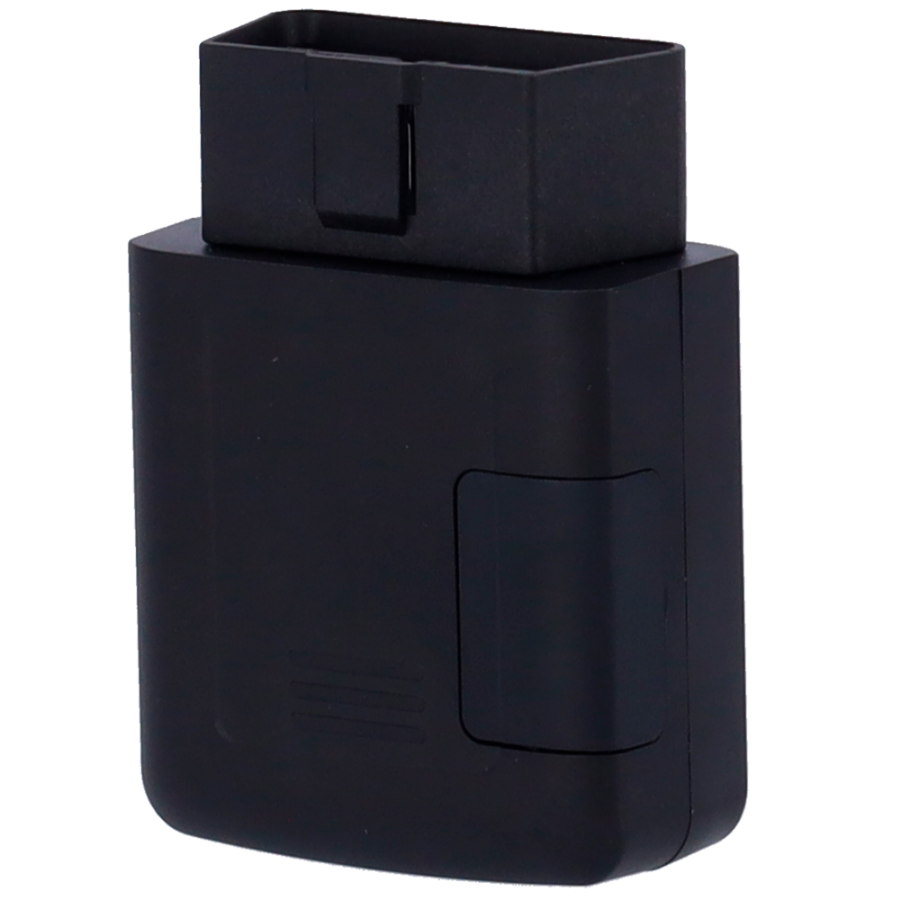

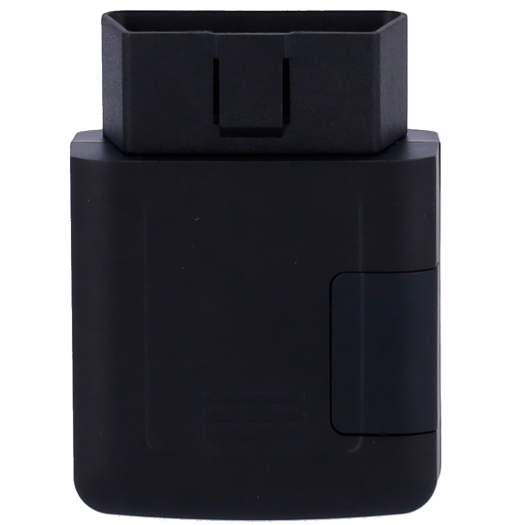

The GV500MAP is a compact LTE product designed with OBDII port for plug and play installation. Self-adjusting GPS antenna design ensures the best GPS performance for applications including light truck tracking, breakdown assistance, dealer management and novice driver monitoring. The GV500MAP collects standard vehicle data, such as VIN, odometer and also diagnostic trouble codes (DTCs) for vehicle maintenance applications.
