| Brand | Queclink |
| Model | GV500CG |
| Installation | OBD port |
| Operating band | Cat 1:LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE data transmission | LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL) |
| Work frequency | GSM850/GSM900/GSM1800/GSM1900 |
| GSM data transmission | GPRS:(DL)85.6Kbps/(UL)85.6KbpsEDGE:(DL)236.8Kbps/(UL)236.8Kbps |
| GNSS type | All-in-one GNSS receiver |
| Sensitivity | Autonomous: -147 dBmHot start: -163 dBmReconnection: -160 dBmOn the move: -165 dBm |
| Positioning accuracy (CEP) | Autonomous: < 2.0m |
| TTFF (open field) | Cold start: 24s approxIntermediate start: 24s approxHot start: 1s approx |
| Dimensions | 50(LA) x 46(AN) x 23(AL) |
| Weight | 41g |
| Battery | Lithium polymer, 3,7 V, 60 mAh |
| Working voltage | 8V ~ 32V DC |
| Working temperature | -20 ? ~ +60 ?-40 ? ~ +80 ? (storage) |
| Message buffer | Up to 10000 messages |
| BLE | BLE support 5.2 |
| Cellular antenna | Internal only |
| GPS Antenna | Internal only |
| LED indicators | CELL, GNSS, PWR |
| Micro USB | Port for configuration and FW update |
| OBD | For food only |
| Transmission protocols | TCP, UDP, SMS |
| Programmable reports | Reports position and status based on preset time intervals, distance, mileage, or a combination of these settings. |
| Geo-fence | Geo-fence alarm, parking, supports up to 20 regions |
| Battery report | Low battery notification |
| Ignition report | Notifies when the device is turned on/off |
| Trawl alarm | Notifies when the vehicle is towed while the power is off |
| Inhibition detection | Interference detection based alerting |
| Virtual boot detection | Based on voltage and accelerometer |
| Driver monitoring | Monitors aggressive behavior, including hard braking, acceleration, etc... |
| Collision detection | Gather information for accident reconstruction and analysis |
| Motion Detection | Accelerometer-based motion alarm with 3 internal axes |
| MQTT | Data report to MQTT server |
| TLS | Supports encryption TLS1.2 |

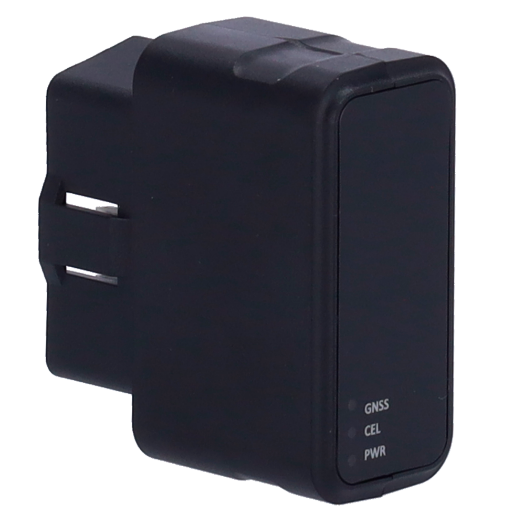

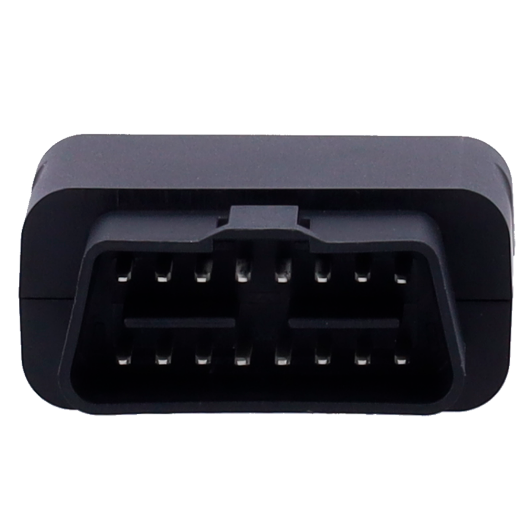

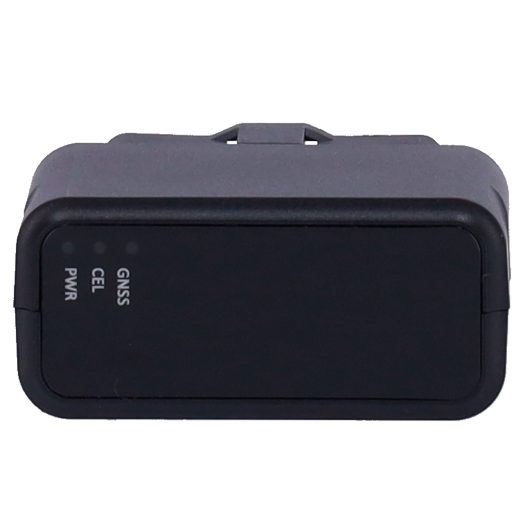

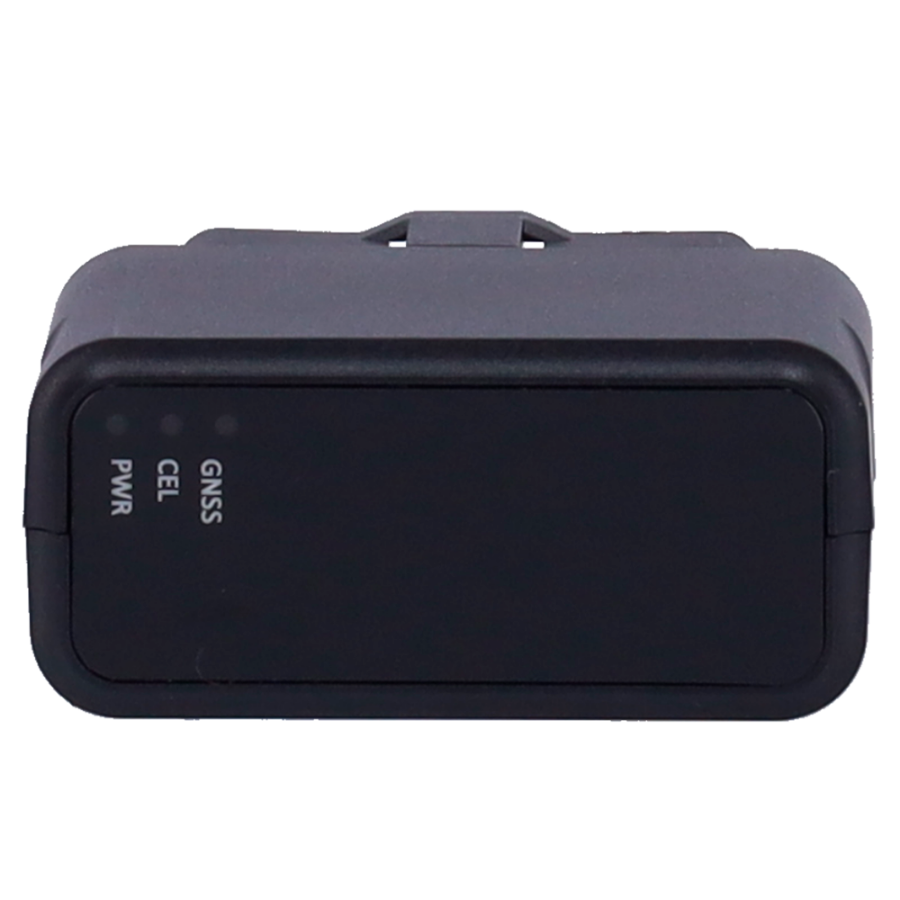

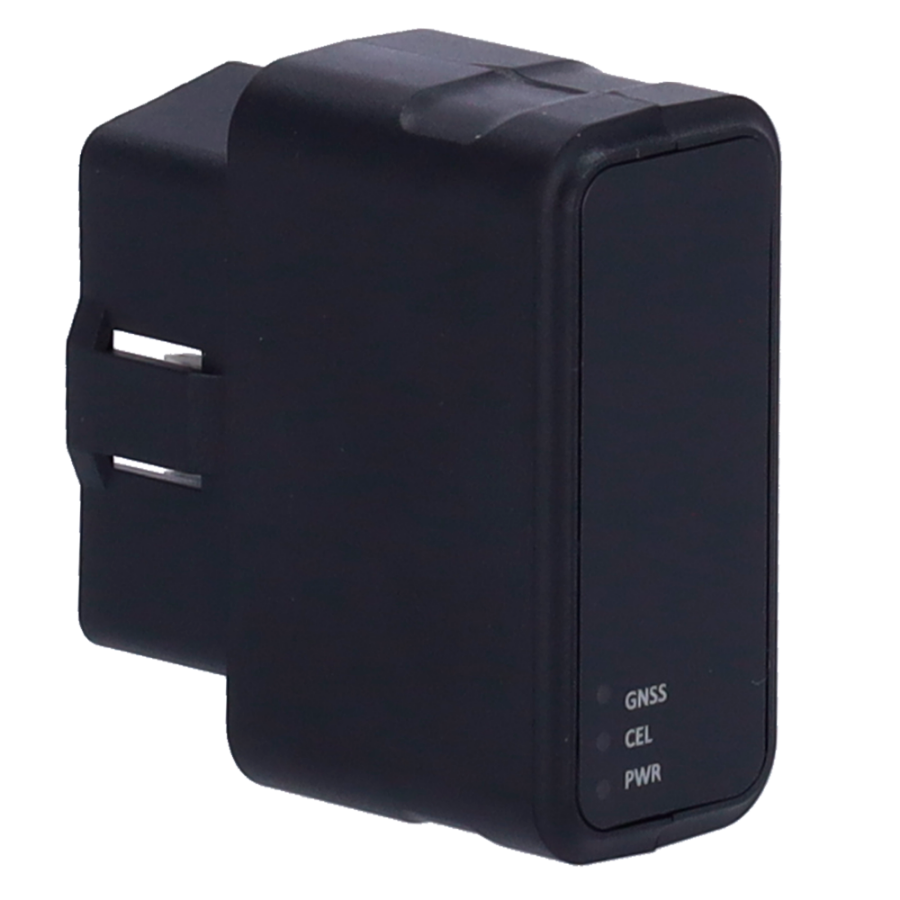

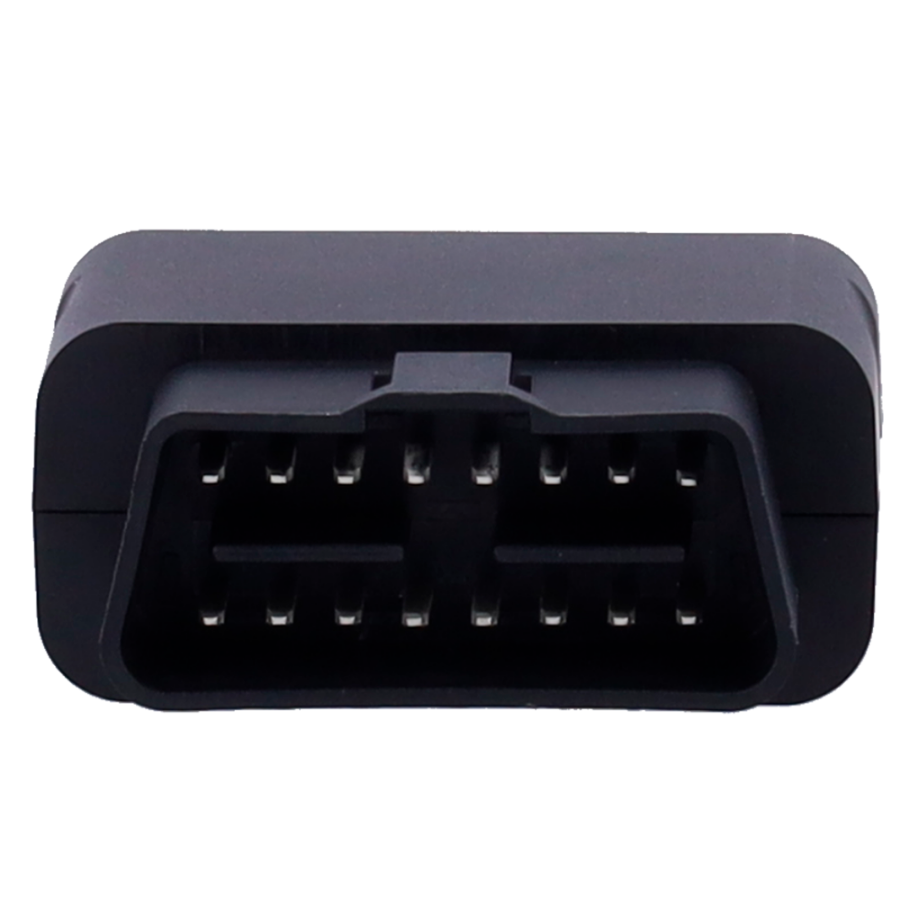

GV500CG is a compact, LTE-integrated 4G OBD Cat1 tracker. Minimal size allows for easy installation in all automobiles. The product also features driver behavior monitoring, collision detection, mileage logging, as well as BLE connectivity, which is ideal for insurance applications and connected car services.
