| Brand | Queclink |
| Model | GL601CEU |
| Installation | EXTERIOR |
| Operating band | LTE-FDD: LTE Cat 1: B1/B3/B7/B8/B20/B28AWCDMA: B1/B8 |
| Sleep mode | Continuous mode:1 report/minute (2 hours of work per day):80 daysSleep mode:1 report/hour: 5 months1 report/day: 5 years1 report/day (must be charged with solar energy on a regular basis):10 years |
| Work frequency | EFPRS: 900/1800MHz |
| Dimensions | 212(L) × 86(W) × 30(H) mm |
| Weight | 572g |
| Backup battery | 6 lithium batteries ICR18500, 3,7 V, 12 000 mAh |
| Watertightness | Conform IP67 |
| Working temperature | -20 °C~+70 °C |
| Mounting | Mounting with screws or magnetsAdditional secure steel cable |
| Region | EMEA |
| Certified | CE |
| GNSS type | All-in-one multi-constellation GNSS receiver |
| Constellations | GPS, BEIDOU, GLONASS,GALILEO, AGPS |
| Location Accuracy (m@CEP50) | Autonomous: < 2.5m |
| BLE | 2,4Ghz - BLE 5.0 functions as a gateway for connecting accessories such as beacons, temperature sensors, magnetic sensors, etc. |
| Wi-Fi | Wi-Fi scanning for indoor positioning or activation of work modes |
| Charging connector | Magnetic connector of 4 pins for loading and FW configuration/update |
| GSM Antenna | Internal only |
| GNSS Antenna | Internal only |
| BLE antenna | Internal only |
| Wi-fi Antenna | Internal only |
| LED indicators | GNSS, CEL, PWR |
| Transmission Protocol | TCP, UDP, SMS |
| Scheduled reports | Notification of messages at preset time intervals |
| Geofence | Automatically informs when entering or leaving the geo-fence |
| Low battery alarm | Notifies when the internal battery is low |
| Battery health | Notifies battery condition (%) / status |
| Temperature monitoring | Notifies the ambient temperature at preset time intervals |
| Sabotage detection | Notifies if the device has been removed |
| OTA Control | Allows remote configuration of parameters to change the position interval, measurement interval, enable/disable the sensor and update firmware. |

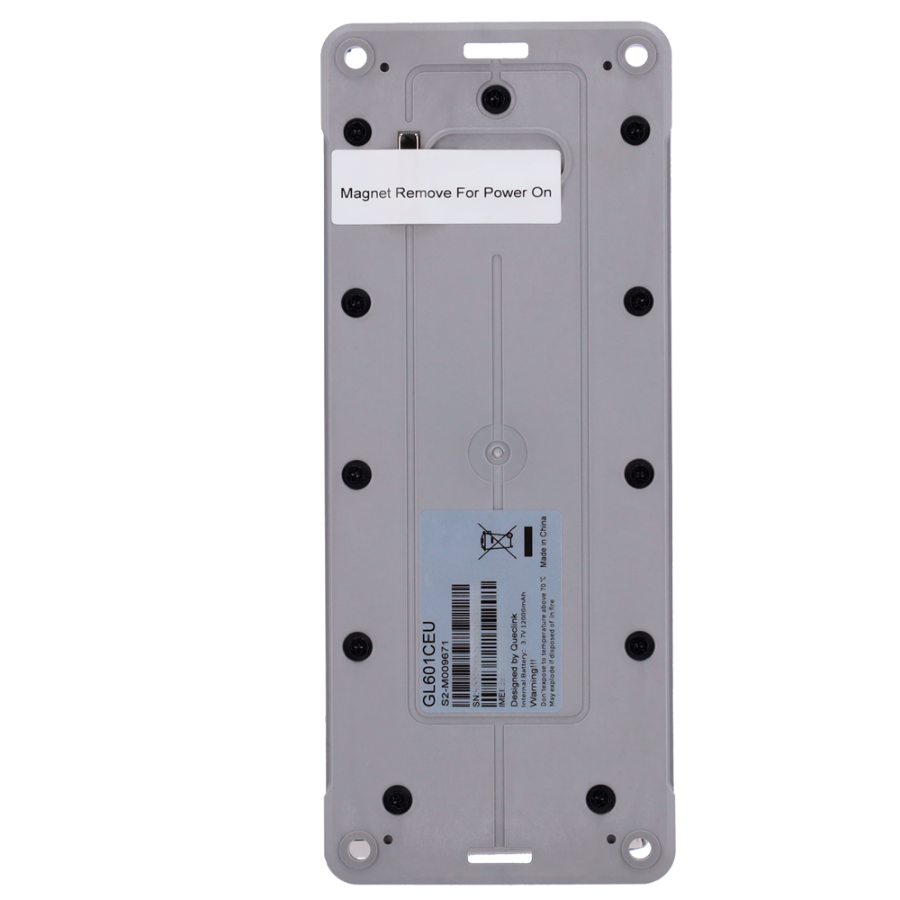

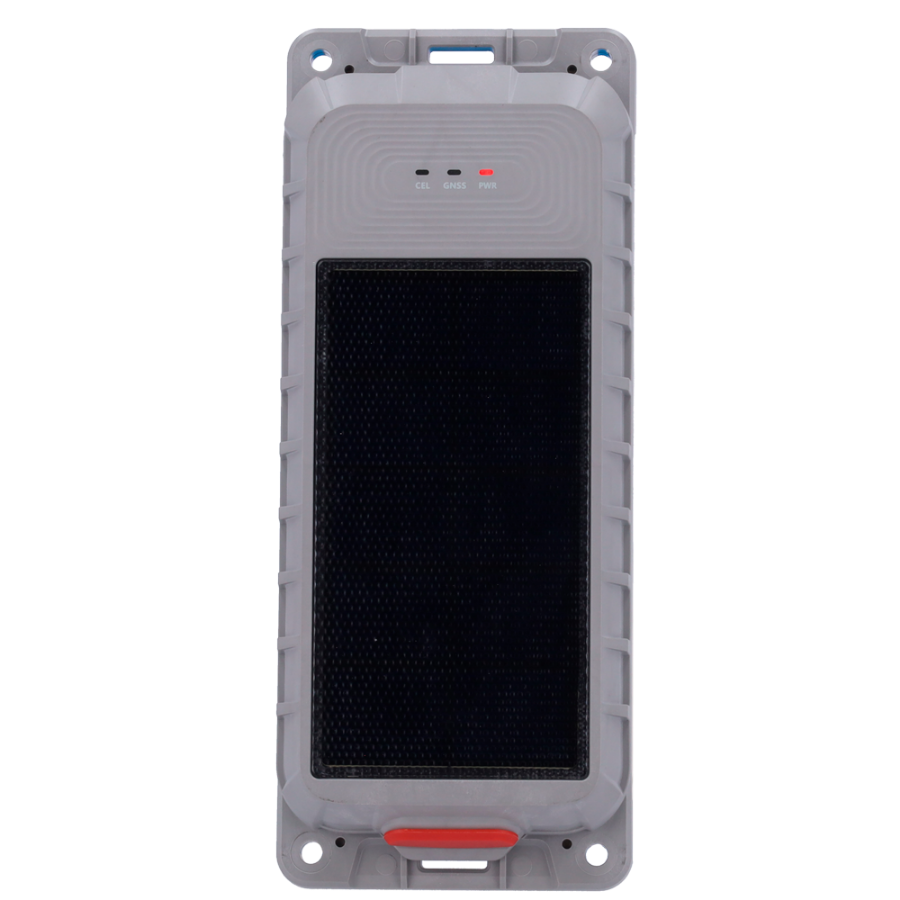

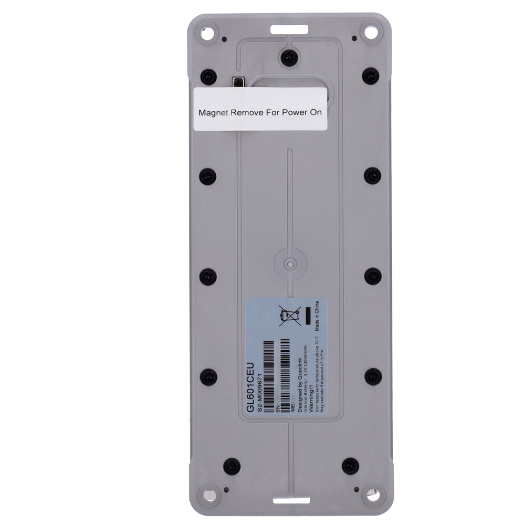

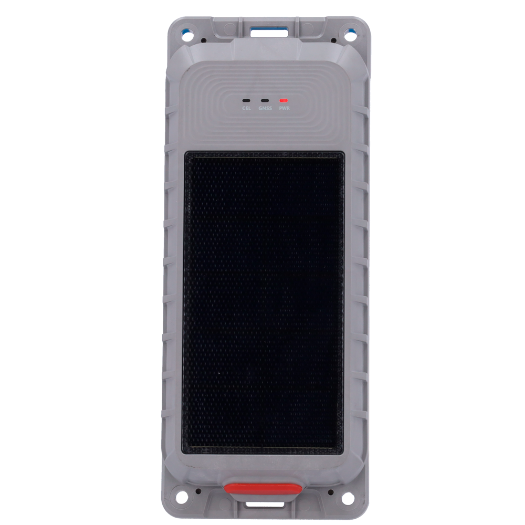

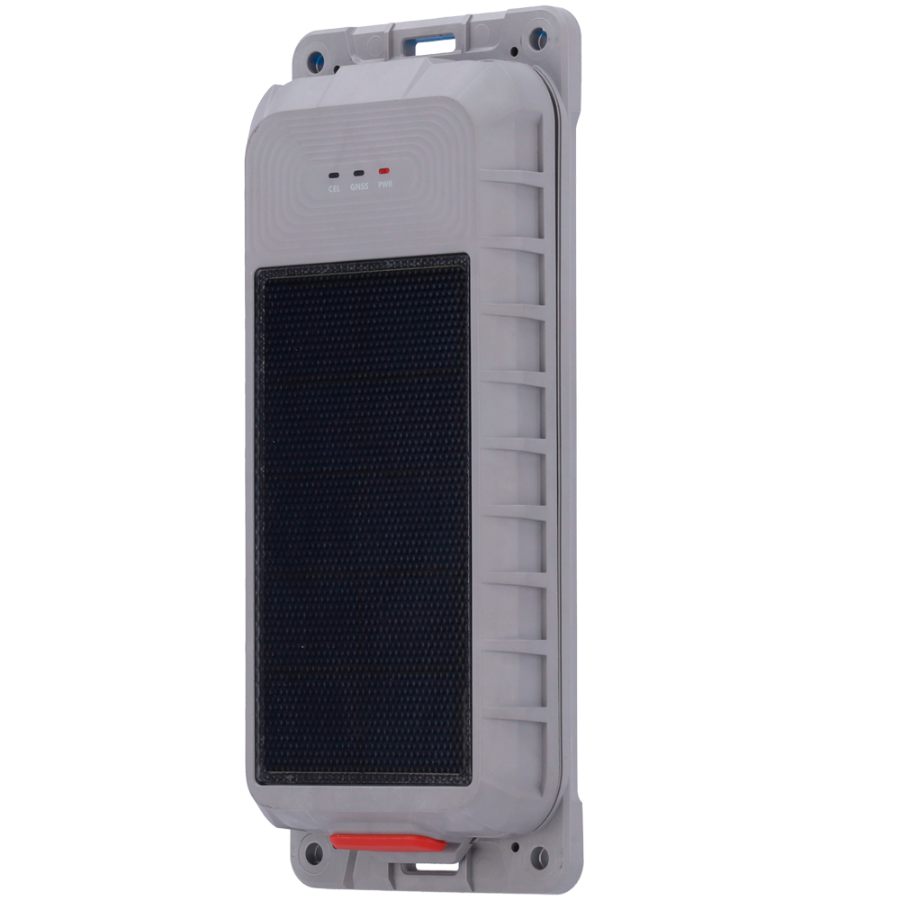

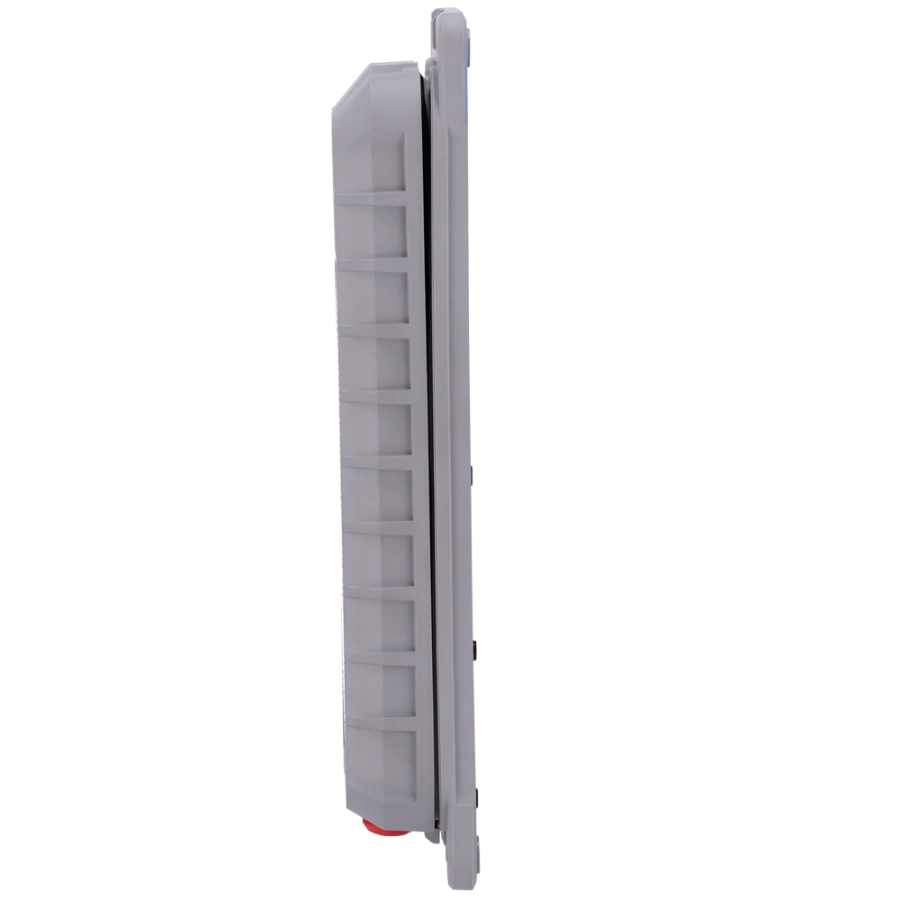

GL601CEU is a robust LTE Cat1 locator for container, trailer and rail car management. With its solar technology, it can operate for a life cycle of up to 10 years. Large rechargeable battery ensures real-time tracking while on the move or low sending frequency when stationary. The use of LTE Cat1 technology eliminates coverage concerns during interregional transport. It features a light sensor for tamper alerts, a temperature sensor for monitoring environmental conditions and offers extended functionality with BLE and Wi-Fi connectivity.
