| Brand | Queclink |
| Model | GL530MG |
| Installation | Flexible |
| Operating band | LTE Cat M1/NB2Cat M1:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B27/B28/B66/B85Cat NB2:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| LTE data transmission | eMTC (DL) 348kbpseMTC (UL) 1.08MbpsNB2 (DL) 121kbpsNB2 (UL) 150kbps (UL) [%VAR%]NB1 (DL) 74.1kbpsNB1 (UL) 101kbps (UL) [%VAR%] |
| Work frequency | EGPRS 850/900/1800/1900 MHz |
| EGPRS data transmission | GPRS 107 Kbps(DL)/ 85.6 Kbps(UL)EDGE 296 Kbps(DL)/ 236.8 Kbps(UL) |
| Dimensions | 87 × 51 × 30mm3.43’’(Largo) × 2.01’’(Ancho) × 1.18’’(Alto)87 × 51 × 33.5mm3.43’’(Largo) × 2.01’’(Ancho) × 1.32’’(Alto)(version for mounting in magnetic housing) |
| Weight | 140 g 160 g (version for mounting in magnetic housing) |
| Backup battery | 3 lithium batteries CR123A, 1 400 mAh |
| Duration | 1 report up to date (GNSS activated): 5 years1 report per day (cell ID only): 7 years |
| Watertightness | Conform IP67 |
| Working temperature | -20? ~ +60? |
| Internal temperature sensor | To control the temperatureAccuracy: ±1? |
| Internal light sensor | For tamper detection |
| Vibrator | For confirmation signal when pressing the function button |
| Magnetic Mounting Housing (Optional) | For easy installation on metal surfaces |
| GNSS type | U-box all-in-one GNSS receiver |
| Constellations | GPS, Glonass, Galileo, Beidou |
| GNSS sensitivity | Cold start: -148dBmHot start: -160 dBmTracking: -167 dBm |
| Location Accuracy (CEP) | Autonomous: < 2m |
| First position (TTFF) - open field | Cold start: 24s approxHot start: 1s approx |
| Function button | Used for power on/off and operating status check |
| LTE Antenna | Internal only |
| GNSS Antenna | Internal only |

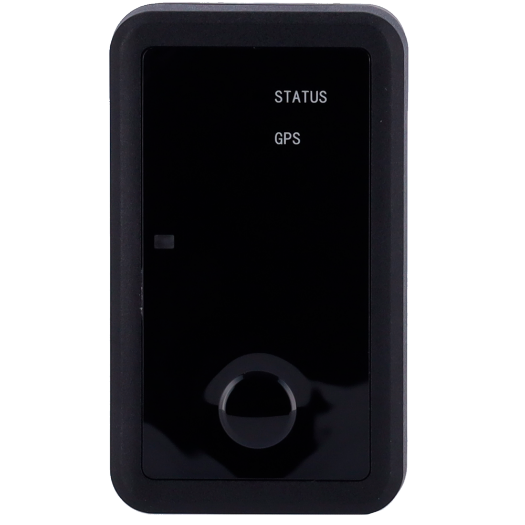

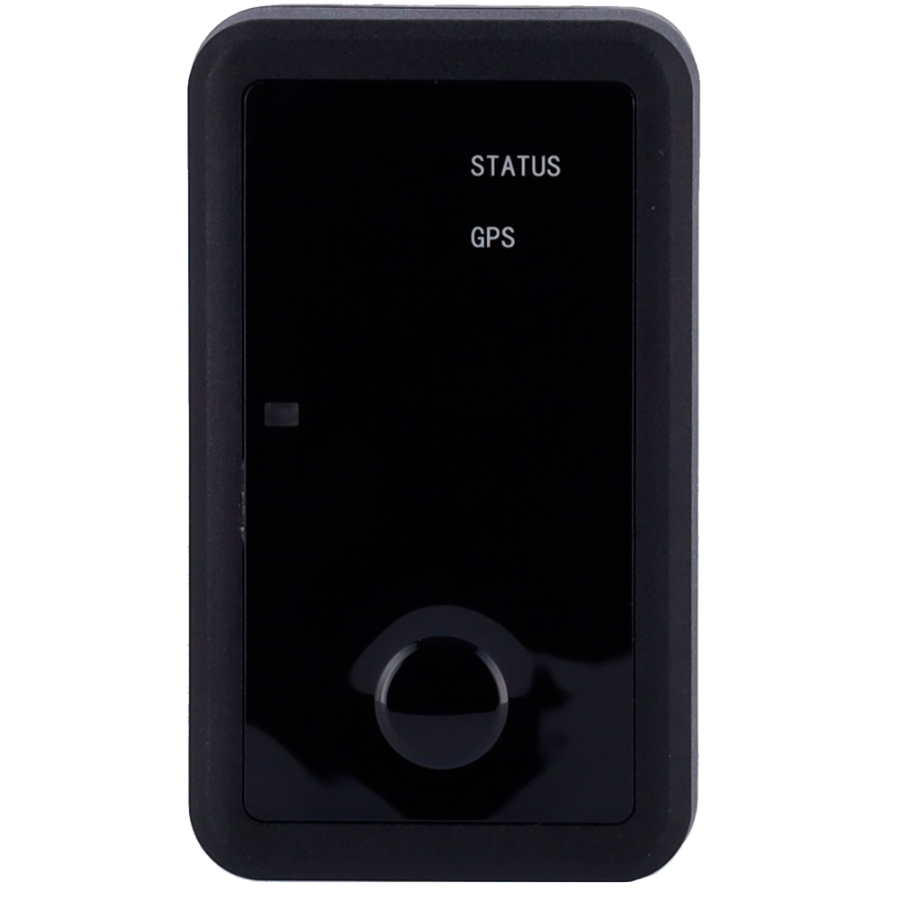

| LED indicators | GNSS, State |
| Commands | Queclink Protocol Commands |
| Transmission Protocol | TCP, UDP, SMS |
| Working Modes | Power saving mode for extended standby timeContinuous mode for emergency tracking |
| Scheduled report | Position and status reporting at preset time intervals |
| Geo-fence | Supports up to 20 regions |
| Battery alarm | Alarm when internal battery power is low |
| Activation report | Report when the device is activated |
| Motion Detection | Motion detection based on internal accelerometer of 3 axes |
| Setting the Reporting Frequency | Intelligent adjustment of notification frequency |
Integrates the latest low power wide area (LPWA) standards. Easy deployment thanks to optional magnetic holder. Long life up to 7 years. Built-in light sensor for tampering attempts and waterproof for use in harsh environments. Internal temperature and light sensor used in cold chain logistics, warehouse management, road freight transport, monitoring of high value static assets, etc..
