| Brand | Queclink |
| Model | ATP102 |
| Installation | Inside the tire |
| Voltage | 2.3V ~ 3.6V |
| Relative Humidity | 95% Max |
| Working temperature | -40oC to +85oC |
| Temperature reading tolerance | ± 1oC |
| Operating frequency | Band 2.4Ghz |
| RF transmitter power | 8dBm Max |
| Consumption in idle mode | < 3.0uA to 3V DC (1 time) |
| Consumption in use | < 30uA to 3V DC |
| Peak max consumption | < 9mA to 3V DC |
| Battery Life | Estimated 4~6 years |
| Battery capacity | CR2050HR HBB-T66, 3V DC, 350mA |
| Dimensions | 80mm x 26.8mm x 22.5mm |

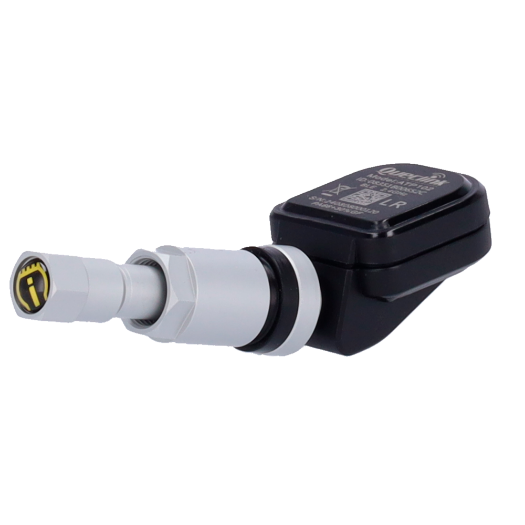

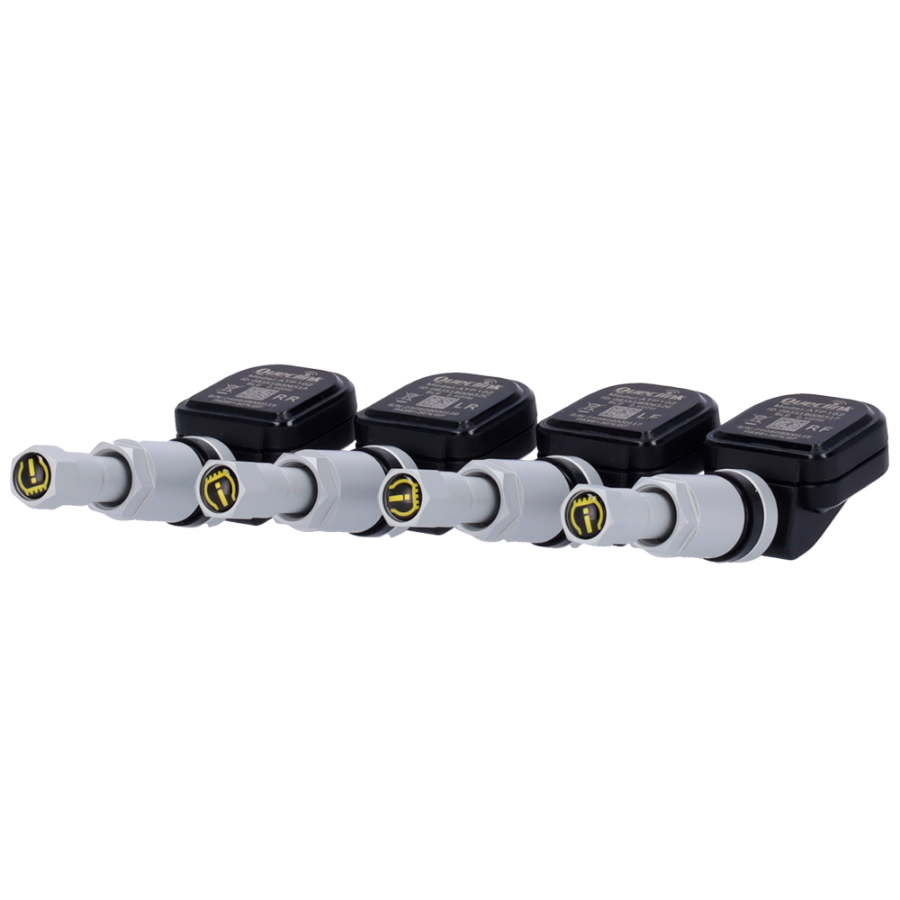

Integrated tire pressure monitoring sensor APT102, paired with Quecklink locators, allows for real-time tire pressure and temperature monitoring and tire-related alerts. The data collected by the ATP102 is transmitted to the Quecklink locator via BLE and then uploaded to the backend server. Integrated tire pressure monitoring sensor ATP102 features large battery capacity, long standby time, accurate tire pressure measurement, and built-in installation to prevent damage. Can be used in SUVs, minibuses, pickup trucks, golf carts, motorcycles, small motorhomes, etc.
