| Interface | 1 PoE Out port up to 90W 802.3bt Type 41 Uplink PoE Port In up to 90W 802.3bt Type 4 |
| Port speed | 2x 10/100 Mbps |
| Power supply | PoE in 15/30/60/90W |
| PoE features | According to IEEE 802.3at / IEEE 802.3af / IEEE 802.3bt PoE Standard |
| Power | Requires Power over Ethernet (PoE) |

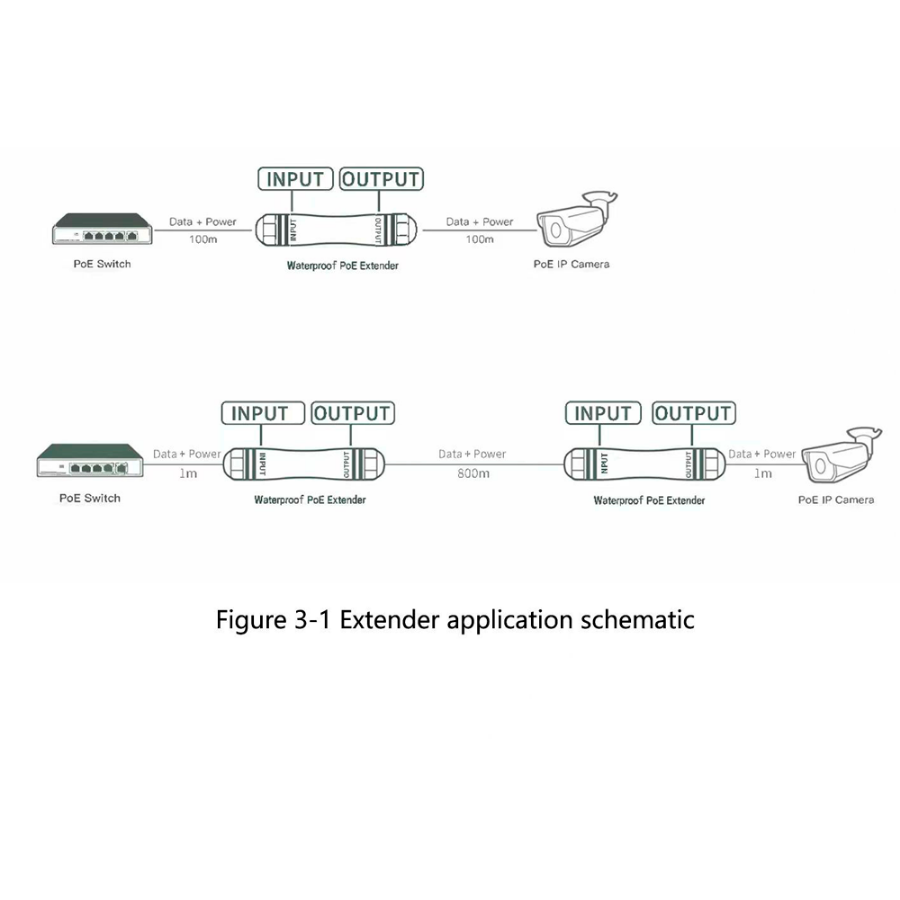

| Range | - If a POE-EXT01-800M-IP67 connected to a normal PoE+ switch is used, the transmission distance will be increased by 100 meters with a speed of 100Mbps.- If a POE-EXT01-800M-IP67 connected to a PoE+ s |
| Operating temperature | -10° C - 55° C |
| Dimensions | 156.5 (D) x 29 (H) x 29 (W) mm |
