| Brand | Branded |

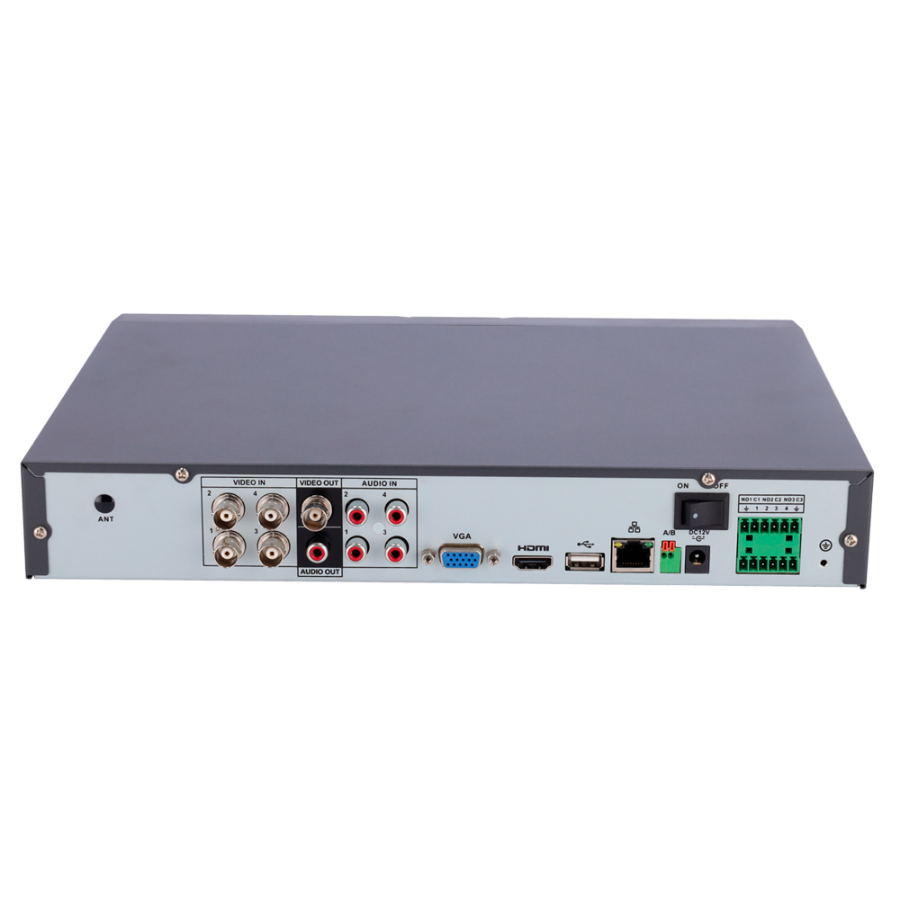

| Inputs for analog cameras | 4 CH BNC |
| Video outputs | 1xHDMI, 1xVGA, 1xBNC |
| Video compression format | H.264 / MPEG4 |
| Main display resolution | 960H (960×576) |
| Recording resolution | 960H (960×576) |
| Coding capability | 4CH@960H |
| Audio inputs | 4 CH (RCA)1 CH 3.5mm JACK MIC IN |
| Audio outputs | 1 RCA output, 3.5mm JACK LINE OUTMultiplexed output |
| Bidirectional audio | Supports high quality two-way conversation |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 4 inputs / 3 relay |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |
| Internal memory | 1xSATA HDD |
| Communication | 1 x RJ45 10/100 Mbps (Ethernet) / 1 x RS485 / 1 x Connector for antenna |
| Remote access | Web Browser, Smartphone App and Smart PSS |
| Power | DC 12 V, 40 W |
| Operating temperature | -10° ~ +55° C |
| Dimensions / weight | 137 x 162 x 30 mm / 2.3 Kg |
