| Brand | Nivian |
| Video format | HDTVI / HDCVI / AHD / CVBS |

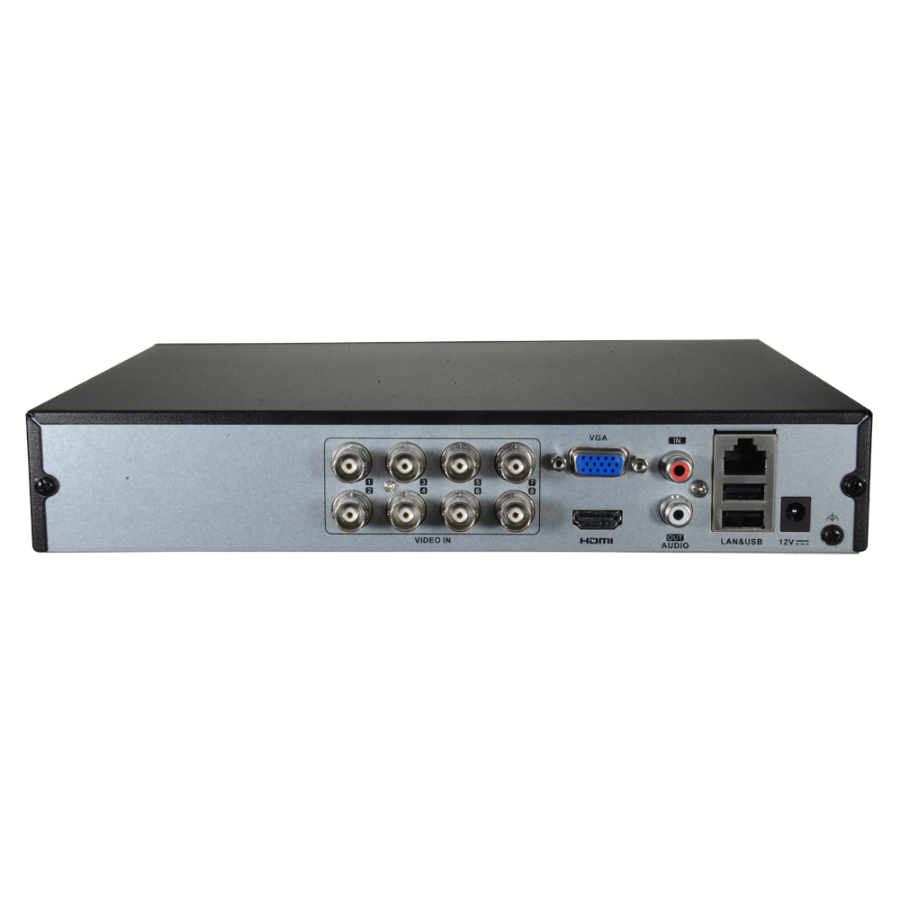

| Video inputs | 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.264+ / G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 1080N / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF |
| Main Stream coding | 1080N / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF (1~25 FPS) |
| Extra Stream coding | CIF / QCIF (1~25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | Does not have |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Browser, app or Nivian CMS |
| Power | DC 12 V / 1 A |
| Dimensions / weight | 45 (H) x 200 (W) x 200 (D) mm / 800 g |
