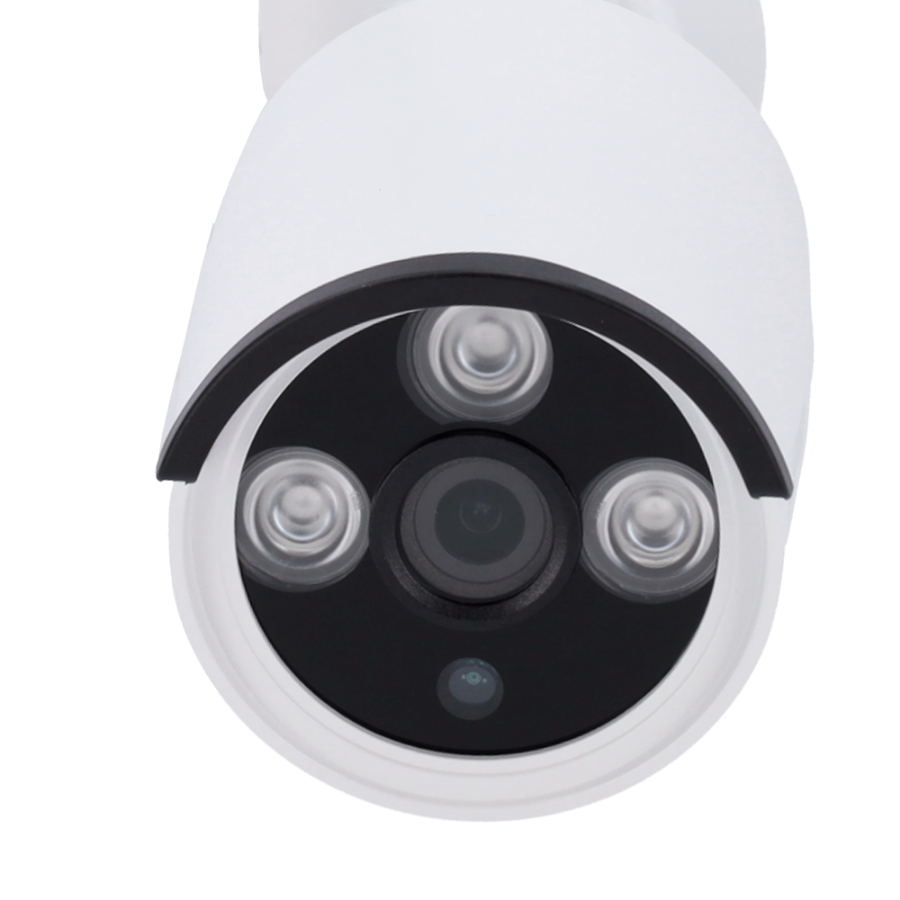

| Image sensor | 1/3” 3 Megapixel Progressive Scan Sensor |
| Main Resolution | 2304x1296 (15 FPS) |
| Secondary resolution | 640x360 (15 FPS) |
| Compression | H.265+ / H.264+ |
| Lens | 4 mm (D: 104°) |
| Minimum illumination | 0 Lux / 3 IR LEDs (20 m) |
| Network interface | Ethernet 10/100 BaseT (100 m) and Wifi 2.4 GHz 802.11b/g/n |
| Plug&Play access | Preregistered in the NVR-wifi |
| Image improvements | 3D-DNR, BLC, Mirror Vision V/H, Privacy Mask |
| ENVIRONMENT | Suitable for outdoor use IP66, lightning protection 4000V |
| Operating temperature | -20o C ~ 50o C |
| Power | DC 12 V / 1 A (included) |
| Dimensions / weight | 66 (Al) x 66 (An) x 180(Fo) mm / 500 g |
| Inputs for IP cameras | LAN / WiFi port up to 10 channels |
| Supported resolutions | 5Mpx / 3Mpx / 1080p / 960p / 720p |
| Supported video compression format | H.265+ / H.265 / H.264 |

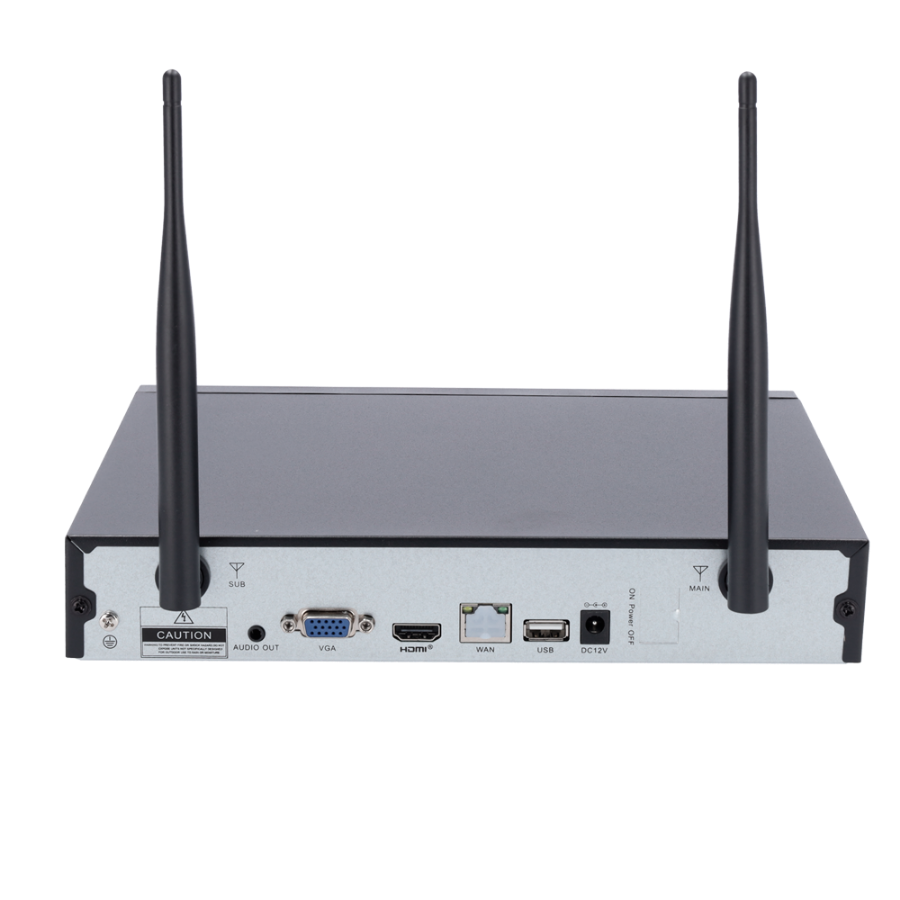

| Video outputs | 1 HDMI Full HD, 1 VGA |
| Resolution HDMI/VGA display | 1920x1080, 1440x900, 1280x1024, 1024x768 |
| Simultaneous display | 4Ch@3Mpx or 2Ch@5Mpx, Intelligent resolution adaptation |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 SATA HDD 3.5" up to 6 TB (1 HDD 1TB included) |
| Communication | 1 USB (shared mouse and backup) / 1 RJ45 (Ethernet) / WiFi (AP and client) |
| Remote access | EsaeCloud Web Browser, Software and App (IP PRO) |
| Power | DC 12 V / 2 A (included) |
| Dimensions | 42 (H) x 258 (W) x 210 (D) mm |
