| Model | NV-CAM30W |

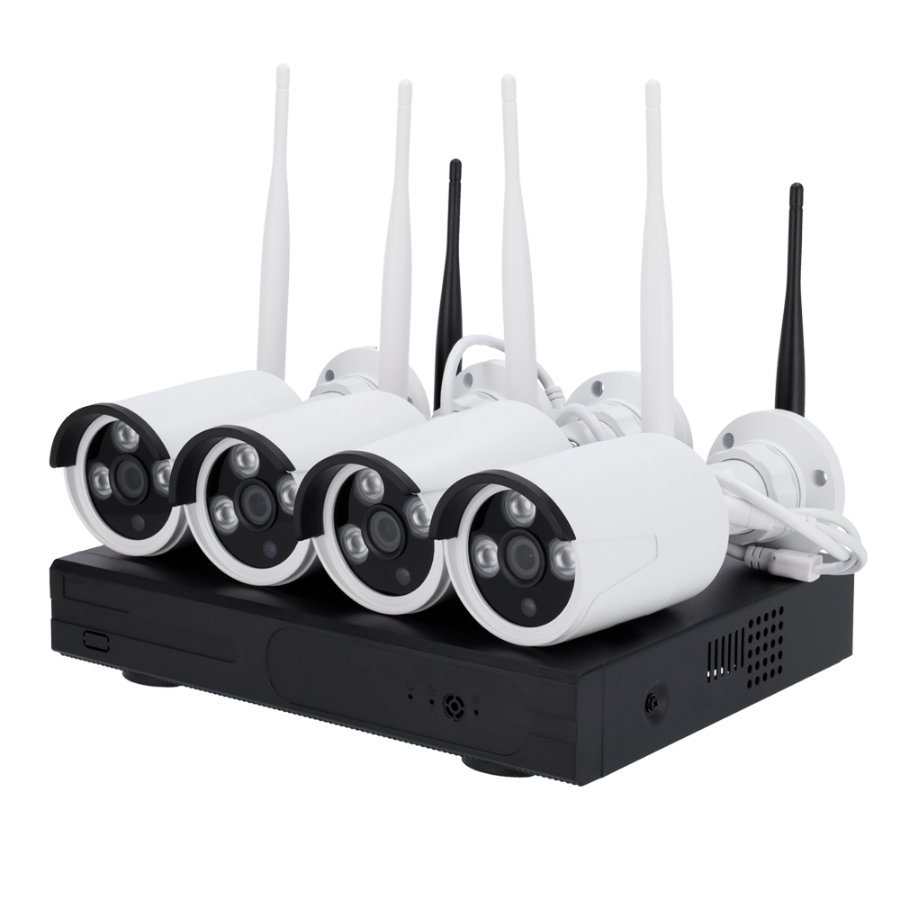

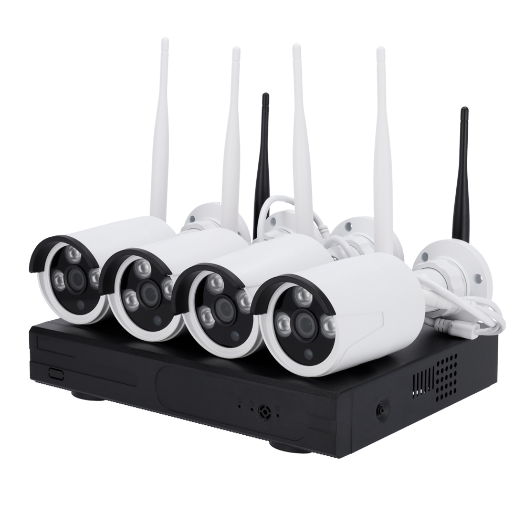

| Units included | 4 cameras-- pre-configured and added to the video recorder |
| Image sensor | 1/3” 3 Megapixel Progressive Scan Sensor |
| Main Resolution | 2K Super HD (3MP 2304x1296) |
| Secondary resolution | SD (640x360) |
| Video encoding | Codec H.265+ (*80% recording space savings over H.264) |
| Viewing angle | Lens 4 mm / Diagonal angle of view 104° |

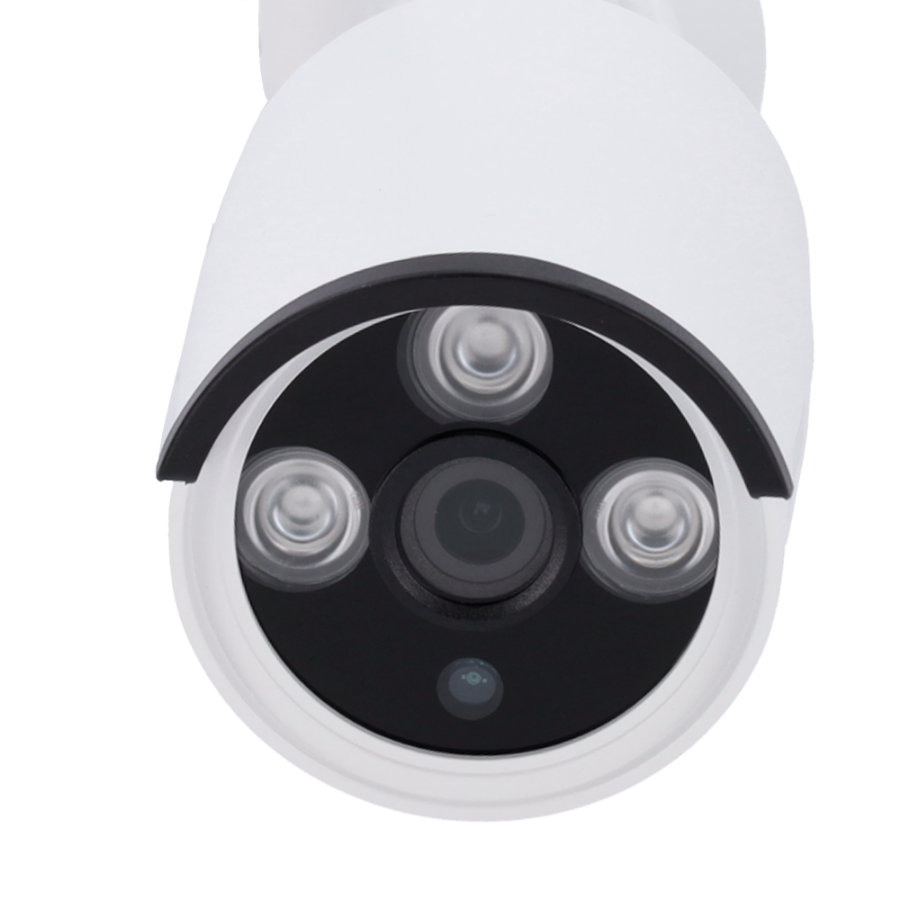

| IR night vision | Adaptive infrared LED technology / Range 20 m |
| Image improvements | Digital image noise reduction 3D-DNR / BLC backlight compensation / Horizontal and vertical image inversion for installation in any position / Privacy Mask |
| Wireless communication | Wifi 2.4 GHz for communication with WiFi video recorder |

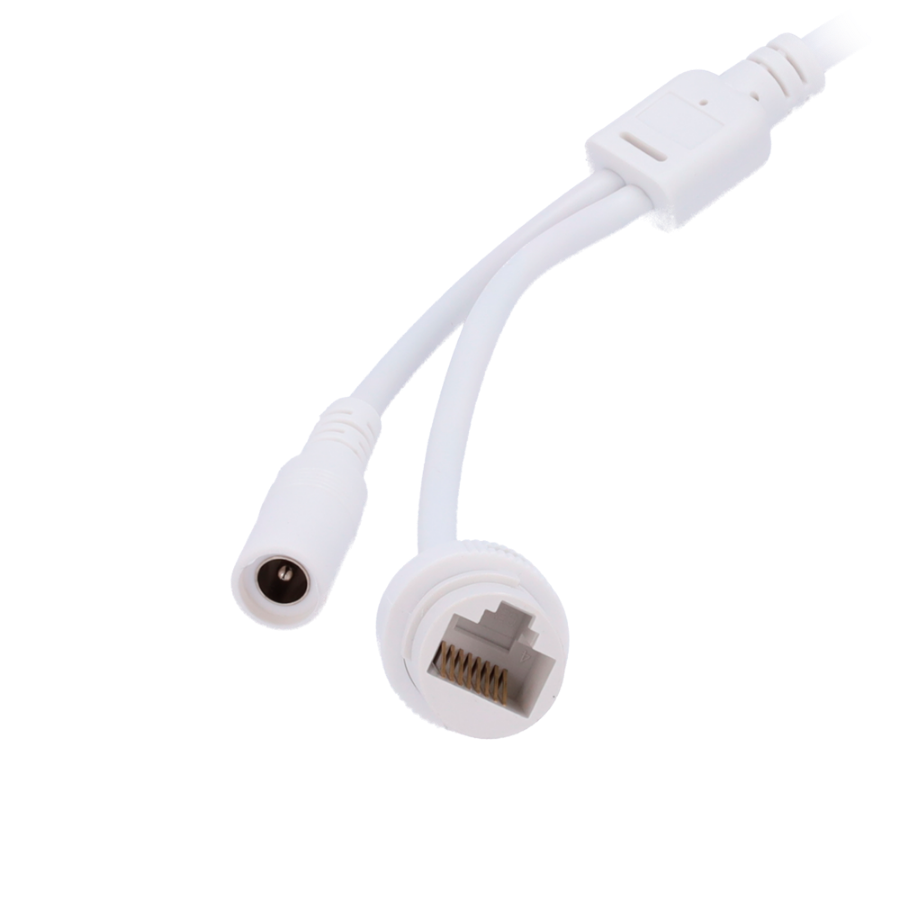

| Network cable communication | RJ45 port for network cable to router or switch |
| Environmental protection | Suitable for outdoor use IP66 / Lightning protection up to 4000V |
| Operating temperature | -20o C ~ 50o C |
| Power | DC 12 V / 1 A (included) |
| Dimensions / weight | 66 (Al) x 66 (An) x 180(Fo) mm / 500 g |
| IP camera channels | 4 channels |
| Supported resolutions | 5MP / 3MP / 1080p / 960p / 720p |
| Supported compression formats | H.265+ / H.265 / H.264 |

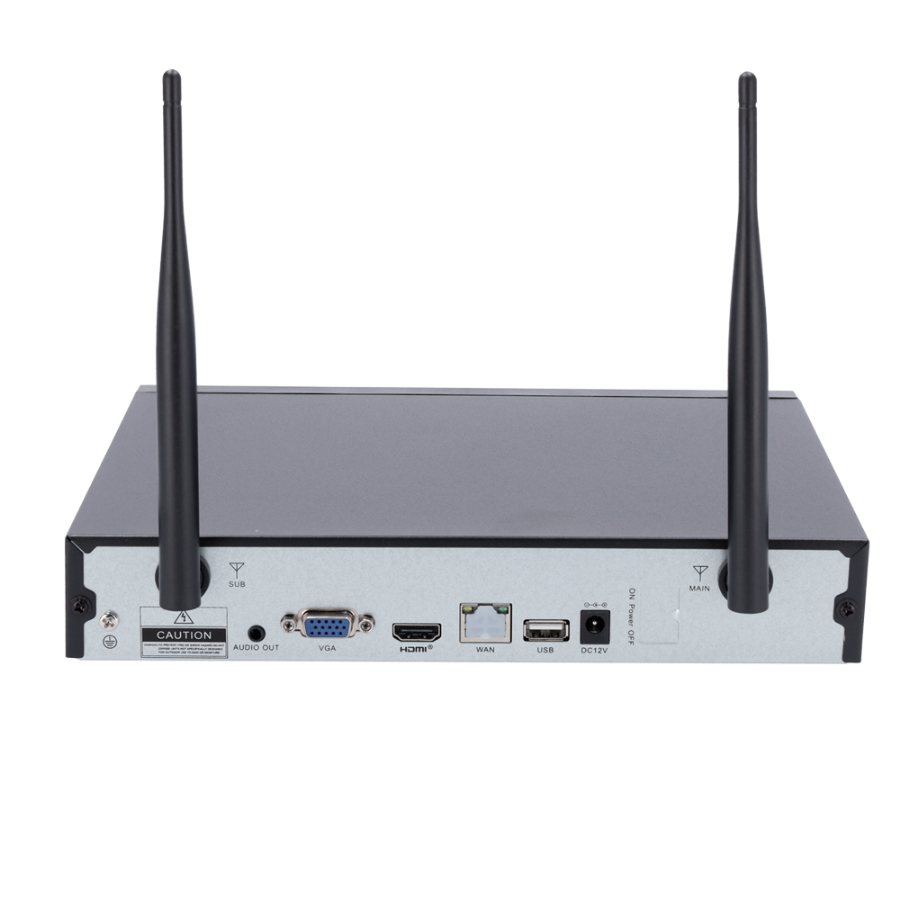

| Video outputs for display | 1 HDMI Full HD, 1 VGA |
| HDMI/VGA output resolution | Full HD 1920x1080 (HDMI), 1440x900 (HDMI), 1280x1024, 1024x768 |
| Camera display on screen | Live view and recording of up to 4 cameras from 3MP simultaneously |

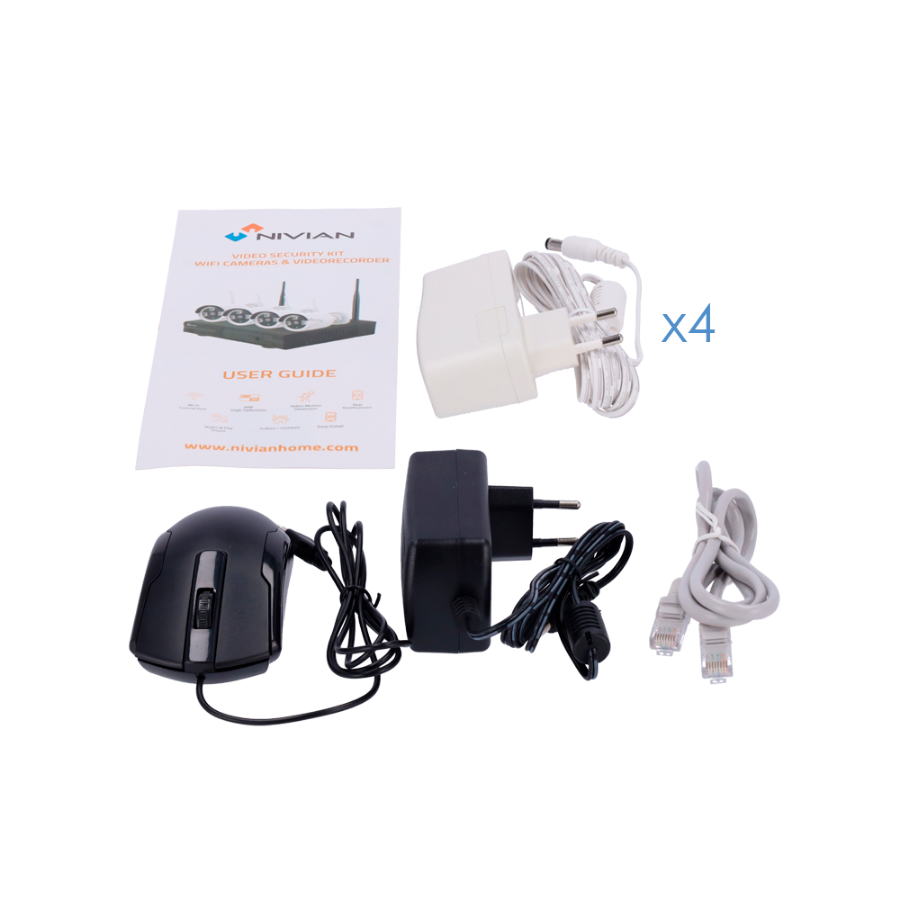

| On-screen menu control | 1 USB mouse (included) |
| Simultaneous multifunction | Live, Recording, Playback, Backup and Remote Access |
| Recording method | Continuous 24h / Scheduled by calendar / By motion detection |
| Storage of recordings | Internal / 1 SATA hard disk 3.5" up to 6 TB (not included) |
| Compatibility with other cameras | Compatible with third-party devices via ONVIF protocol |
| Internet connection | Port RJ45 Ethernet 10/100 / Wifi 2.4 GHz 802.11b/g/n |
| Remote access | Web browser, Eseecloud Software and EseeCloud App (IP PRO) |
| Power | DC 12 V / 2 A (included) |
| Dimensions | 42 (H) x 258 (W) x 210 (D) mm |
