NV-ACCESS-PIN-RFID-W

Standalone access control
Access by EM card, PIN and APP
Relay, pushbutton and buzzer outputs
Wiegand 26 and WiFi | Timing control
Tuya Smart APP for remote management and openings
Suitable for exterior IP68

Brand: NIVIAN RETAIL

Šifra: NV-ACCESS-PIN-RFID-W

GTIN: 8435325482651

40,77 EUR

Dostupno

Dostupnost Dostupno

Načini plaćanja: Pouzećem, online plaćanje po broju narudžbe, PayPal

Specifikacije

Brand	Nivian
Model	NV-ACCESS-PIN-RFID-W
Capacity	Up to 2.000 cards/passwords
Identification modes	Card, PIN, APP and combinations
Proximity card	RFID EM 125 kHz

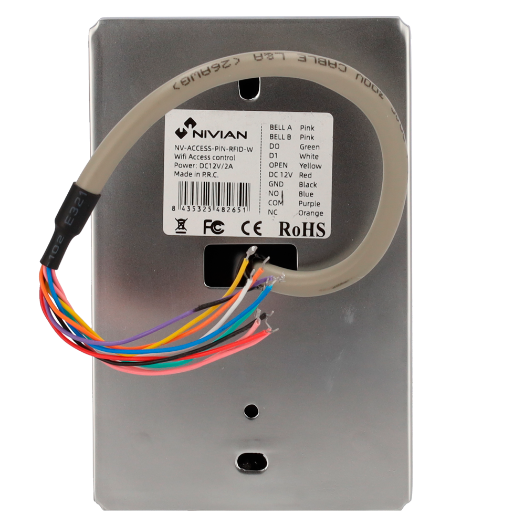

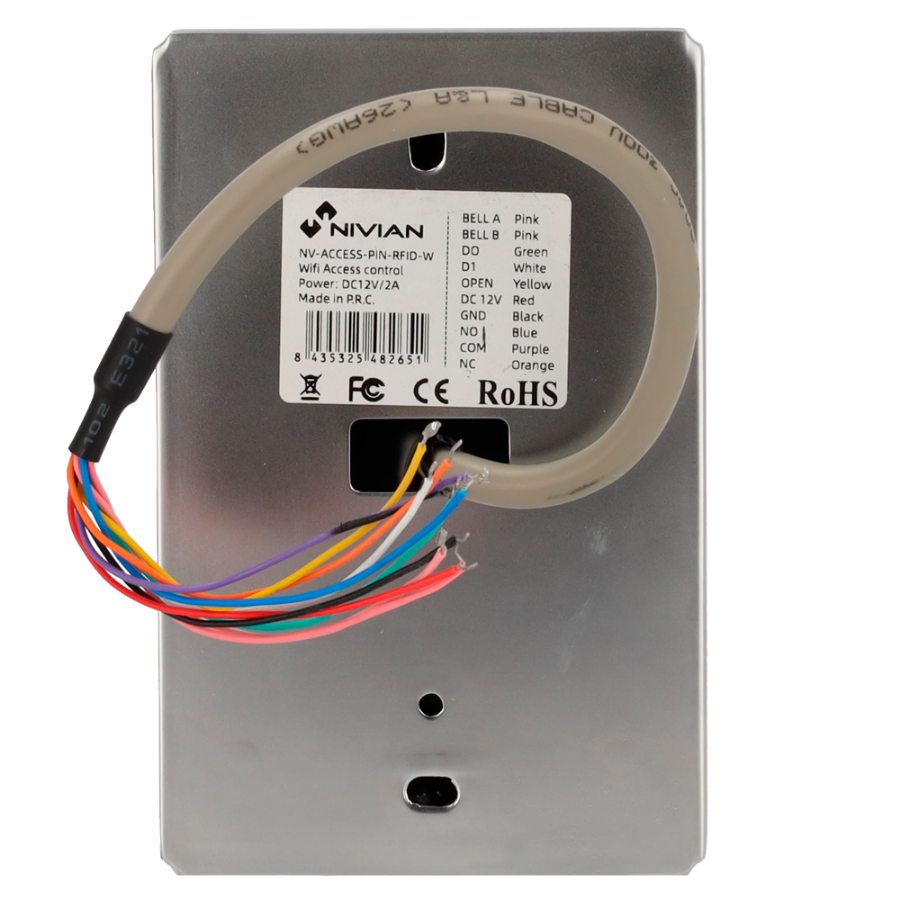

Inputs/outputs	NO/NC relay, push button and buzzer
Communication	Wiegand 26 and WiFi
Power	DC 12 V
Consumption in idle mode	? 30 mA
Degree of protection	Suitable for exterior IP68
APP	Tuya Smart
Functions through APP	User creation through APP (only permission 24h) / Temporary codes / Remote openings
Temp. operation	-40 oC ~ +60 oC

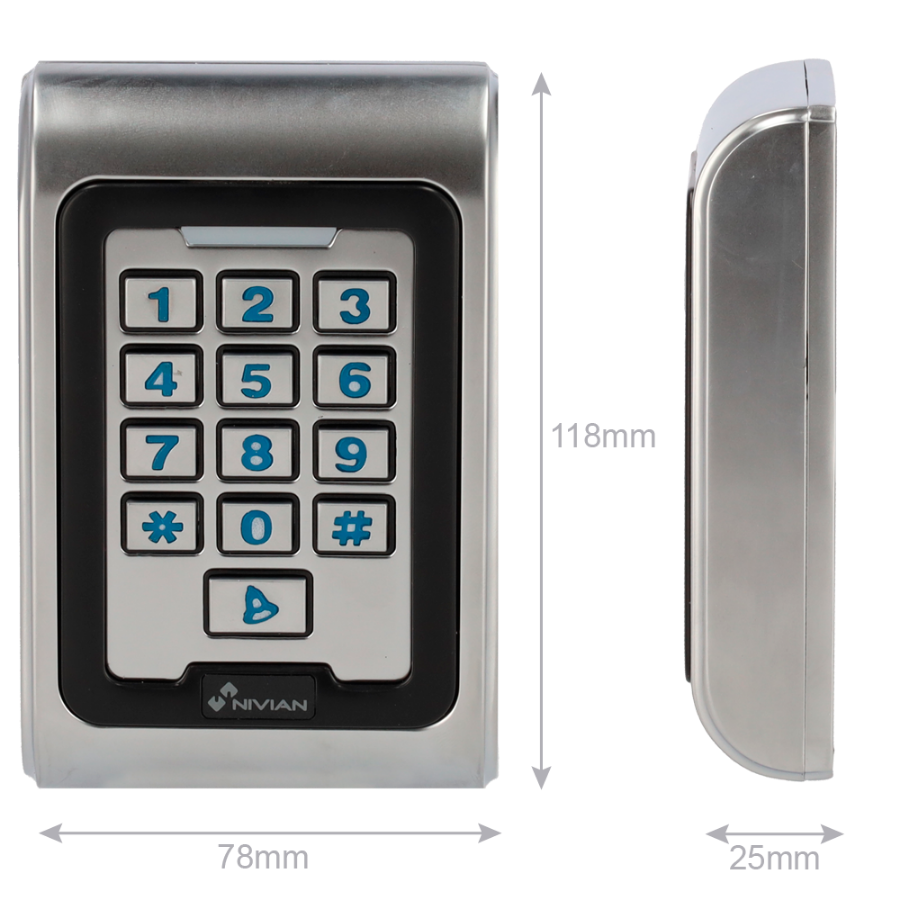

Dimensions	78 (W) x 118 (H) x 25 (D) mm
Weight	640 g

Opis

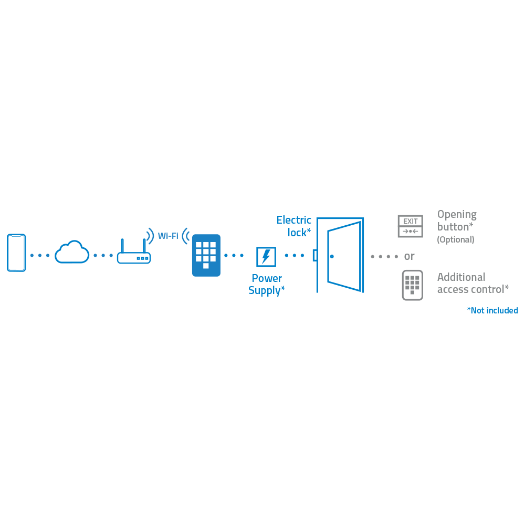

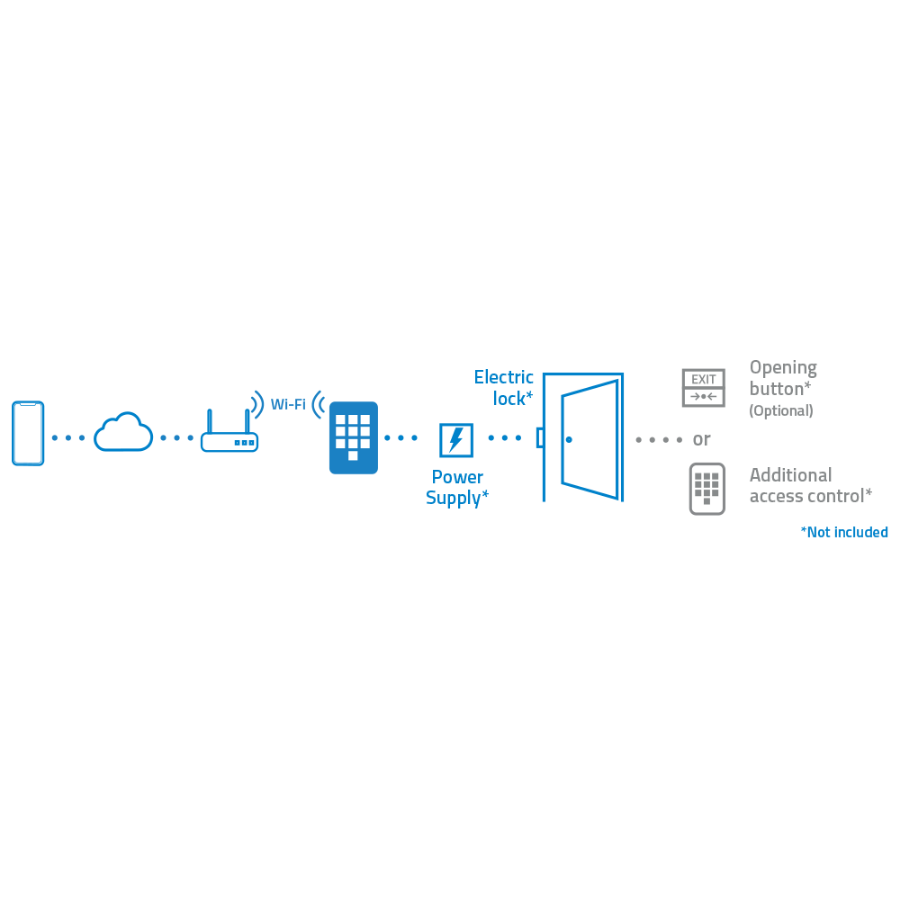

A stand-alone access control device consists of a combination of a controller and a reader in a single unit: is able to identify users, decide whether or not they have permission to access the installation and operate the electronic lock through its relay.

This equipment allows identification through cards or key fobs with RFID EM technology of 125 kHz, as well as a keypad for numeric codes. In addition, it has temporary PIN codes to provide limited access from its Tuya Smart mobile application.

Its exterior grade IP68 allows it to be installed outdoors.

The configuration of users, credentials, as well as special functions, relay opening times or reader reading time, can be configured locally from the equipment itself.
