| Brand | Milesight |
| Image sensor | 2/3" Global Shutter |
| Maximum resolution (each lens) | 5 Megapixel (2464x2056) |
| Main Stream rate | 30fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928)25fps@(2464x2056, 2204x2056, 1910x1592,1568x1312, 1104x928) |
| Extra Stream rate | 30fps@(2464x2056)25fps@(2464x2056) |
| Compression | H265 / H264 / MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR) |
| Lenses | Motorized 15~50 mm Autofocus (3X Optical zoom) |
| FOV | H: 41.4°~10.3°; V: 26.8o~8.42o; D: 32°~13.3° |
| IRIS Control | Auto/Manual |
| Minimum illumination | Colour: 0.001Lux@F1.4B/W: 0 Lux with IR ON |
| Infrared Light | 60 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | DIS (Digital Image Stabilization), IP address filtering, AGC, Manual shutter configuration, IP address filtering, AGC, Manual shutter configuration |
| License plate recognition | Up to 4 detection rails (track-mounted installation) or Up to 2 lanes side installationMaximum speed for detection: 250 Km/hDetection up to 50m |
| Intelligent traffic detection | License Plate Recognition, License Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Recognition and Traffic Flow Detection |
| List of license plates | Allowed / Not Allowed / Visitors(max. 2000 license plates) to activate different actions |
| Detection of traffic violations | Detection of vehicles without license platesDetection of oncoming traffic |
| Red photo | Up to 4 lanesActivation by video analysis or alarm inputUp to 2 traffic lights per scene |
| Trigger Event | Motion Detection, License Plate List, Exceptions, Alarm Entry |
| Attribute-based events | Activation of recording or relay output when the camera detects:- Specific license plate color- Specific vehicle type- Specific vehicle color- Detection in a specific lane.* Up to 4 rules can be creat |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Internal memory | MicroSD card, Max 256 GB (required for LPR function) |
| Alarms | 4/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and video over IP |
| Communication Interface | Ethernet 10/100M BaseT | 1xRS485 |
| Remote access | Web browser and API |
| Integration | HTTP, TCP and MQTT |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Certification | NDAA |
| Power | 24 V DC/AC / MAX 22W (26W with IR ON) |
| Degree of protection | Waterproof IP67, Vandal resistant IK10, Over voltage 4000V |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 126 (W) X 134 (H) X 301 (D) mm |
| Weight | 1080 g |

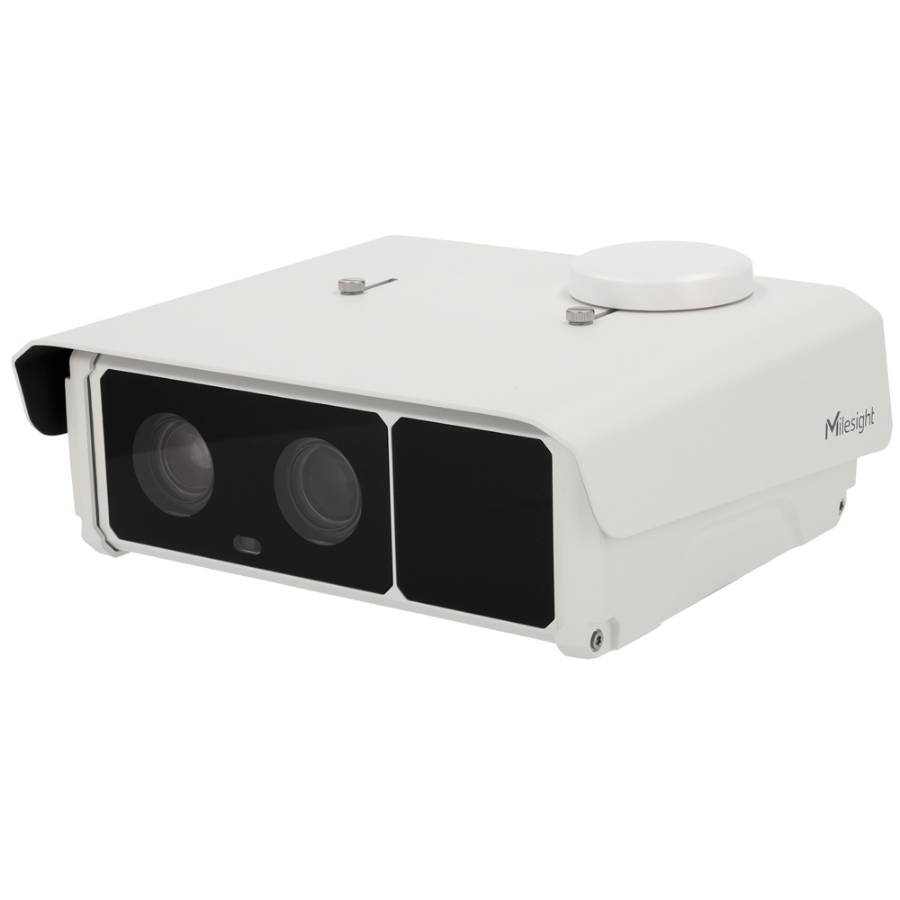

The Milesight TrafficX red light camera is ideal for red light violation detection. Capable of displaying up to 3 images for a red light running violation, and can analyze the red light scene by alarm input by connecting the traffic light itself or by video analytics monitoring the traffic light constantly.
