| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 30fps@(2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960, 1280x720,704x576)25fps@(2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960, 1280x720,704x576) |
| Extra Stream rate | 30fps@(704x576, 640x480,640x360, 352x288, 320x240)25fps@(704x576, 640x480,640x360, 352x288, 320x240) |
| Rate 3rd Stream | 30fps@(1920x1080,1280x720, 704x576, 640x480,640x360, 320x240)25fps@(1920x1080,1280x720, 704x576, 640x480,640x360, 320x240) |
| Compression | H.265+ / H265 /H.264+ / H264 / MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR) |
| Lens | Motorized 5.3~64 mm Autofocus (12X Optical zoom) |
| FOV | H: 61°~5°; V: 36o~2o; D: 69°~5° |
| IRIS Control | Auto/Manual |
| Minimum illumination | Colour: 0.005Lux@F1.6B/W: 0 Lux with IR ON |
| Infrared Light | 200 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Deblur, Watermarking |
| Pan / Tilt range | Horizontal: 360o, Manual Speed: 0.1o ~ 50o/s, Preset speed: 50o/sVertical: -45o ~ 30o , Manual Speed: 0.1o ~ 25o/s, Preset speed: 25o/s |
| Preset / Patrols / Patterns | 8 patrols, 48 presets for each patrol and 4 patterns |
| ROI | Up to 8 Areas |
| License plate recognition | Up to 4 detection zonesMaximum speed for detection: 200 Km/hDetection up to 175m during the day and 60m during the night with IR activated |
| Intelligent traffic detection | License Plate Recognition, License Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Recognition and Traffic Flow Detection |
| List of license plates | Allowed / Not Allowed / Visitors(max. 10000 license plates) to activate different actions |
| Detection of traffic violations | Detection of vehicles without license platesDetection of oncoming traffic |
| Traffic statistics | Statistical summary of the flow of vehicles |
| Trigger Event | Motion Detection, License Plate List, Exceptions, Alarm Entry |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Internal memory | MicroSD card, Max 256 GB (required for LPR function) |
| Alarms | 1/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and video over IP |

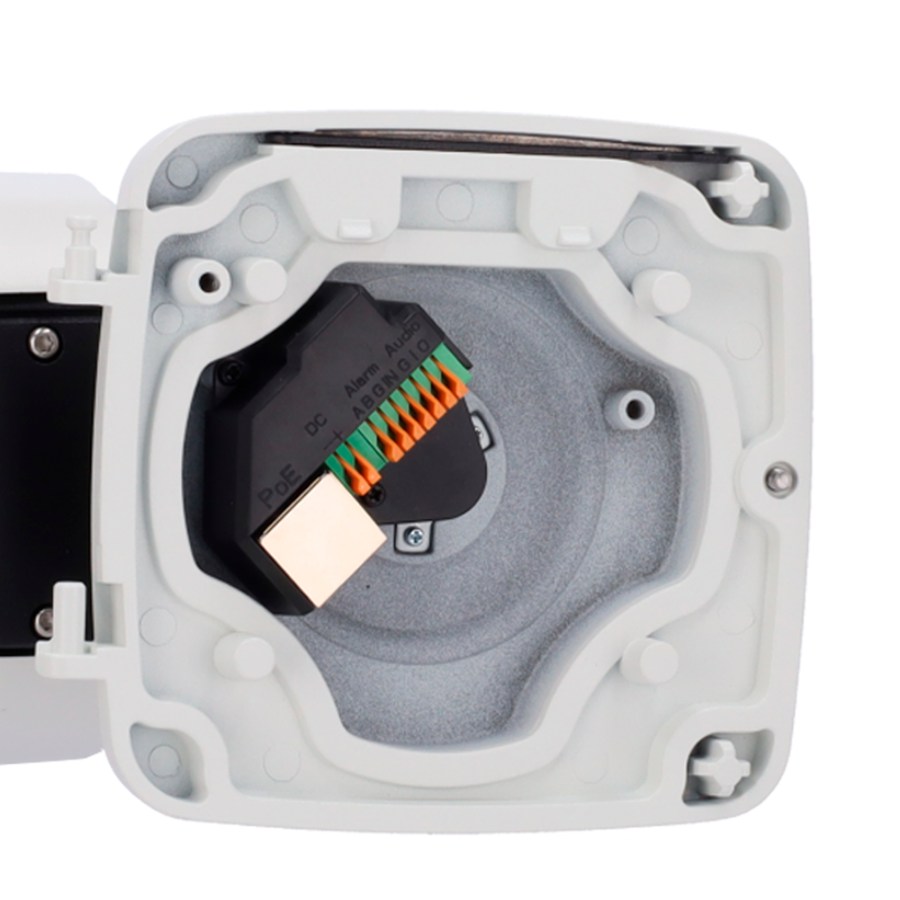

| Communication Interface | Ethernet 10/100M BaseT | 1 RS485 |
| Remote access | Web Browser, Smartphone App and Milesight Central Management System Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Certification | NDAA |
| Power | DC 12 V / MAX 8W, PoE+ IEEE802.3at |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 126 (W) X 134 (H) X 301 (D) mm |
| Weight | 1080 g |
