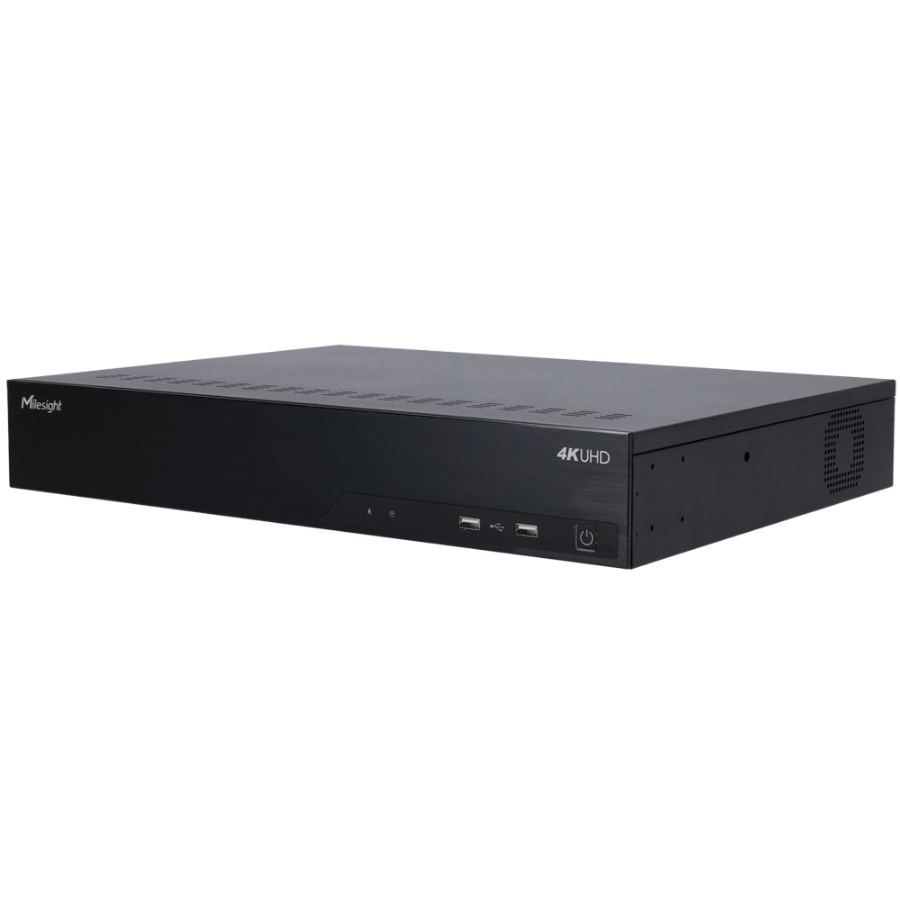

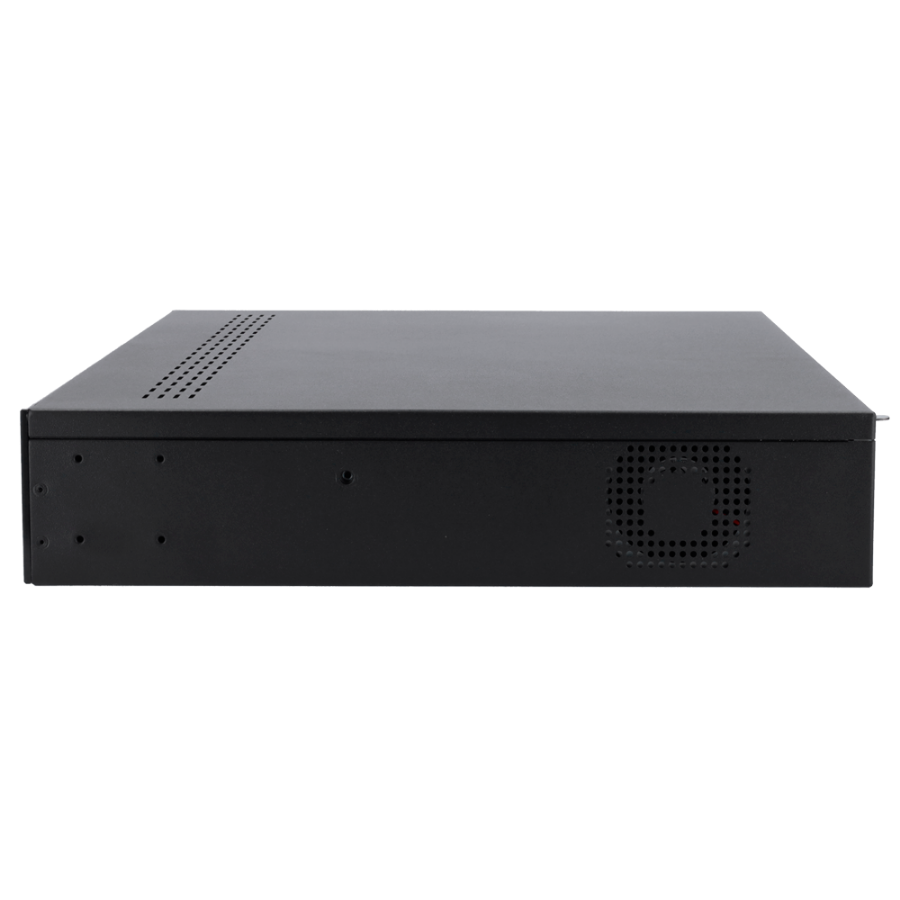

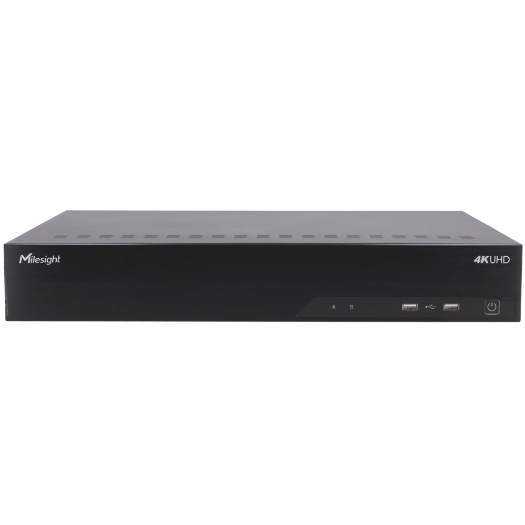

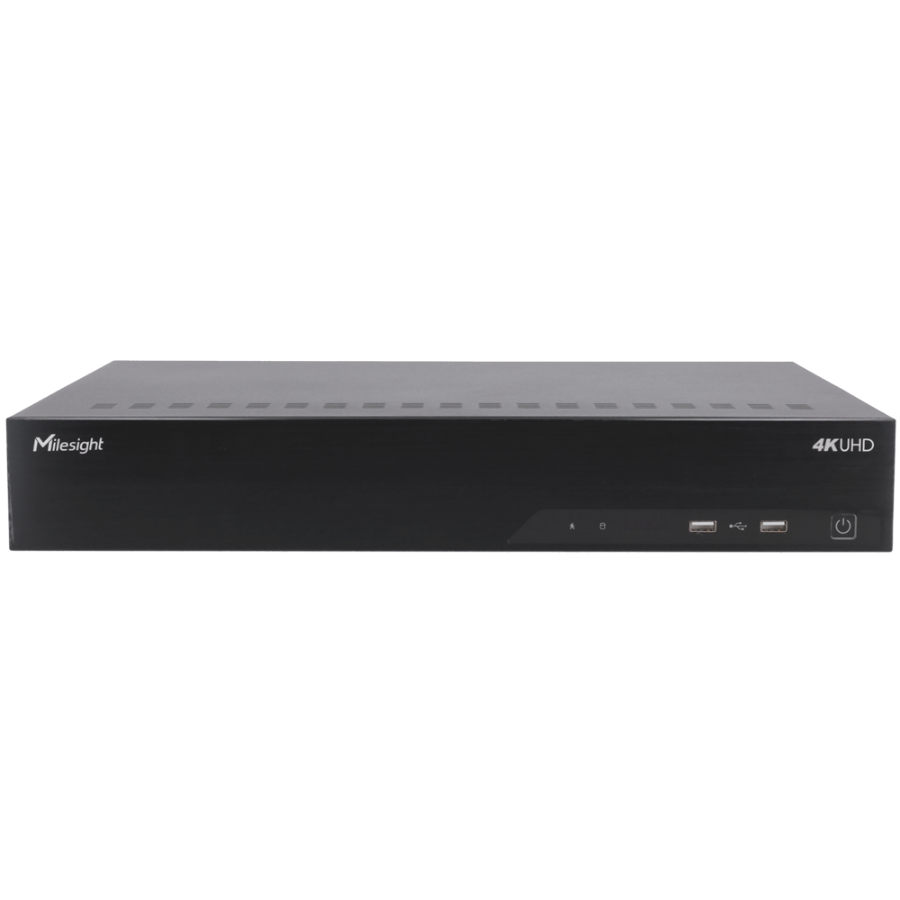

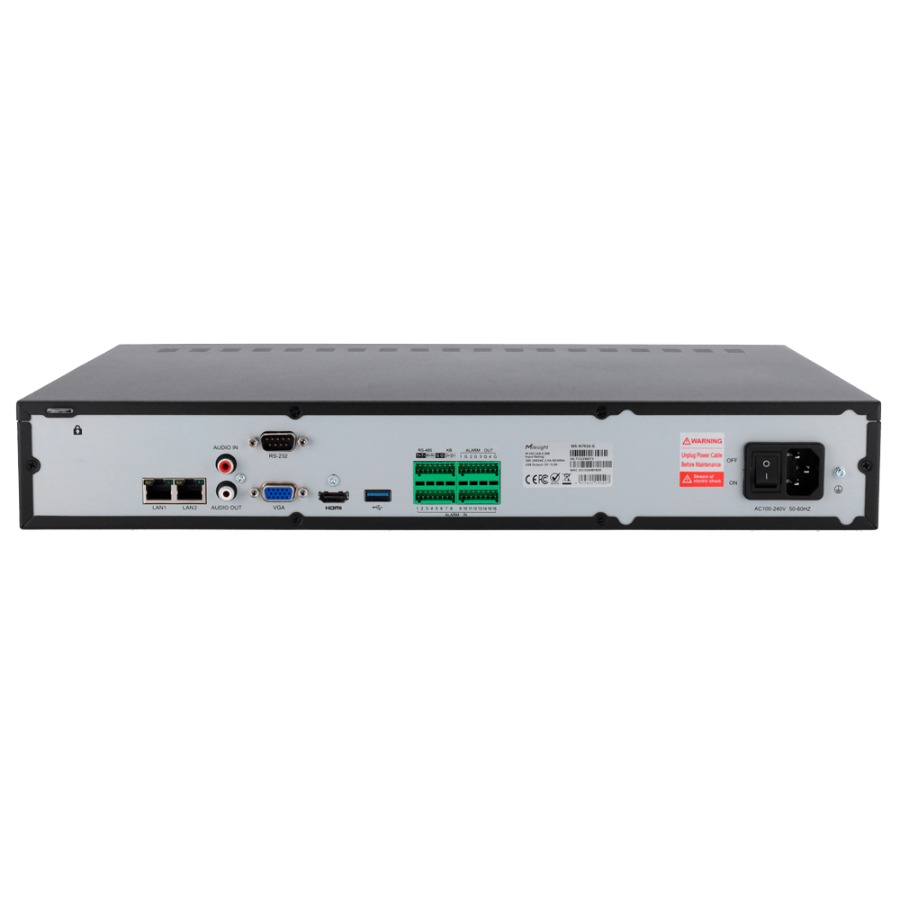

| Brand | Milesight |
| Inputs for IP cameras | LAN port up to 16 channels |
| IP compatible cameras | MILESIGHT (native protocol), ONVIF |
| Bidirectional audio | 1 input / 1 RCA output / via HDMI |
| Video outputs | 1 HDMI 4K, 1 VGA (Independent) |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | 3840x2160, 3840x2160, 1920x1080, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 160 Mbps downstream / 160 Mbps upstream |
| Main stream recording | 4x 8MP, 5x 6MP, 6x 5MP, 8x 4MP, 10x 3MP, 16x 1080p, 16x 720p [%VAR%] [%VAR%] |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Smart Features | Compatible with Milesight LPRs. License plate searches. |
| Alarms | 16 In / 4 Out |
| Recording method | Manual, programmed, motion detection |
| External Backup | USB memory / HDD USB / CD-RW USB / DVR-RW USB |

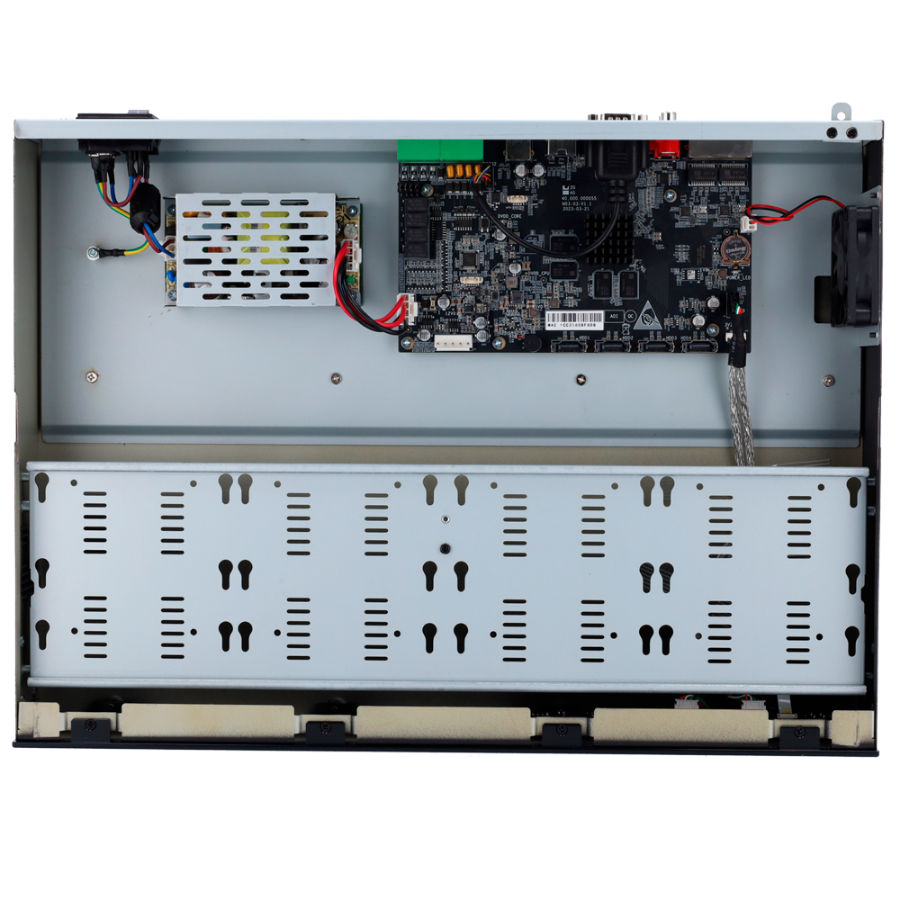

| Internal memory | 4 SATA HDD 3.5" of up to 10 TB (not included) |
| Disc recording mode | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Communication | 1 x USB 3.0; 2 x USB 2.0 / 2 x RJ45 (Ethernet) |
| Remote access | Web browser, Safire Control Center Smartphone App and PC Software |
| Power over Ethernet | Does not have |
| Power | AC 100V~240V ?15W (Without HDD) |
| Dimensions / weight | 66.8 (H) x 440 (W) x 320 (D) mm / 4.1 Kg |
