| Technology | LoRaWAN® |
| Frequency band | 868 MHz |
| Power Output | 16dBm Max. |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Type of gas detected | Methane (CH4) |
| Detection principle | Semiconductor sensor |
| Alarm level | 8% LEL |
| Alarm notification | Sound and light |
| Alarm volume | 85 dBA @1 meter |
| Service life | 5 years (in clean air) |
| Outputs | 1x Relay output: normally open, max. 250 VCA/10 A,1 x Solenoid valve output: 12 V, 100 pulse output of [%VAR%] ms |

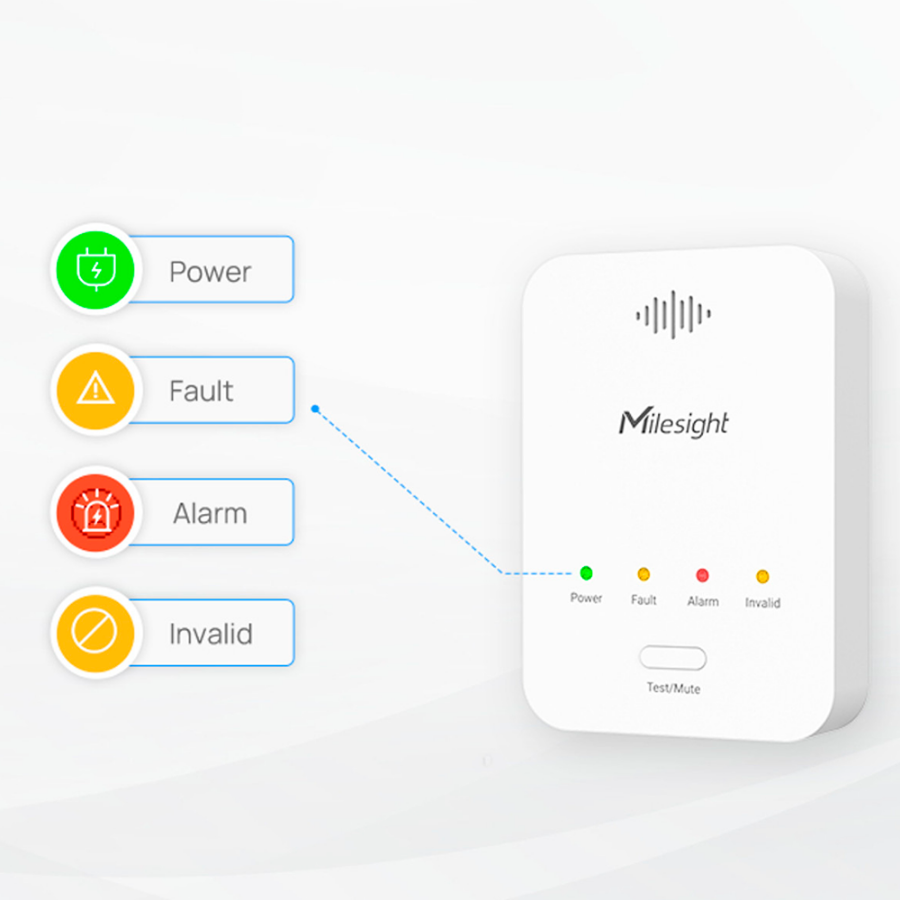

| LED indicators | Power (Green)Failure (Yellow)Alarm (Red)End of life (Yellow) |
| Power supply | 12VDC / 1A Jack Connector |
| Operating temperature | -10°C to 55°C |
| Environmental protection | IP30 |
| Dimensions | 120 x 85 x 32.5 mm |
