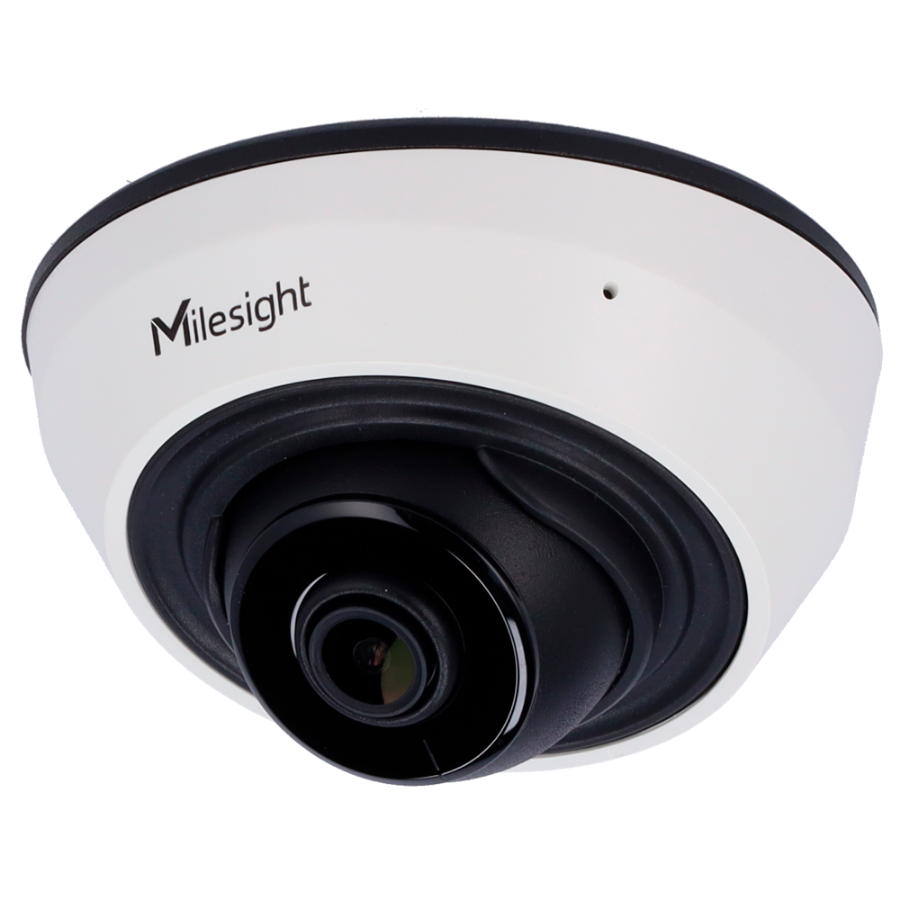

| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Extra Stream rate | 25fps@(704x576, 640x480, 640x360, 352x288) |
| Rate 3rd Stream | 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Lens | 2.8mm |
| FOV | H105° / D131° / V78° (2.8mm) |
| Minimum illumination | Colour: 0.008 Lux@F1.6B/W: 0 Lux with IR ON |
| Infrared Light | 20m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Advanced features | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, defog, AWB, IP address filtering, AGC, anti-flicker, corridor mode, debur |
| ROI | Up to 8 Areas |
| Intelligent analysis | Advanced motion detection, line crossing, loitering detection, region entry, region exit, object left, object removed |
| People counting and reporting | Counting of people entering and exiting |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD card, enable alarm output, SIP call, HTTP notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | MicroSD Card, Max 1TB |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Yes. Voice and video over IP |
| Remote access | Web browser, smartphone App and software Milesight Central Management System, Milesight VMS Enterprise |
| Interoperability | ONVIF (G/S/T Profile) |
| Power | DC12V / Max 5W (with IR ON), PoE IEEE802.3af |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40oC~+60oC |
| Dimensions | 97.8mm. (O) X 57.9mm. |
| Weight | 200g. |
