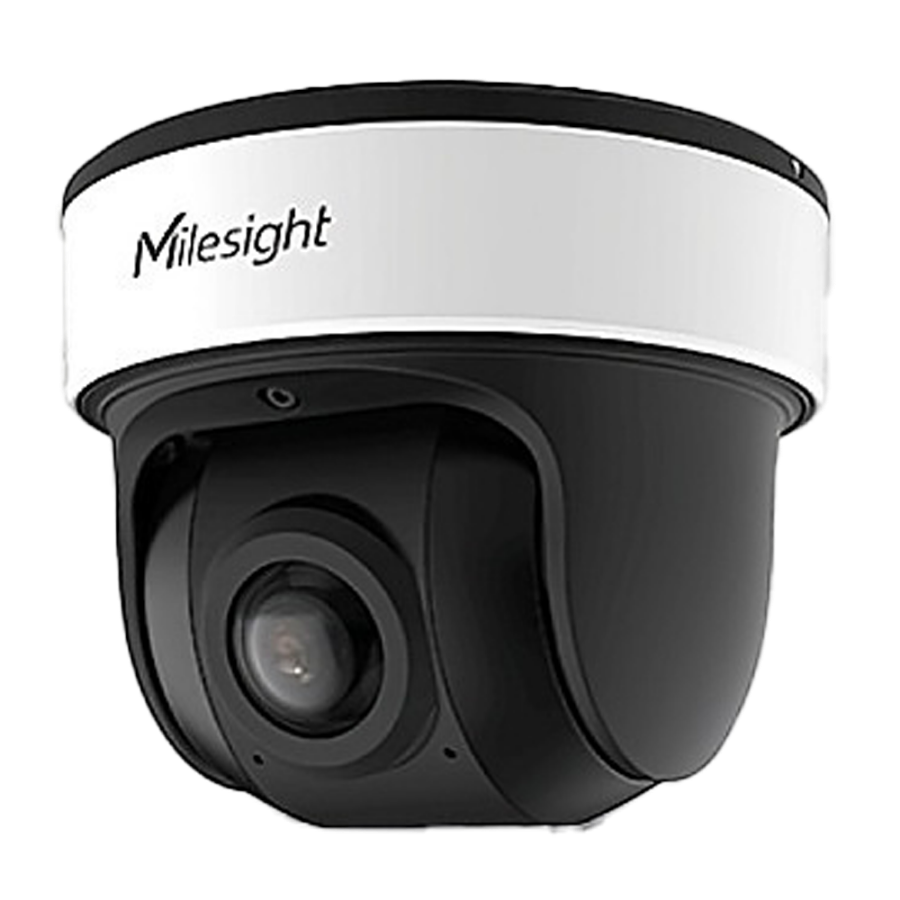

| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Stream rate | 15fps@(3840x2160, 3440x1936),25fps@(3200x1800), 30fps@(2880x1620,2560x1440, 1920x1080, 1280x720) |
| Extra Stream rate | 30fps@(704x576, 640x480, 640x360,320x240) |
| Rate 3rd Stream | 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Lens | 1.68mm@ F2.0 |
| FOV | H: 180°/ V:86° |
| IRIS Control | Auto |
| Minimum illumination | Colour: 0.01Lux@F1.2Colour: 0.012Lux@F2.0B/W: 0 Lux with IR ON |
| Infrared Light | 15 m |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Watermarking |
| ROI | Up to 8 Areas |
| Intelligent analysis | Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed |
| Face detection | Real-time face detection |
| People Counting & Reporting | People counting at entrances and exits. Supports up to 4 people counting regions |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Communication Interface | Ethernet Port 1xRJ45 10M/100M |
| Internal memory | MicroSD card, Max 256 GB |
| Alarms | 1/1 |
| Audio | 1/1 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Support. Voice and Video over IP |
| Remote access | Web Browser, Smartphone App, Milesight Central Management System Software and Milesight Enterprise Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Power | DC 12 V / MAX 8.3W(con IR ON), PoE+ IEEE802.3at |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Temp. operation | -40o C ~ +60o C |
| Dimensions | 95.8 (An) X 74(Al) X 158.5 (Fo) mm |
| Weight | 630 g |
