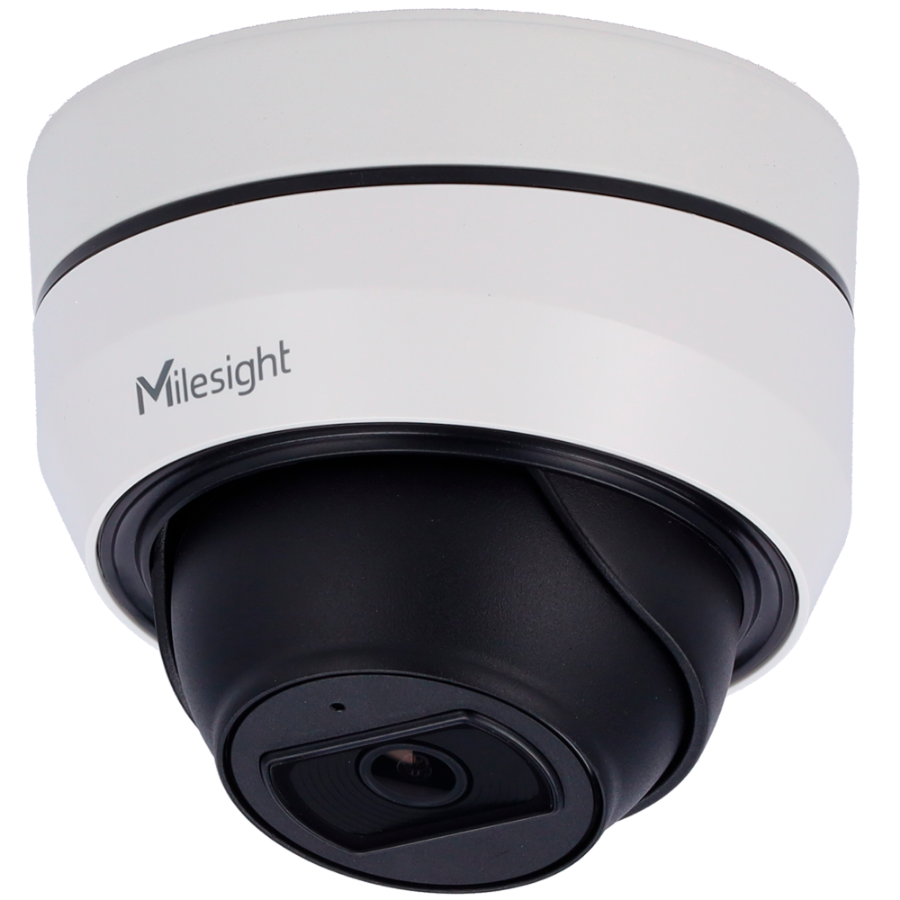

| Brand | Milesight |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream rate | 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Extra Stream rate | 25fps@(704x576, 640x480, 640x360, 352x288) |
| Rate 3rd Stream | 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Bitrate | 16 Kbps ~ 16 Mbps (CBR / VBR Adjustable) |
| Lens | 2.8mm. |
| FOV | H105° / D131° / V78° (2.8mm) |
| IRIS Control | Auto |
| Minimum illumination | Colour: 0.008Lux@F1.6B/W: 0Lux with IR on |
| Infrared Light | 25m. |
| Day / Night | Day / Night / Auto / Customizable / Programmable |
| Image improvements | Super WDR PRO (120 dB), BLC, HLC, 2D DNR, 3D DNR, Defog Function, AWB, EIS, IP Address Filtering, AGC, Anti Flicker, Corridor Mode, Watermarking |
| ROI | Up to 8 Areas |
| Intelligent analysis | Motion Detection, Line Crossing, Loitering Detection, Region Entry, Region Exit, Object Left, Object Removed |
| Trigger Event | Motion Detection, Exceptions, Alarm Inputs |
| Event Action | Upload Image to FTP, SMTP, MicroSD Card, Enable Alarm Output, SIP Phone, HTTP Notification |
| Communication Interface | Ethernet Port 1*RJ45 10M/100M |
| Internal memory | MicroSD card, Max 256 GB |
| Audio | Built-in microphone |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio bit rate | 16~256Kbps |
| SIP/VoIP | Support. Voice and Video over IP |
| Remote access | Web Browser, Smartphone App and Milesight Central Management System Software |
| Interoperability | ONVIF (G/Q/S/T Profile) |
| Power | PoE (802.3af) |
| Consumption | 5.8W max. (with IR ON) |
| Degree of protection | Waterproof IP67, Anti-vandal IK10 |
| Temp. operation | -40oC ~ +60oC |
| Dimensions | 108mm. (O) x 96.5mm. |
| Weight | 600g. |
| Compliance | NDAA |
