| Reference | LAAEE11010H1HEUK1 |
| Battery capacity | Up to 45 Ah |
| Supply voltage | 230 VAC or 115 VAC |
| Power supply | A 24 V DC 10.25 A (charge up to 45 Ah) |
| Certificates | EN54-2, EN54-4, EN54-13 |
| LCD screen | Colour 800 x 480 with resistive touch screen and automatic backlight dimming |
| Printer | of 40 columns, front-loading thermal (optional) |
| LED zone indicators | Up to 3 banks of 48 (144) (optional) |
| Software zones | 2000 |
| Software groups | 5000 |
| Event registration | 10.000 events, resolution of 1 second. Filterable and printable |
| Detection loops | From 2 to 8 expandable with (K758 card from 2 loops) |
| Detection loop current | 500 mA each |
| Siren circuits, | 4 each rated 2,5 A, 24 V DC, programmable |
| Auxiliary supply of 24 V 1 | 24 V DC with fuse of 500 mA |
| Auxiliary supply of 24 V 2 | 24 V DC with fuse of 500 mA |
| Default Relays Failure, | Fire, Alarm, Programmable 1 and Programmable 2 (all reprogrammable) |
| Programmable inputs | 3, activated by volt-free contacts. |
| Auxiliary serial port A | RS232 programmable |
| Auxiliary serial port B | RS232 programmable |
| Serial fire routing port (Ifam) | RS485 programmable |
| USB host port | USB type A |
| USB device port | USB type B |
| Dimensions | 420mm (W) x 585mm (H) x 195mm (D) |
| Material | Steel sheet 1,5 mm. |
| Finished | Epoxy powder coated. |
| Color - Lid and Box | BS 00 A 05 fine texture |
| Weight (kg) | 20 |
| Fire routing output | Supervised |
| Fire routing input | Supervised |
| Fault routing output | Supervised |
| Fault routing input | Supervised |
| Extinguisher outlet | Supervised |
| Fire extinguisher input | Supervised |
| Extinguisher fault input | Supervised |

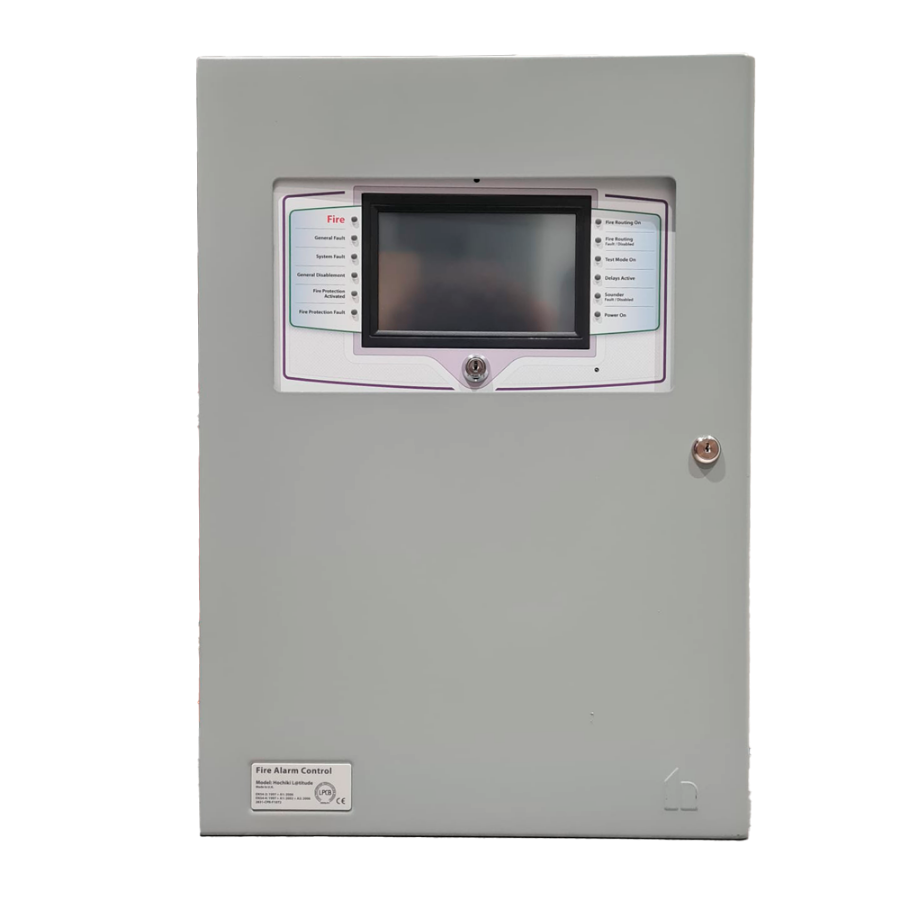

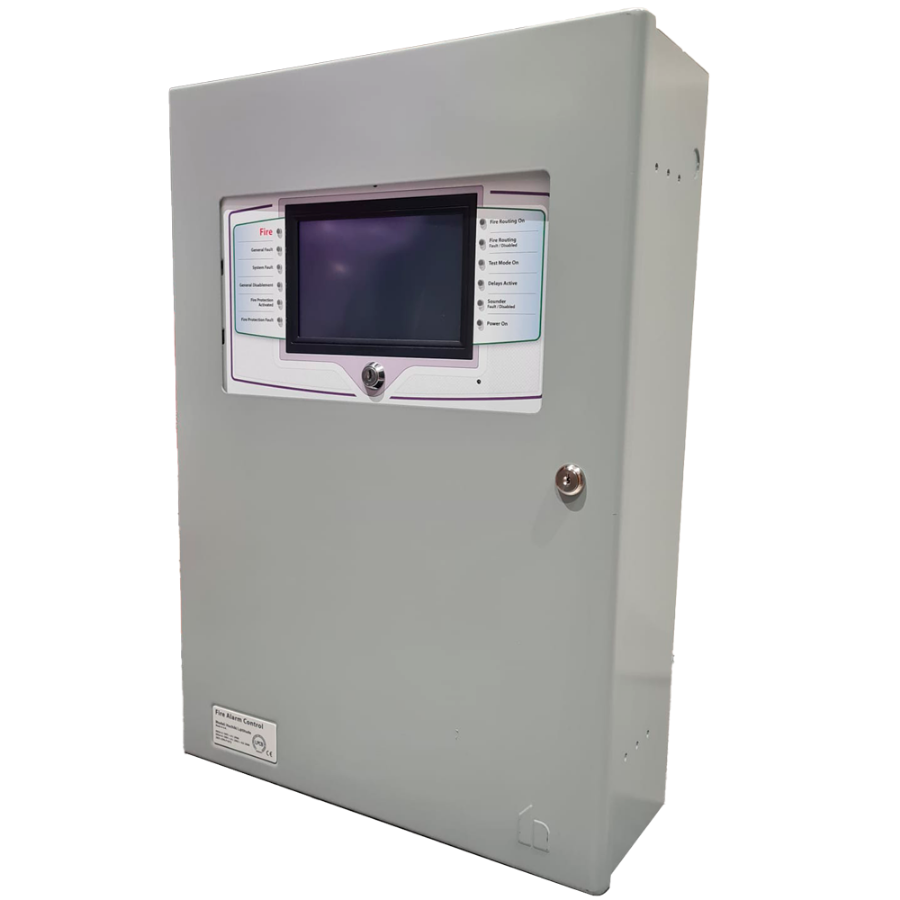

Hochiki's Latitude Fire Panel offers flexible fire detection control for medium to large facilities.
This versatile system supports from 2 expandable to 8 loops thanks to the K758, loop cards with capacity for up to 1.000 devices. Intuitive touch-screen interface simplifies operation and configuration. The panel has robust networking capabilities, allowing the integration of up to 127 panels. Latitude panel ensures accurate alarm management.
Compatible with Hochiki's wide range of ESP sensors, modules and alarm equipment, it provides a comprehensive fire protection solution.
The system's expandability and backward compatibility make it an ideal choice for both new installations and system upgrades.
