| Thermal sensor | 384x288 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 2 Megapixel |
| Minimum illumination (for optical part) | Colour: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance |
| Main Stream Flow | 384x288(50fps) Thermal / 1920x1080 (25fps) Optical |
| Extra Stream Flow | 384x288 (50fps) Thermal / 704x576 (25fps) Optical |
| Compression | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Lens | 10 mm (Term) |
| Viewing angle | 37.5°×28.6° (Therm) |
| Thermal sensitivity | < 40mK (0.05 o C) |
| Thermal measurement range | 20 ~ 50oC / High precision ± 0.3oC (Only using blackbody) |
| Spectral range | 8~14µm |
| Pixel Size | 17µm |
| Intelligent functions | Body temperature measurement |
| Features in Measurement | Up to 30 face detections in the same scene / Between 2 ~ 6 m. detection distance (ideal point 3~ 4 m) |
| Audio | Does not have |
| Alarm | 1 Relay (NA/NC) |
| Internal memory | Does not have |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS and NVR interface |
| Interoperability | ONVIF |
| Recommended Installation | 2 m of height |
| Power | 12VDC, 4W max. |
| Temp. operation | 0o C ~ +30o C |
| Degree of protection | Weatherproof IP66 |
| Dimensions | 293.9 mm (Fo) x 120.7 (An) x 119 (Al) mm |
| Weight | 2 kg |

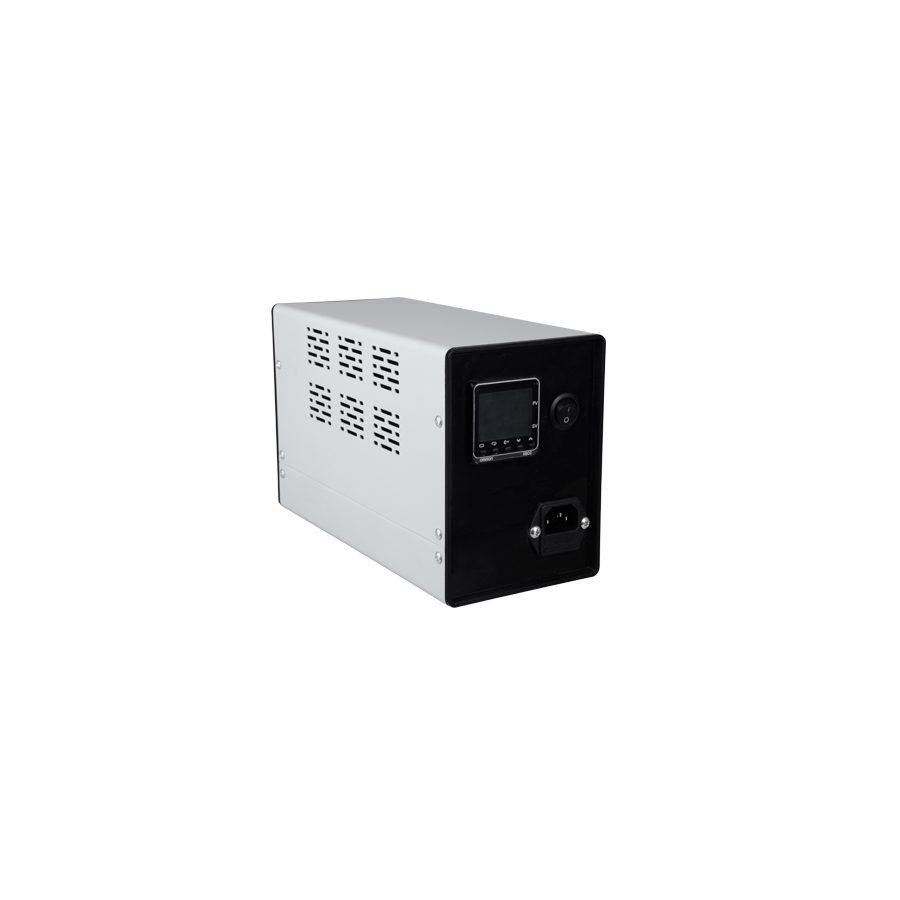

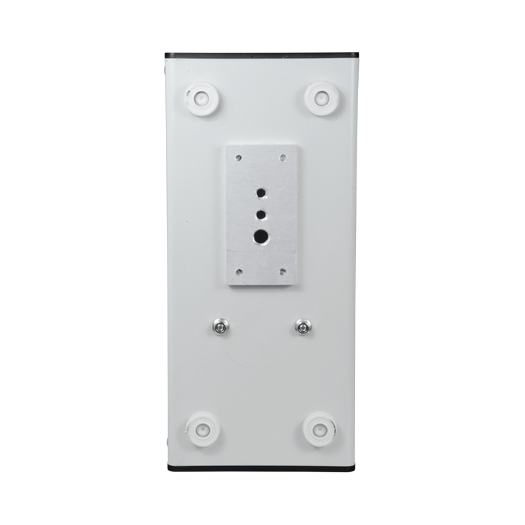

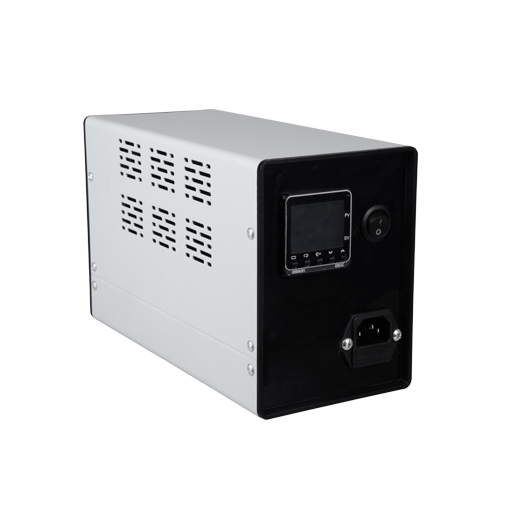

| Temperature range | 30oC ~ 50oC Adjustable |
| Temperature stability | ±(0.1-0.2)oC/ 30 min |
| Recommended Installation | 2 m max. from the ceiling (always inside the camera FOV) |
| Power | 220 VAC, 50 Hz (Max. 40W, nominal 25W) |
| Dimensions | 240 (D) x 150 (H) x 160 (W) |
