| Brand | Jade Bird |
| Type | Isolator |
| Operating voltage | DC 20 - 30 V |
| Connection | JBE communication bus 2-hilos, without polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Consumption in idle mode | so ? 0.25mA @27VDC |
| Active consumption | ? 15mA @27VDC |
| Maximum number of devices between insulators | 32 |
| Temp. of work | 0? ~ +40? |
| Temp. storage | -20? ~ +60? |
| ENVIRONMENT | ? 95% HR (40±2?) (no condensation or icing) |

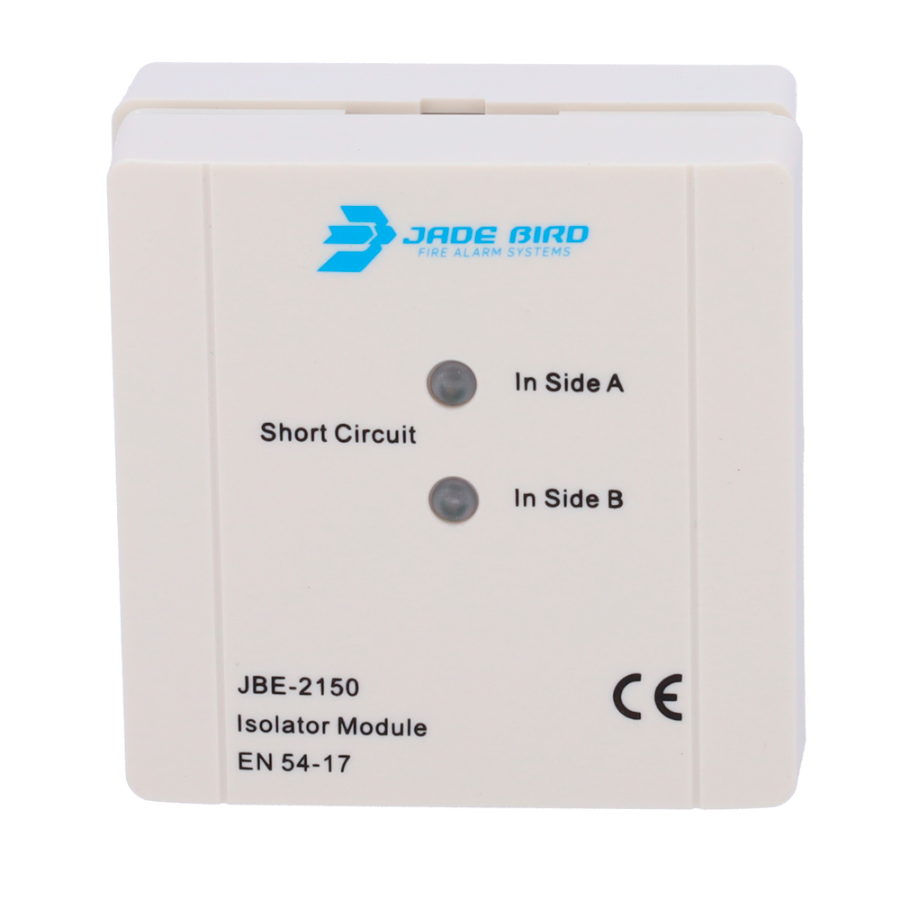

| Led indicator Orange (FAULT) | Rest: Both LEDs offA-side short circuit: Top LED onShort circuit B side: Lower LED on |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |

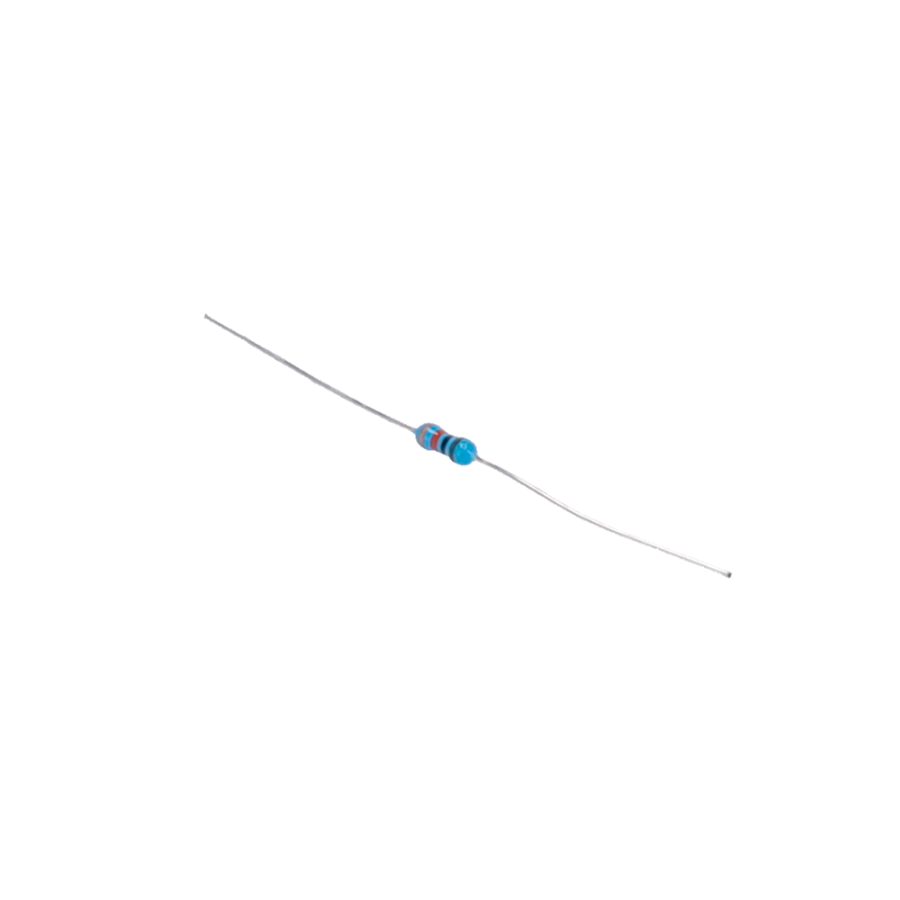

| Remote indicator | LED with or without series resistor (Rs <4 kOhm) |
| Certificado | EN 54-17:2005EN 54-17:2005/AC:2007 |
