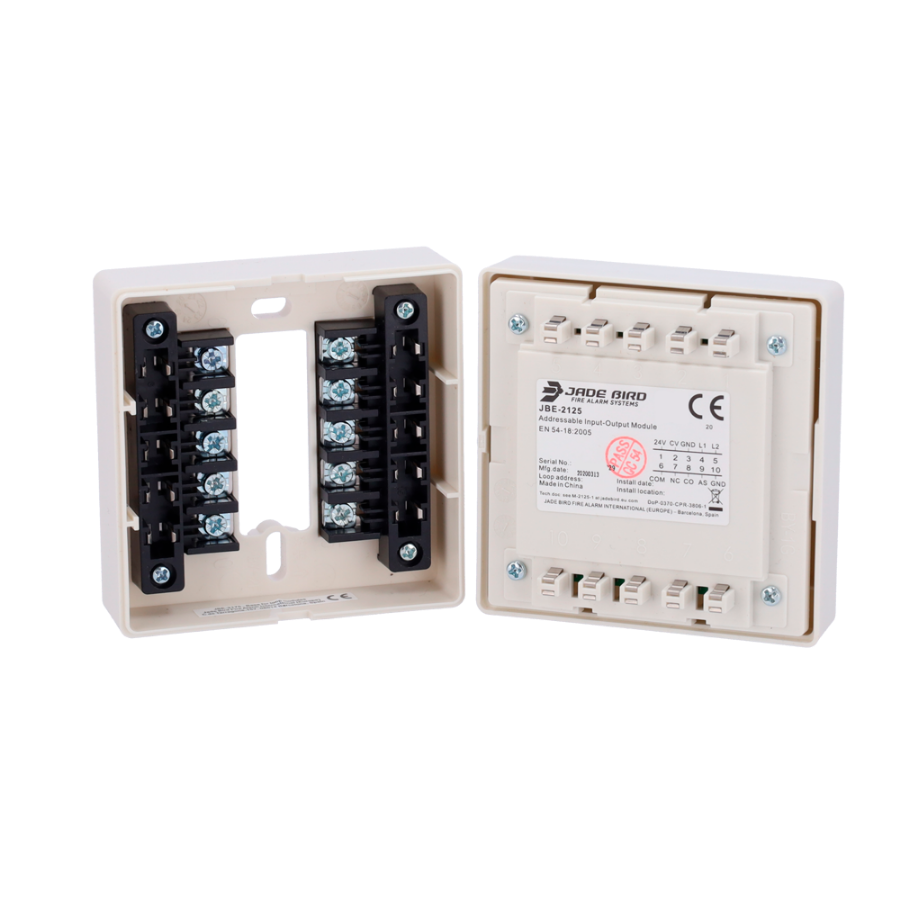

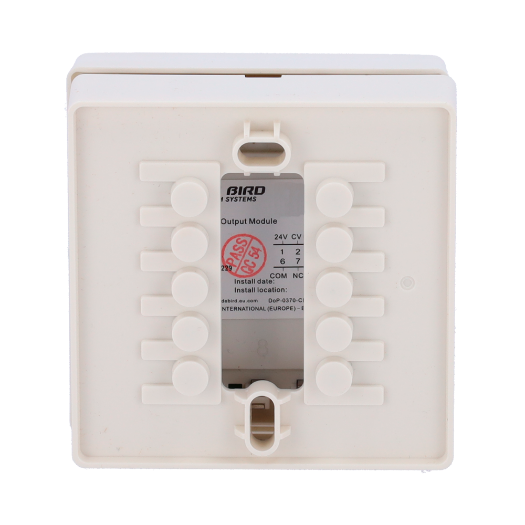

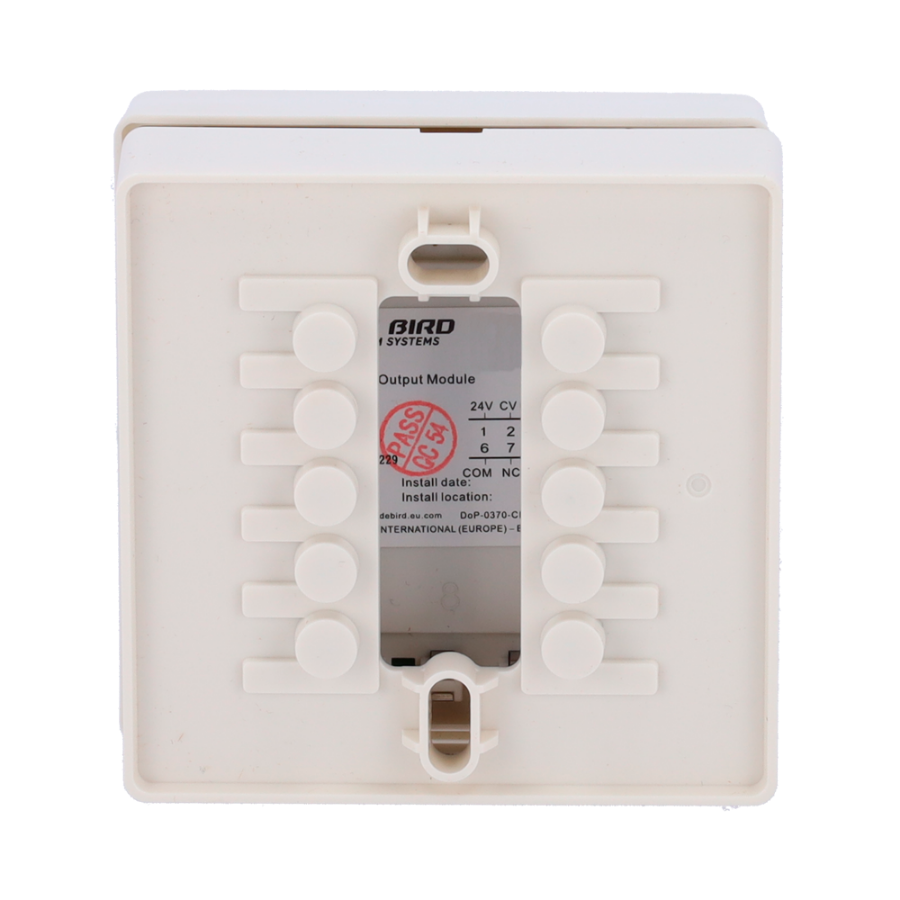

| Brand | Jade Bird |
| Type | Analog module of 1 output with confirming input |
| Operating voltage | DC 16 - 30 V (Pulse Width JBE Protocol) |
| Connection | JBE communication bus 2 wires, no polarity |
| Wired | Twisted pair without braid 0.5 - 2.5 mm2 |
| Consumption in idle mode | ?0.25 mA @24 V |
| Active consumption | ?1 mA @24 V |
| Output | Maximum 1 To @24V (supervised output mode) |
| Relay contacts | 2 A @30 V DC (Relay output mode) |

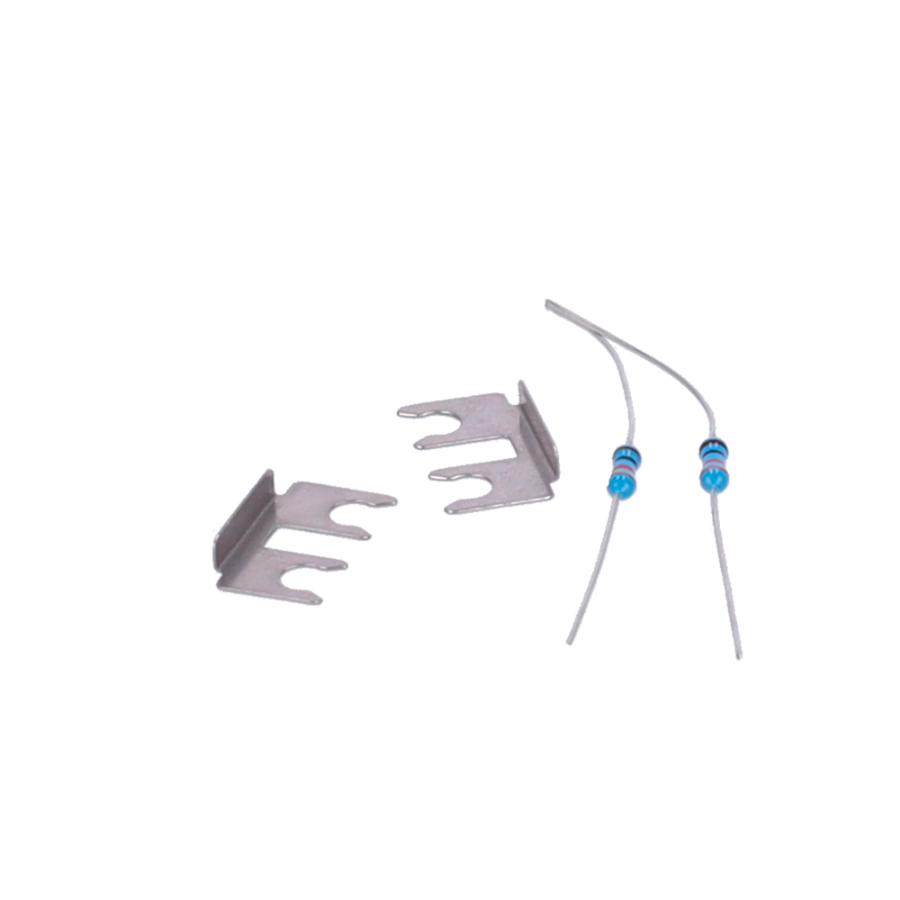

| Resistance EOL ent. | 10 k? |
| EOL resistance salt. | 10 k? |
| Temp. of work | 0? ~ +40? |
| Temp. storage | -20? ~ +60? |
| ENVIRONMENT | ? 95% HR (40±2?) (no condensation or icing) |
| Address | Routing tool JBE-AT1 |
| Address range | 1-200 |

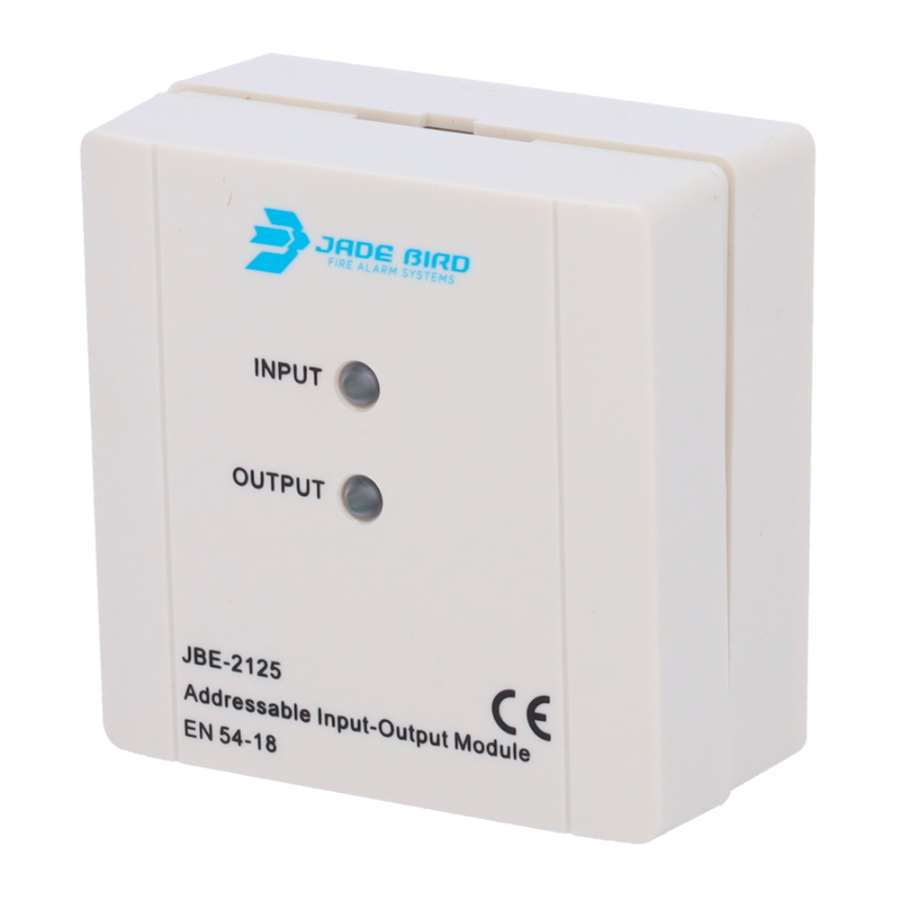

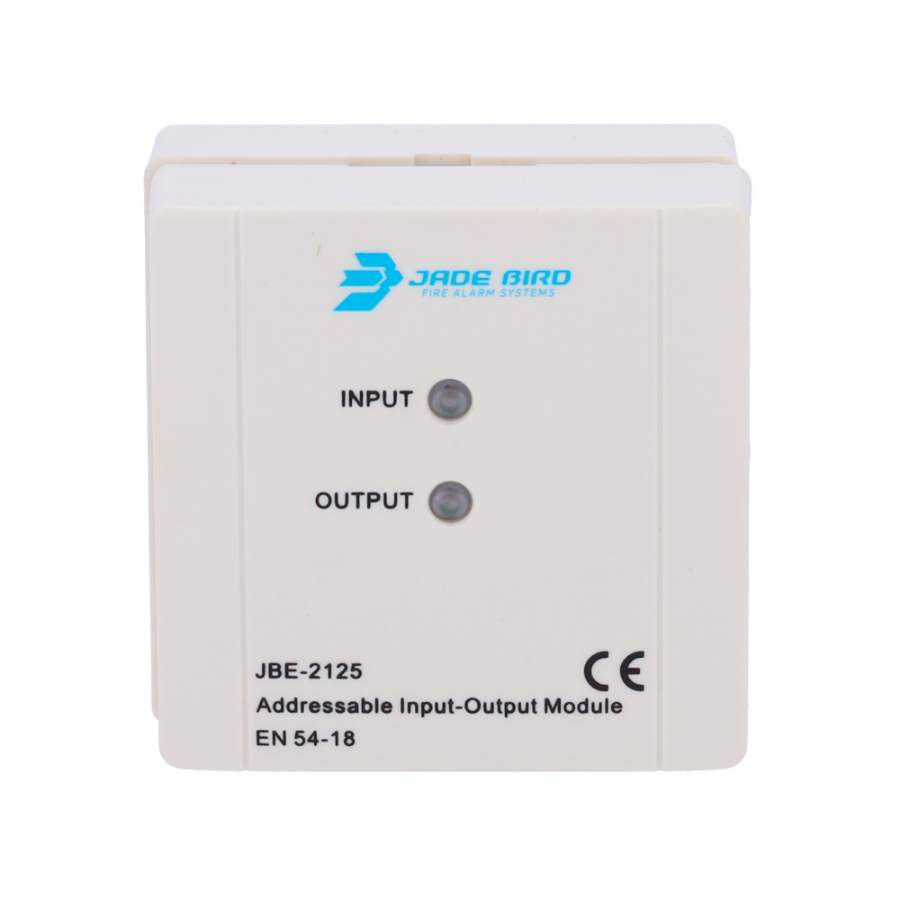

| Red LED indicators (Supervised departure) | IP40 Sleep: "Input" and "Output" are blinkingOutput Activation: "Output" fixed onConfirmation: "Input" fixed onMalfunction Input: "Input" off, "Output" offblinksFault Output 24V: "Input" and "Output" |
| Red LED indicators (Dry relay output) | Rest: "Input" blinking, "Output" offMalfunction: "Input" and "Output" off |
| Dimensions | 85×85x41 mm (length x width x height) |
| Weight | 0.1 kg (including base) |
| IP Rating | IP40 |
| Certified | EN 54-18:2005EN 54-18:2005/AC:2007 |
