| Brand | Jade Bird |

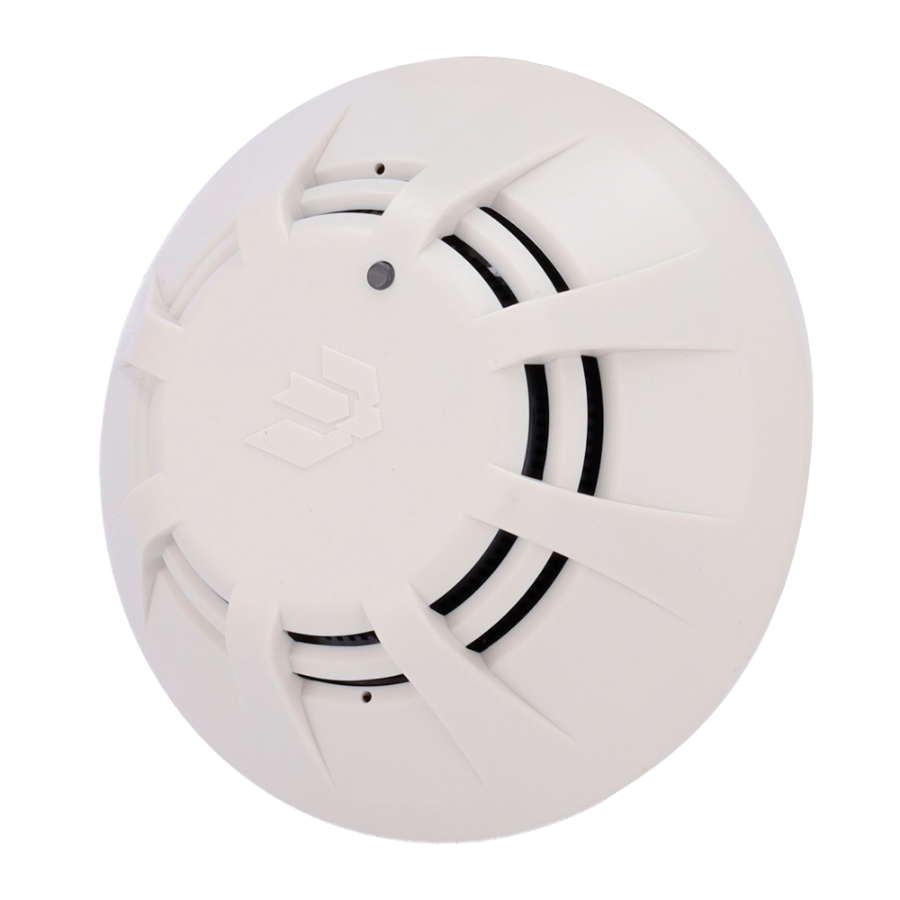

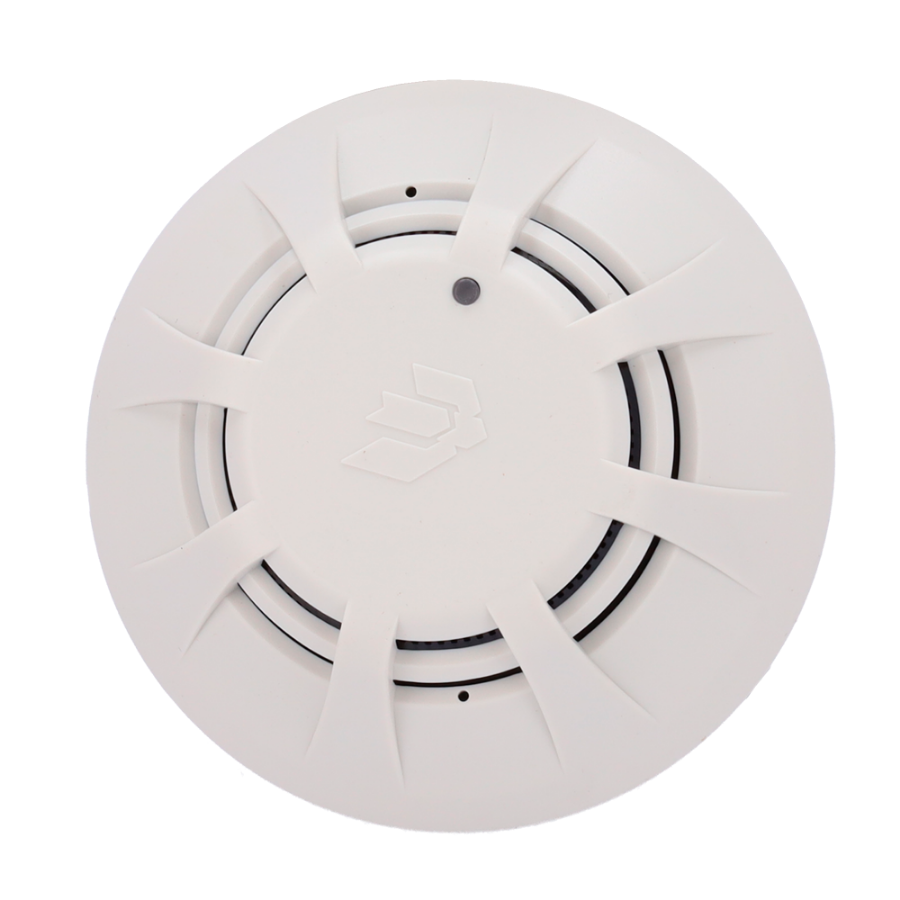

| Type | Optical Detector |
| Sensitivity | Adjustable in 3 levels |
| Operating voltage | 16-30 VDC |
| Connection | JBE communication bus 2 wires, no polarity |
| Wired | Twisted pair without mesh 0.5 - 2.5 mm2 |
| Consumption in idle mode | ?0.3mA @24 V |
| Consumption in alarm mode | ?1 mA @24 V (up to 8 mA of remote indicator) |
| Temp. of work | -10 to +60oC |
| Temp. storage | -20 to +60oC |
| Humidity | ? 95% HR (40 ±2oC) (no condensation) |
| Address | Through the JBE-AT1 addressing tool |
| Address range | 1-200 |
| Coverage | 60 to 80 m2 |
| Led indicator | Rest: Blinking with loop pollingAlarm: Fixed ignition |
| Dimensions (OxH) | 100 mm × 46 mm |
| Weight | 0,1 Kg |
| Protection Grade | IP40 |

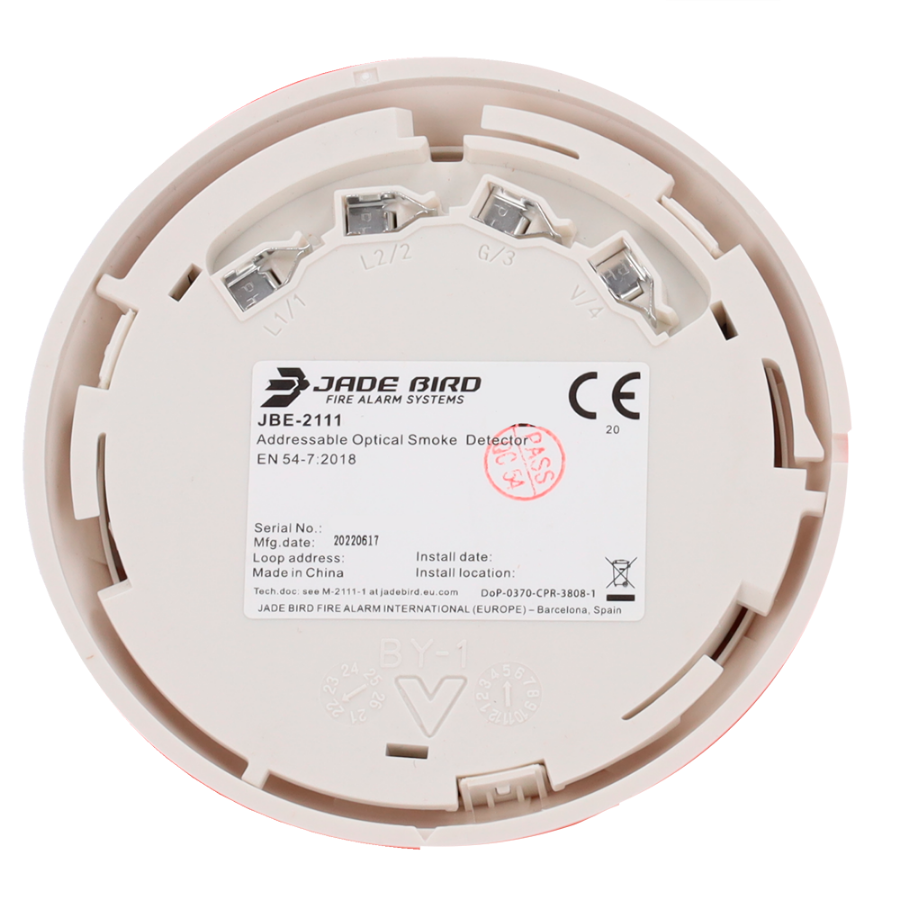

| Supported bases | JBE-2160 for installation without remote indicatorJBE-2165 for installation with remote indicator |
| Remote indicator | LED with or without series resistor (R <4K?) |
| Certificado | EN 54-7:2018 |
